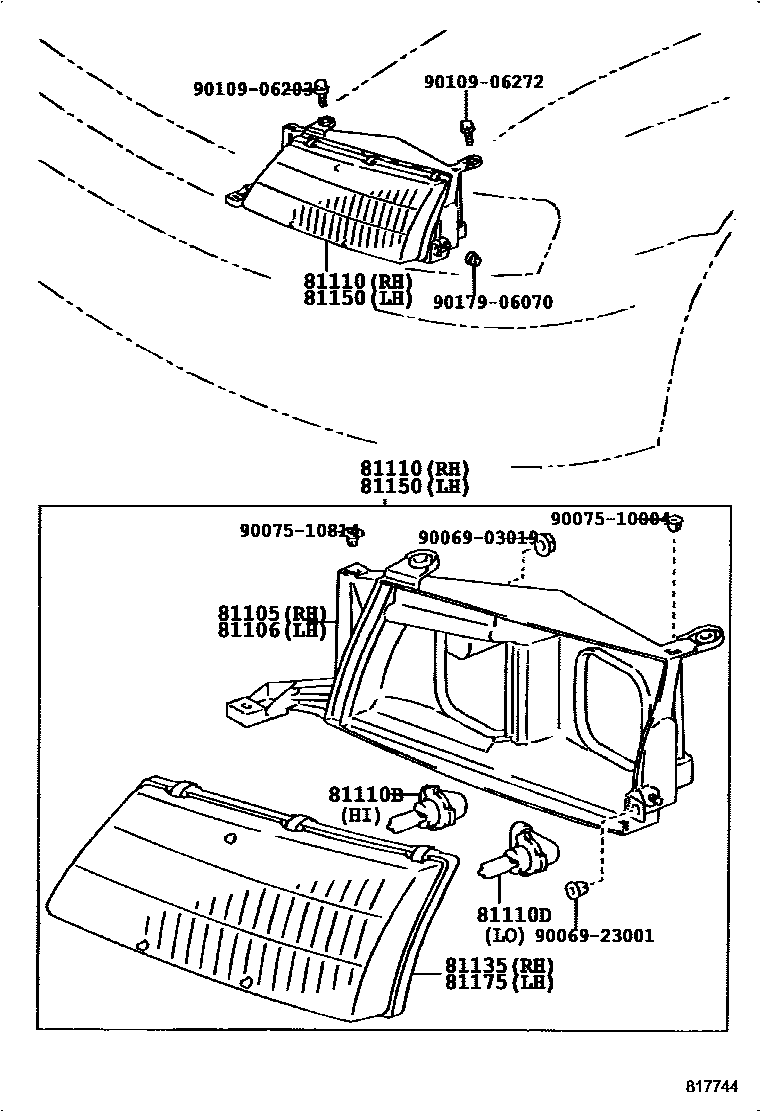

Toyota AVALON — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
12V 65W
81110DBULB(FOR HEADLAMP, NO.2)
12V 51W
81135UNIT ASSY, HEADLAMP, RH
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
9006903019
main90069-03019
9006923001
main90069-23001
9007510004
main90075-10004
9007510814
main90075-10814
9010906203
main90109-06203
9010906272
main90109-06272
9017906070
main90179-06070
15 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota AVALON
This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota AVALON. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
