1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P060i202008-202107

main22030-F0010i202008-202107

main22030-F0020i201805-202008

22271GASKET, THROTTLE BODY

main22271-0P020i202008

main22271-25010i202008-202107

(J)

main22271-F0010i202008-202107

(L)

main22271-F0020i202008

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-0P010i201804-202008

main23101-F0010i201805-202008

23191FLANGE, FUEL PUMP

main23191-25050i201805-202008

main23191-F0010i202008-202107

23214APROTECTOR, FUEL PUMP

main23214-0P010i202008

main23214-F0020i202008-202107

23224DGASKET, FUEL PUMP SPACER

main23224-0P010i202008-202108

main23224-0P011i202205

main23224-F0010i201805-202008

main23224-F0011i202111

23250INJECTOR ASSY, FUEL

main23209-09330×6i202008

NO.1

main23209-0P090-01×6i201804-202008

MARK 1,NO.2,REFER R/M

main23209-0P090-02×6i202008

MARK 2,NO.2,REFER R/M

main23209-0P090-03×6i202008

MARK 3,NO.2,REFER R/M

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011×6i201804-201910

NOK

main90301-07037×4i202008-202107

(J)

main90301-A0036×4i201805-202008

main90301-A0040×6i201910-202008

DENSO

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-F0010-01×4i202008-202107

MARK 1,REFER REPAIR MANUAL

main23209-F0010-02×4i202008-202107

MARK 2,REFER REPAIR MANUAL

main23209-F0010-03×4i202008-202107

MARK 3,REFER REPAIR MANUAL

main23209-F0010-04×4i202008-202107

MARK 4,REFER REPAIR MANUAL

main23209-F0010-05×4i201805-202008

MARK 5,REFER REPAIR MANUAL

main23209-F0010-06×4i202008

MARK 6,REFER REPAIR MANUAL

main23209-F0010-07×4i202008

MARK 7,REFER REPAIR MANUAL

main23209-F0010-08×4i202008

MARK 8,REFER REPAIR MANUAL

main23209-F0010-09×4i202008-202107

MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29175×4i202104

(J)

main23209-F9000×4i201805-201907

main23209-F9080×4i202104

(L)

23255ASEAL, FUEL INJECTOR

main23255-0P010×6i202008

main23255-25010×4i202008

(J)

main23255-31020×6i201804-201910

main23255-F0010×4i202008-202107

(L)

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i201812-202008

(J)

main23256-31010i202008-202108

NO.2

main23256-F0010×6i202008

NO.1

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31010i202008-202108

NO.2

main23258-31020×6i202008-202108

NO.1

main23258-36010×4i202008-202107

23291INSULATOR, INJECTOR VIBRATION

main23291-0P010×6i201804-202008

main23291-0V020×4i202008-202107

23291AINSULATOR, INJECTOR VIBRATION

main23291-28020×6i201804-202008

main23291-31020×4i202008

23470LIFTER ASSY, FUEL PUMP

main23470-F0010i201805-202008

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202008

(J)

main23477-31020i201804-202008

main23477-F2010i202008

(L)

23695ACLAMP, NOZZLE HOLDER

main23695-25010×4i201805-202008

main23695-31020×6i201804-202008

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31210i202008-202108

main23801-F0010i201805-202006

main23801-F0011i202008

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-F0021i201805-201907

main23814-F0022i201908-202008

main23814-F0023i202108

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-25010×2i202008-202107

main90561-08023×4i202008-202108

23814BPIPE, FUEL DELIVERY

main23814-25010i201805-202008

main23814-25011i202211

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0P050i201804-202008

main23841-31070i202008

23841KCLAMP, FUEL PIPE

main23841-F0010i202008

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-F2010i201805-202008

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i201805-202008

23901TUBE SUB-ASSY, FUEL

main23901-F0011i202008-202108

main23901-F0020i201805-201901

main23901-F0021i201902-201905

main23901-F0022i201906-202008

23910ATUBE SUB-ASSY, FUEL

main23901-F0110i201805-201905

main23901-F0111i201906-202008

7701

8404

90105A0293

main90105-A0293

90105A0300

main90105-A0300

90105A0338

main90105-A0338

90105A0354

main90105-A0354

90105A0400

main90105-A0400

90105A0411

main90105-A0411

9030105013

main90301-05013

9030131016

main90301-31016

90301A0040

main90301-A0040

9052014004

main90520-14004

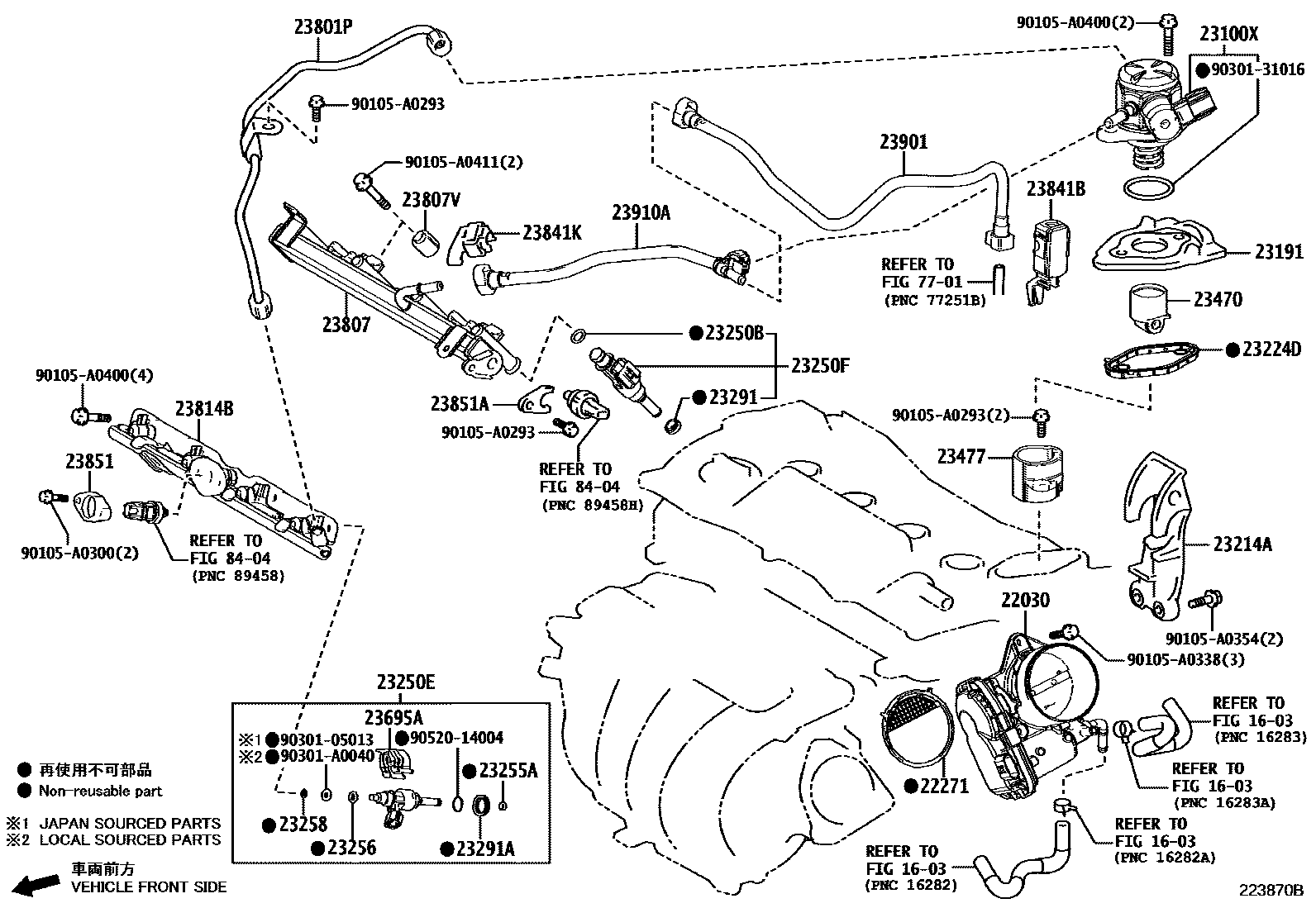

Toyota AVALON — FUEL INJECTION SYSTEM
