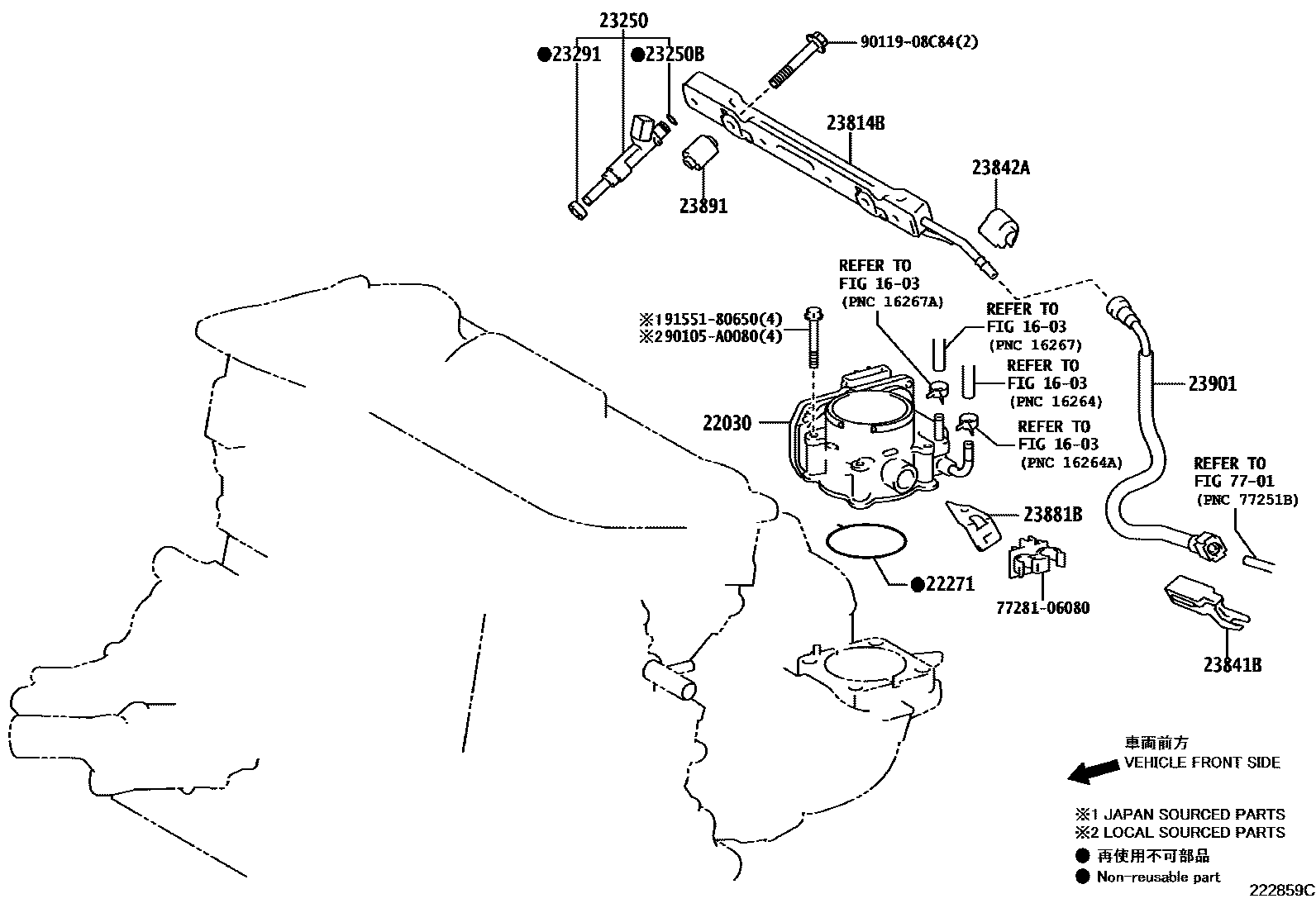

Toyota AVALON — FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
(L),*288
*107,(J),*288
22271GASKET, THROTTLE BODY
*288
23250INJECTOR ASSY, FUEL
*288
(L)
(J)
*107
23250BRING, O(FOR FUEL INJECTOR)
(J)
*107,(J),*288
(L),*288
(L)
23291INSULATOR, INJECTOR VIBRATION
(L),*288
(J),*288
23814BPIPE, FUEL DELIVERY
*107
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23881BBRACKET, FUEL HOSE
23891SPACER, FUEL DELIVERY
*288
23901TUBE SUB-ASSY, FUEL
7701
7728106080BRACKET, FUEL MAIN TUBE, NO.1
main77281-06080
90105A0080
main90105-A0080
9011908C84
main90119-08C84
9155180650
main91551-80650
17 parts on this diagram · 2 diagrams in section
