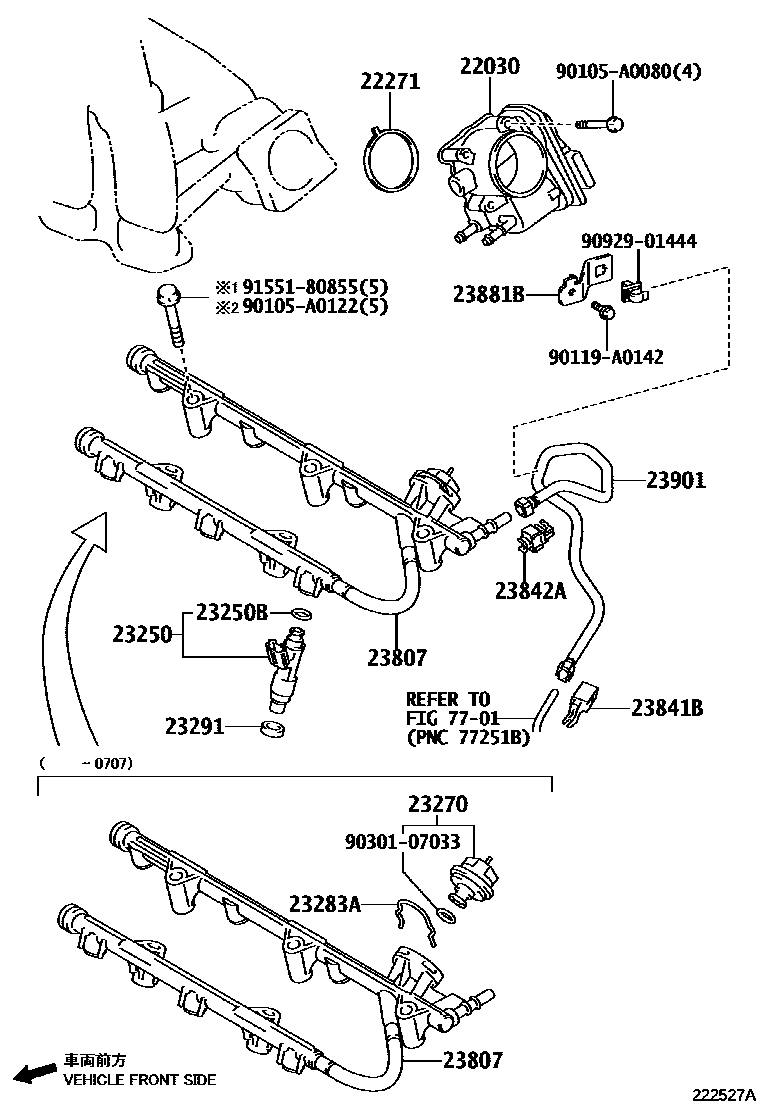

Toyota AVALON — FUEL INJECTION SYSTEM

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P050i2GRFE..GSX30200601-200707

(L)

main22030-31030i2GRFE..GSX30200501-200601

22271GASKET, THROTTLE BODY

main22271-0P020i2GRFE..GSX30201003

main22271-31040i2GRFE..GSX30200601-200707

(J)

23250INJECTOR ASSY, FUEL

main23209-0P040×6i2GRFE..GSX30200601-200707

(L)

main23209-31050×6i2GRFE..GSX30..XL200707

(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFE..GSX30..LIMD,XLS200707-201003

main90301-A0037×6i2GRFE..GSX30201204

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i2GRFE..GSX30200501-200707

sub23270-31080

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i2GRFE..GSX30200501-200707

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GSX30200501-200707

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-0P020i2GRFE..GSX30..LIMD,XLS200707-201003

main23807-0P021i2GRFE..GSX30201109

main23807-0P040i2GRFE..GSX30200601-200707

(L)

main23807-31040i2GRFE..GSX30200501-200707

(J)

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0P010i2GRFE..GSX30200501-200502

sub23841-21050

main23841-31070i2GRFE..GSX30200910-201003

main23841-AD010i2GRFE..GSX30200505-200707

main23842-21010i2GRFE..GSX30200502-200504

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31040i2GRFE..GSX30200501-200707

23881BBRACKET, FUEL HOSE

main23881-AD010i2GRFE..GSX30200501-200707

23901TUBE SUB-ASSY, FUEL

main23901-0P040i2GRFE..GSX30201003-201210

main23901-AD010i2GRFE..GSX30200501-200508

main23901-AD011i2GRFE..GSX30200508-200707

7701

90105A0080

main90105-A0080

90105A0122

main90105-A0122

90119A0142

main90119-A0142

9030107033

main90301-07033

9092901444

main90929-01444

9155180855

main91551-80855

19 parts on this diagram · 1 diagram in section
