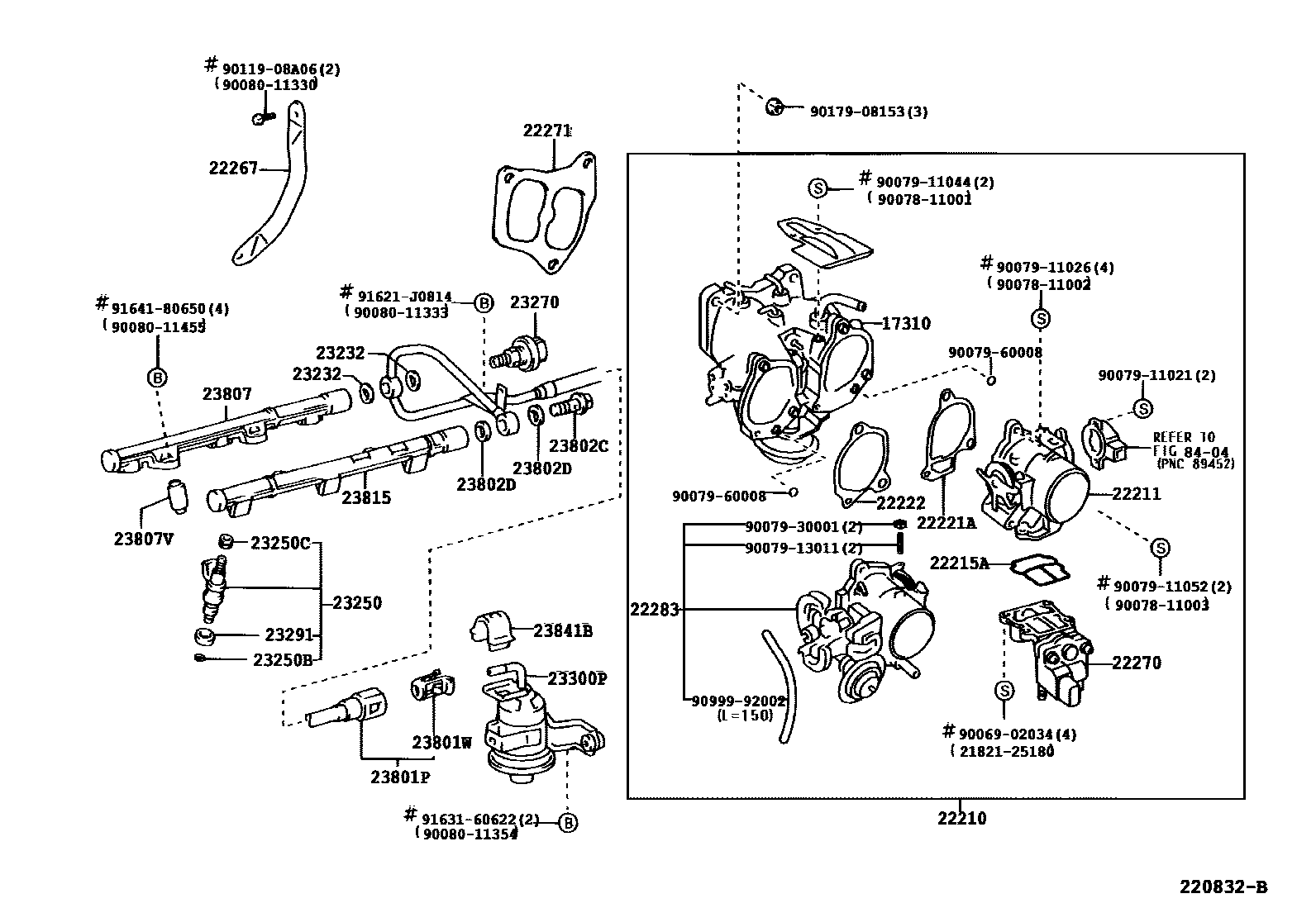

Toyota AVALON — FUEL INJECTION SYSTEM
17310VALVE ASSY, INTAKE AIR CONTROL, NO.1
22211BODY, THROTTLE
22215AGASKET, IDLE SPEED CONTROL VALVE
(L)
(J)
22221AGASKET, INTAKE AIR CONTROL VALVE, NO.1
(L)
(J)
22222GASKET, INTAKE AIR CONTROL VALVE, NO.2
(L)
(J)
22267BRACKET, THROTTLE BODY
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
(L)
(J)
22271GASKET, THROTTLE BODY
22283BODY, THROTTLE, NO.2
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23801PPIPE SUB-ASSY, FUEL, NO.1
23801WCLIP, FUEL TUBE CONNECTOR
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23815PIPE, FUEL DELIVERY, NO.2
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
8404ELECTRONIC FUEL INJECTION SYSTEM
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9006902034
main90069-02034
9007811001
main90078-11001
9007811002
main90078-11002
9007811003
main90078-11003
9007911021
main90079-11021
9007911026
main90079-11026
9007911044
main90079-11044
9007911052
main90079-11052
9007913011
main90079-13011
9007930001
main90079-30001
9007960008
main90079-60008
9008011330
main90080-11330
9008011333
main90080-11333
9008011354
main90080-11354
9008011455
main90080-11455
9011908A06
main90119-08A06
9017908153
main90179-08153
9099992002
main90999-92002
91621J0814
main91621-J0814
9163160622
main91631-60622
9164180650
main91641-80650
48 parts on this diagram · 4 diagrams in section
FUEL INJECTION SYSTEM for Toyota AVALON
This section contains 75 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota AVALON. Key components include: VALVE ASSY, INTAKE AIR CONTROL, NO.1, BODY ASSY, THROTTLE, BODY, THROTTLE, GASKET, IDLE SPEED CONTROL VALVE, GASKET, INTAKE AIR CONTROL VALVE, NO.1.
