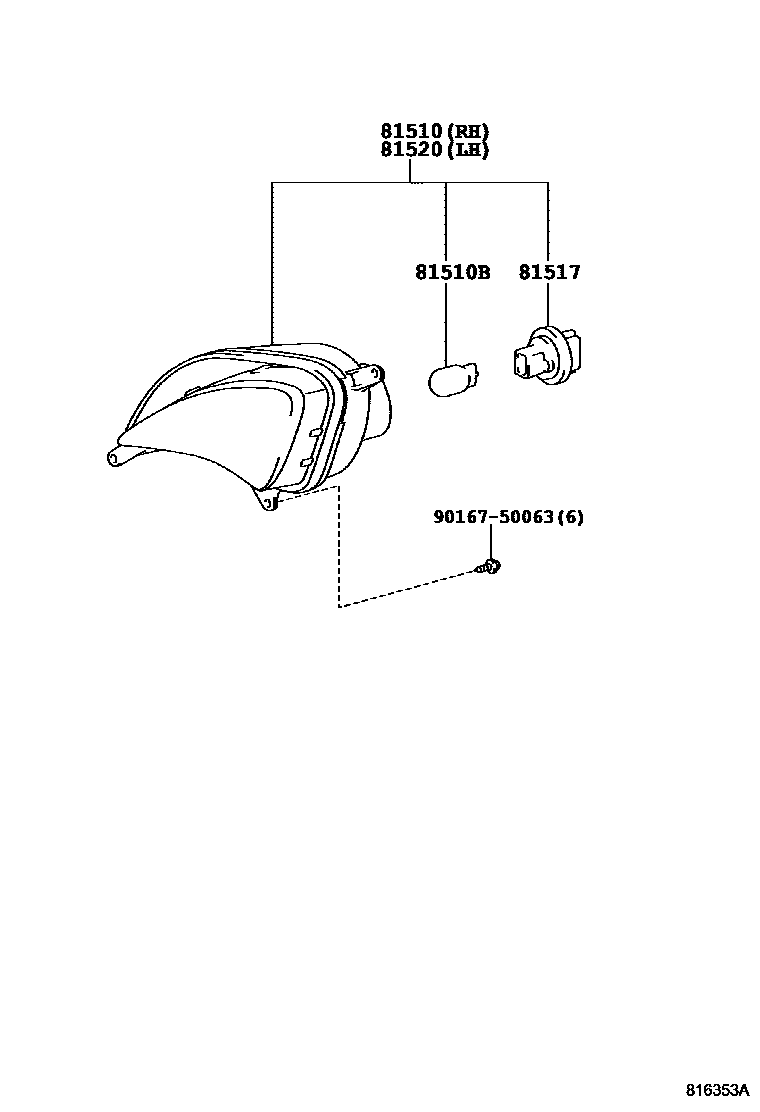

Toyota AVALON — FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-07010iAVX40,GSX40201210-201510

main81510-07020iAVX40,GSX40201510-201601

sub81510-07021

main81510-07021iAVX40,GSX40201602

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15025iAVX40,GSX40201210-201510

12V 28/8W,AMBER

81517SOCKET, FRONT TURN SIGNAL LAMP

main81128-06470iAVX40,GSX40201210-201602

main81128-08060iAVX40,GSX40201602

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-07010iAVX40,GSX40201210-201510

main81520-07020iAVX40,GSX40201510-201601

sub81520-07021

main81520-07021iAVX40,GSX40201602

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section
