Toyota AVALON — FRONT SPRING & SHOCK ABSORBER

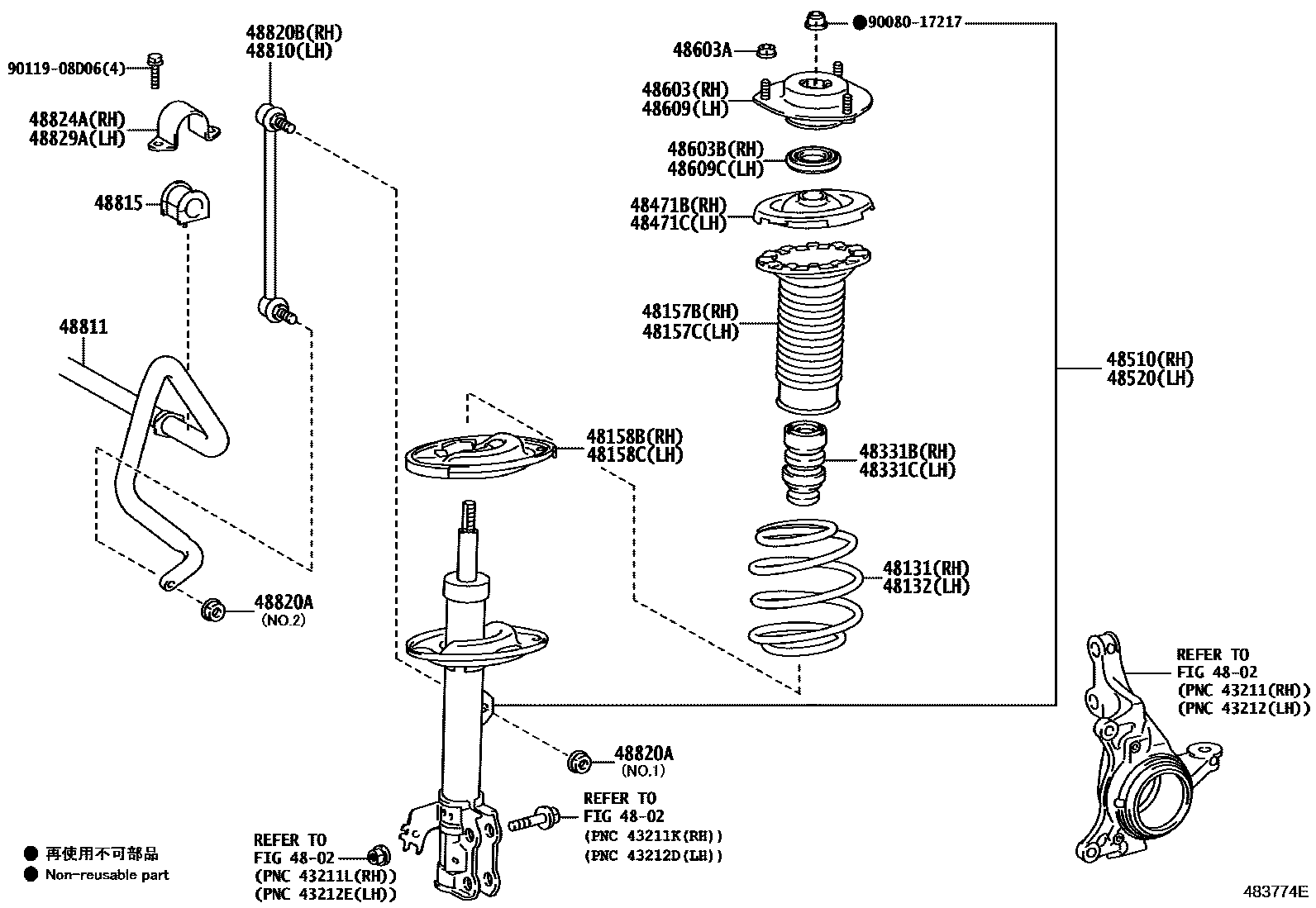

Parts diagram
4802
48131SPRING, FRONT COIL, RH
main48131-07100i201210-201410
main48131-07101i201410-201510
main48131-07110i201510
main48131-07120i201510
48132SPRING, FRONT COIL, LH
main48132-07010i201210-201410
main48132-07011i201410-201510
main48132-07020i201510
main48132-07030i201510
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-06082i201210-201510
sub48157-06083
main48157-07020i201510
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-06082i201210-201510
sub48157-06083
main48157-07020i201510
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-06070i201210-201510
main48158-06071i201510
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-06080i201210-201510
main48158-06081i201510
48331BBUMPER, FRONT SPRING, RH
main48331-06050i201210-201510
main48331-07010i201510
48331CBUMPER, FRONT SPRING, LH
main48331-06050i201210-201510
main48331-07010i201510
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-0E011i201210-201510
sub48471-41012
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-0E011i201210-201510
sub48471-41012
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-09898i201210-201510
MARK 48510-07100
main48510-09899i201210-201510
MARK 48510-07110
main48510-8Z299i201510
MARK 48510-07120
main48510-8Z300i201510
MARK 48510-07130
main48510-8Z302i201510
MARK 48510-07150
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-09894i201210-201510
MARK 48520-07100
main48520-09895i201210-201510
MARK 48520-07110
main48520-8Z156i201510
MARK 48520-07120
main48520-8Z157i201510
MARK 48520-07130
main48520-8Z159i201510
MARK 48520-07150
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-06270i201510
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-A0004×6i201210-201510
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
main90903-63014i201210-201510
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-06270i201510
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
main90903-63014i201210-201510
48810LINK ASSY, FRONT STABILIZER, LH
main48820-06090i201409-201510
(L)
main48820-07030i201510
main48820-33040i201210-201409
48811BAR, STABILIZER, FRONT
main48811-06250i201305-201309
main48811-06251i201310-201510
main48811-06260i201210-201305
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-06140×2i201510
48820ANUT(FOR FRONT STABILIZER LINK)
main90080-17222×2i201510
NO.1
main90080-17224×2i201210-201510
NO.2
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-06090i201409-201510
(L)
main48820-07030i201510
main48820-33040i201210-201409
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-06020i201210-201510
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-06020i201210-201510
9008017217
main90080-17217
9011908D06
main90119-08D06

27 parts on this diagram · 1 diagram in section
