Toyota AVALON — FRONT DOOR PANEL & GLASS

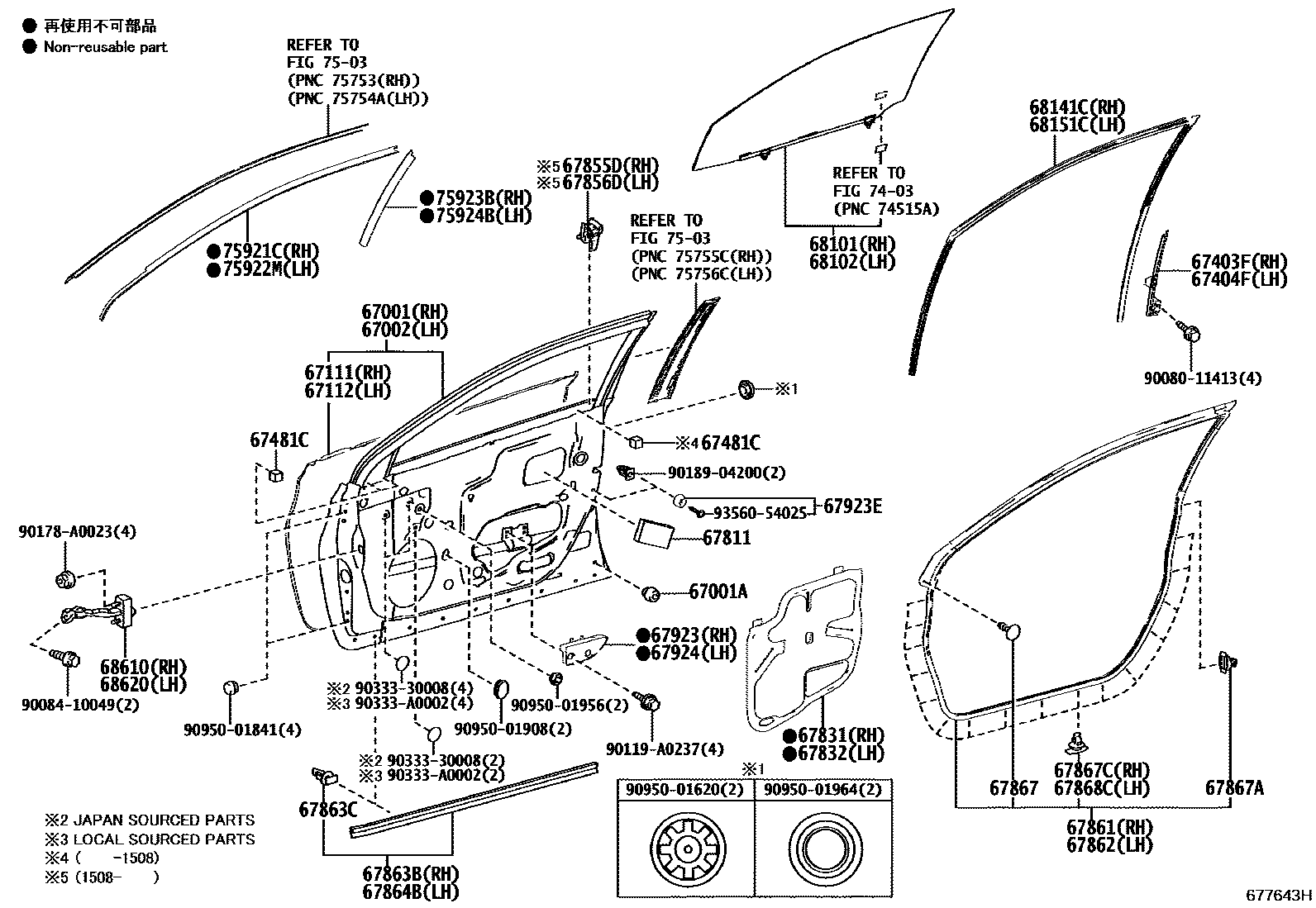

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-07040i201210-201507
main67001-07041i201507-201510
67001ACUSHION, FRONT DOOR PANEL
main90084-54012i201210-201510
(L)
main90541-09124i201210-201510
(J)
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-07040i201210-201507
main67002-07041i201507-201510
67111PANEL, FRONT DOOR, OUTER RH
main67111-07020i201210-201510
67112PANEL, FRONT DOOR, OUTER LH
main67112-07020i201210-201510
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
main67403-07010i201210-201505
main67403-07011i201506-201510
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
main67404-07010i201210-201505
main67404-07011i201506-201510
67481CSEAL, FRONT DOOR FRONT LOWER FRAME
main67481-07010i201210-201510
67811PAD, FRONT DOOR SILENCER
main67811-AA040i201210-201510
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-07060i201210-201510
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67832-07040i201210-201510
67855DPROTECTOR, FRONT DOOR PANEL, RH
main67855-07010i201508-201510
67856DPROTECTOR, FRONT DOOR PANEL, LH
main67856-07010i201508-201510
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-07010i201210-201510
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-07010i201210-201510
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-07010i201210-201508
main67863-07011i201508-201510
main67863-07012i201510
67863CCLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)
main67867-06120i201510
main67867-12150i201210-201508
main67867-50050i201508-201510
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67863-07010i201210-201508
main67863-07011i201508-201510
main67863-07012i201510
67867CLIP, DOOR WEATHERSTRIP
main67869-22010i201210-201510
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
main90467-04034i201210-201510
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-12150i201210-201510
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
main67867-12150i201210-201510
67923CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-06110i201210-201510
67923ECUSHION, FRONT DOOR STIFFENER, NO.1
main67923-24030i201210-201510
67924CUSHION, FRONT DOOR STIFFENER, NO.2
main67924-06040i201210-201510
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68101-07030i201210-201510
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68102-07030i201210-201510
68141CRUN, FRONT DOOR GLASS, RH
main68141-07020i201210-201510
68151CRUN, FRONT DOOR GLASS, LH
main68151-07020i201210-201510
68610CHECK ASSY, FRONT DOOR
main68610-07020i201210-201510
68620CHECK ASSY, FRONT DOOR, LH
main68620-07020i201210-201510
7403CAUTION PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 74-03
7503SIDE MOULDING
→ Go to FIG 75-03
75921CTAPE, BLACK OUT, NO.1 RH
main75985-07010i201210-201510
75922MTAPE, BLACK OUT, NO.1 LH
main75986-07010i201210-201510
75923BTAPE, BLACK OUT, NO.2 RH
main75975-07010i201210-201510
75924BTAPE, BLACK OUT, NO.2 LH
main75976-07010i201210-201510
9008011413
main90080-11413
9008410049
main90084-10049
90119A0237
main90119-A0237
90178A0023
main90178-A0023
9018904200
main90189-04200
9033330008
main90333-30008
90333A0002
main90333-A0002
9095001620
main90950-01620
9095001841
main90950-01841
9095001908
main90950-01908
9095001956
main90950-01956
9095001964
main90950-01964
9356054025
main93560-54025

50 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota AVALON

This section contains 72 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota AVALON. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH.
