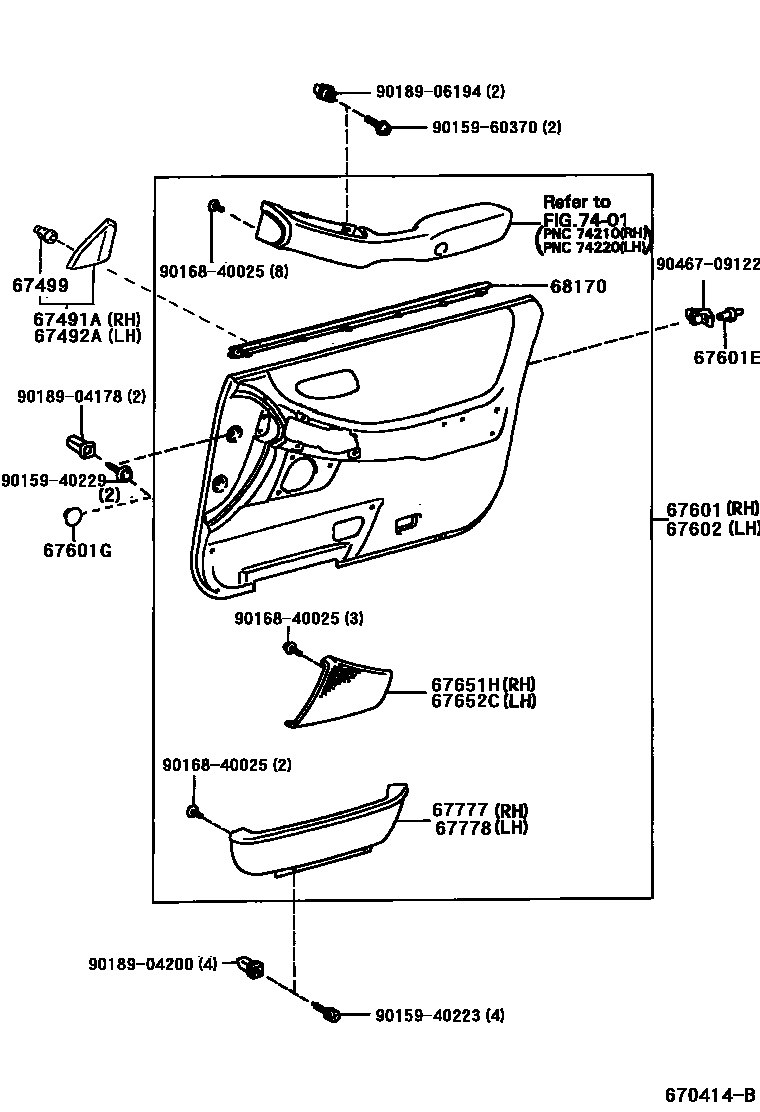

Toyota AVALON — FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
GRAY,TRIM2#
BLACK,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
DK.ADOBE,TRIM42
ROSE STONE,TRIM43
GRAY,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,DK. ROSE,TRIM4#; POWER & LEATHER PACKAGE,DK. ROSE,TRIM4#
LEATHER PACKAGE,ADOBE,TRIM4#; POWER & LEATHER PACKAGE,ADOBE,TRIM4#
LEATHER PACKAGE,ROSE STONE,TRIM4#; POWER & LEATHER PACKAGE,ROSE STONE,TRIM4#
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,QUARTZ,TRIM4#
LEATHER PACKAGE,ADOBE,TRIM4#
LEATHER PACKAGE,ROSE STONE,TRIM4#
BLACK,TRIM2#
DK. ADOBE,TRIM42
ROSE STONE,TRIM43
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,ROSE STONE,TRIM4#; LEATHER PACKAGE,ROSE STONE,TRIM43
LEATHER PACKAGE,ROSE STONE,TRIM43
LEATHER PACKAGE,SANSAL WOOD,TRIM4#; LEATHER PACKAGE,SANSAL WOOD,TRIM44
LEATHER PACKAGE,SANSAL WOOD,TRIM44
LEATHER PACKAGE & W(SEAT HEATER),BLACK,TRIM2#; LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE & W(SEAT HEATER),ROSE STONE,TRIM4#; LEATHER PACKAGE & W(SEAT HEATER),ROSE STONE,TRIM43; LEATHER PACKAGE,ROSE STONE,TRIM43
LEATHER PACKAGE & W(SEAT HEATER),SANSAL WOOD,TRIM4#; LEATHER PACKAGE & W(SEAT HEATER),SANSAL WOOD,TRIM44; LEATHER PACKAGE,SANSAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANSAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
67601ECAP(FOR FRONT DOOR TRIM BOARD)
BLACK,TRIM2#
main90467-07066-A0×2iMCX10..4FC..XLS..USA; MCX10..4HC;MCX10..4FC..CND;MCX10..4FC..XL..USA199709-199908
IVORY,TRIM4#; IVORY,TRIM44
main90467-07066-E3×2iMCX10..4FC..XLS..USA; MCX10..4HC;MCX10..4FC..CND;MCX10..4FC..XL..USA199709-199908
QUARTZ,TRIM4#; QUARTZ,TRIM43
LT. ADOBE,TRIM42
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
BLACK,TRIM2#
main90950-01746-A0×4iMCX10..4FC..XLS..USA; MCX10..4HC;MCX10..4FC..CND;MCX10..4FC..XL..USA199709-199908
IVORY,TRIM4#; IVORY,TRIM44
QUARTZ,TRIM41
LT. ADOBE,TRIM42
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
GRAY,TRIM2#
BLACK,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
DK.ADOBE,TRIM42
ROSE STONE,TRIM43
GRAY,TRIM2#
QUARTZ,TRIM4#
ADOBE,TRIM4#
LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,DK. ROSE,TRIM4#; LEATHER PACKAGE,DK. ROSE,TRIM41
LEATHER PACKAGE,ADOBE,TRIM4#
LEATHER PACKAGE,ROSE STONE,TRIM4#; POWER & LEATHER PACKAGE,ROSE STONE,TRIM4#
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,QUARTZ,TRIM4#
LEATHER PACKAGE,ADOBE,TRIM4#
LEATHER PACKAGE,ROSE STONE,TRIM4#
BLACK,TRIM2#
DK. ADOBE,TRIM42
ROSE STONE,TRIM43
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,ROSE STONE,TRIM4#; LEATHER PACKAGE,ROSE STONE,TRIM43
LEATHER PACKAGE,ROSE STONE,TRIM43
LEATHER PACKAGE,SANSAL WOOD,TRIM4#; LEATHER PACKAGE,SANSAL WOOD,TRIM44
LEATHER PACKAGE,SANSAL WOOD,TRIM44
LEATHER SEAT & W(REAR POWER SEAT),BLACK,TRIM2#; LEATHER SEAT,BLACK,TRIM2#
LEATHER PACKAGE & W(SEAT HEATER),ROSE STONE,TRIM4#; LEATHER SEAT & W(REAR POWER SEAT),ROSE STONE,TRIM43; LEATHER SEAT,ROSE STONE,TRIM43
LEATHER PACKAGE & W(SEAT HEATER),SANSAL WOOD,TRIM4#; LEATHER SEAT & W(REAR POWER SEAT),SANSAL WOOD,TRIM44; LEATHER SEAT,SANSAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANSAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
67651HGRILLE, SPEAKER DOOR, RH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
LT. ADOBE,TRIM42
main67651-AC020-A0iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XLS..USA; MCX10..XLS..CND;MCX10..4HC..XL..USA199709-199908
IVORY,TRIM4#; IVORY,TRIM44; LEATHER PACKAGE,IVORY,TRIM44; POWER & LEATHER PACKAGE,IVORY,TRIM44
BLACK,TRIM2#; LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
main67651-AC020-E0iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XL..USA; MCX10..4HC..XLS;MCX10..4FC..XLS..CND199709-199908
DK. ROSE,TRIM4#; DK. ROSE,TRIM43; LEATHER PACKAGE,DK. ROSE,TRIM43; POWER & LEATHER PACKAGE,DK. ROSE,TRIM43
ADOBE,TRIM42; LEATHER PACKAGE,ADOBE,TRIM4#; POWER & LEATHER PACKAGE,ADOBE,TRIM4#
67652CGRILLE, SPEAKER DOOR, LH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
LT. ADOBE,TRIM42
main67652-AC020-A0iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XLS..USA; MCX10..XLS..CND;MCX10..4HC..XL..USA199709-199908
IVORY,TRIM4#; IVORY,TRIM44; LEATHER PACKAGE,IVORY,TRIM44; POWER & LEATHER PACKAGE,IVORY,TRIM44
BLACK,TRIM2#; LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,DK. ROSE,TRIM4#; POWER & LEATHER PACKAGE,DK. ROSE,TRIM4#
ADOBE,TRIM42; LEATHER PACKAGE,ADOBE,TRIM4#; POWER & LEATHER PACKAGE,ADOBE,TRIM4#
67777POCKET, FRONT DOOR TRIM, RH
main67770-AC010-A0iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XL..USA; MCX10..4HC..XLS;MCX10..4FC..XLS..CND199709-199908
IVORY,TRIM4#; IVORY,TRIM44; LEATHER PACKAGE,IVORY,TRIM44; POWER & LEATHER PACKAGE,IVORY,TRIM44
BLUISH GRAY,TRIM2#; LEATHER PACKAGE,BLUISH GRAY,TRIM2#; POWER & LEATHER PACKAGE,BLUISH GRAY,TRIM2#
main67770-AC010-E2iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XL..USA; MCX10..4HC..XLS;MCX10..4FC..XLS..CND199709-199908
LEATHER PACKAGE,QUARTZ,TRIM43; POWER & LEATHER PACKAGE,QUARTZ,TRIM43; QUARTZ,TRIM4#; QUARTZ,TRIM43
ADOBE,TRIM42; LEATHER PACKAGE,ADOBE,TRIM4#; POWER & LEATHER PACKAGE,ADOBE,TRIM4#
LEATHER PACKAGE,IVORY,TRIM44; W(POWER SEAT),IVORY,TRIM4#; W(POWER SEAT),IVORY,TRIM44
LEATHER PACKAGE,BLUISH GRAY,TRIM2#
LEATHER PACKAGE,QUARTZ,TRIM43; W(POWER SEAT),QUARTZ,TRIM4#; W(POWER SEAT),QUARTZ,TRIM43
LEATHER PACKAGE,ADOBE,TRIM4#
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
LT. ADOBE,TRIM42
67778POCKET, FRONT DOOR TRIM, LH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
LT. ADOBE,TRIM42
main67780-AC010-A0iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XL..USA; MCX10..4HC..XLS;MCX10..4FC..XLS..CND199709-199908
IVORY,TRIM4#; IVORY,TRIM44; LEATHER PACKAGE,IVORY,TRIM44; POWER & LEATHER PACKAGE,IVORY,TRIM44
BLUISH GRAY,TRIM2#; LEATHER PACKAGE,BLUISH GRAY,TRIM2#; POWER & LEATHER PACKAGE,BLUISH GRAY,TRIM2#
main67780-AC010-E2iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XL..USA; MCX10..4HC..XLS;MCX10..4FC..XLS..CND199709-199908
LEATHER PACKAGE,QUARTZ,TRIM43; POWER & LEATHER PACKAGE,QUARTZ,TRIM43; QUARTZ,TRIM4#; QUARTZ,TRIM43
ADOBE,TRIM42; LEATHER PACKAGE,ADOBE,TRIM4#; POWER & LEATHER PACKAGE,ADOBE,TRIM4#
LEATHER PACKAGE,IVORY,TRIM44; W(POWER SEAT),IVORY,TRIM4#; W(POWER SEAT),IVORY,TRIM44
LEATHER PACKAGE,BLUISH GRAY,TRIM2#
LEATHER PACKAGE,QUARTZ,TRIM43; W(POWER SEAT),QUARTZ,TRIM4#; W(POWER SEAT),QUARTZ,TRIM43
LEATHER PACKAGE,ADOBE,TRIM4#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
9015940223
main90159-40223
9015940229
main90159-40229
9015960370
main90159-60370
9016840025
main90168-40025
9018904178
main90189-04178
9018904200
main90189-04200
9018906194
main90189-06194
9046709122
main90467-09122
20 parts on this diagram · 3 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota AVALON
This section contains 56 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota AVALON. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
