Toyota AVALON — FRONT BUMPER & BUMPER STAY

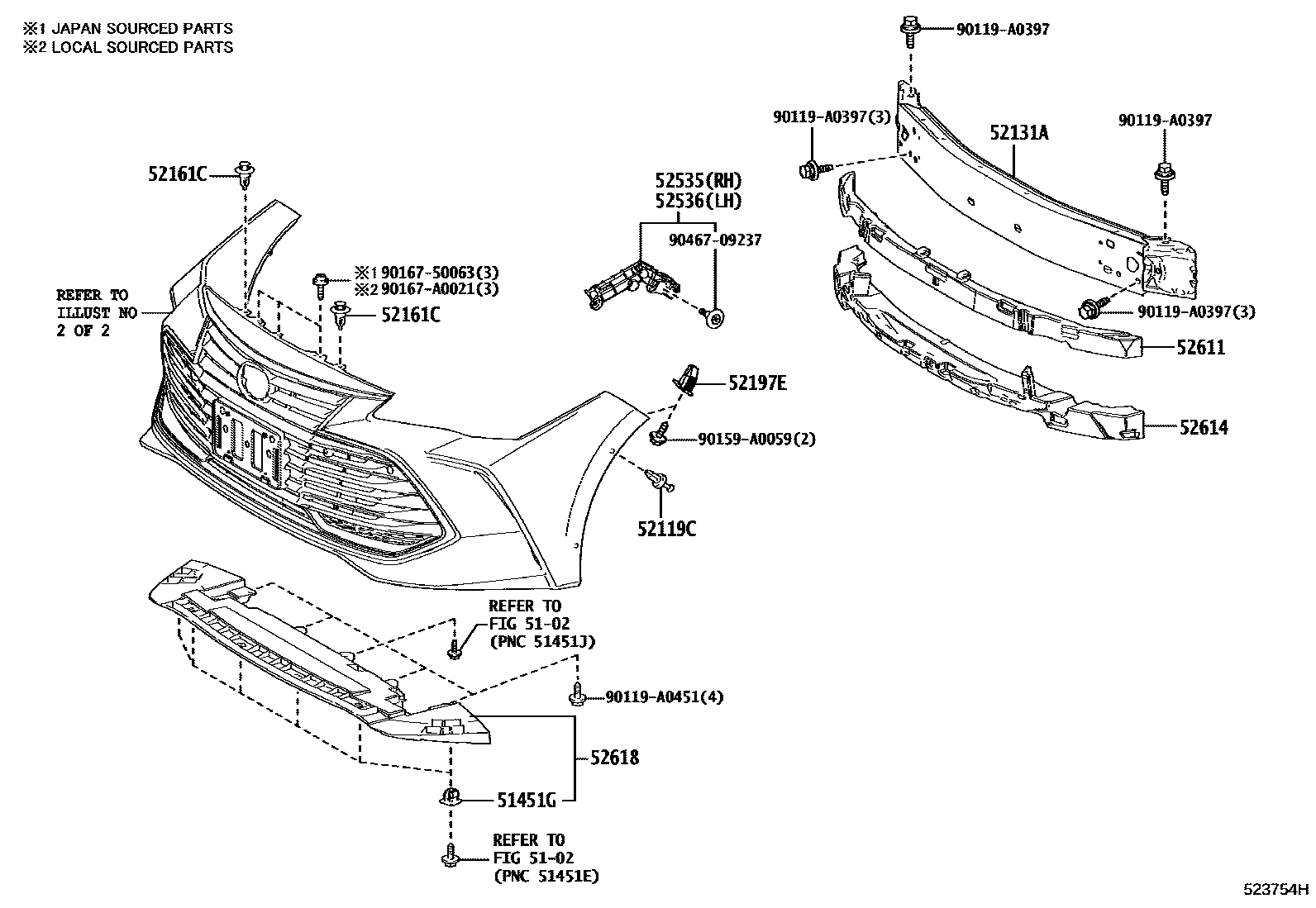

Parts diagram

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451GGROMMET, NO.2

main90189-06237×6i202008

52119CCLIP, FRONT BUMPER COVER

main90467-05090-B1×2i202008

DK.GRAY

52131AREINFORCEMENT, FRONT BUMPER

main52021-06160i201804-202008

main52021-06170i202008

52161CPIECE, FRONT BUMPER

main52161-02020×2i201804-202008

52197EBRACKET, FRONT BUMPER SEAL

main52197-22020×2i201804-202008

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-07010i202008-202107

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-07010i201804-202008

52611ABSORBER, FRONT BUMPER ENERGY

main52611-07050i201804-202008

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-07010i201804-202008

main52614-07030i202008-202107

52618ABSORBER, FRONT BUMPER, LOWER

main52618-07010i201804-202008

90119A0397

main90119-A0397

90119A0451

main90119-A0451

90159A0059

main90159-A0059

9016750063

main90167-50063

90167A0021

main90167-A0021

9046709237

main90467-09237

17 parts on this diagram · 4 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota AVALON

This section contains 27 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota AVALON. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, GROMMET, NO.1, GROMMET, NO.2, COVER, FRONT BUMPER, CLIP, FRONT BUMPER COVER.
