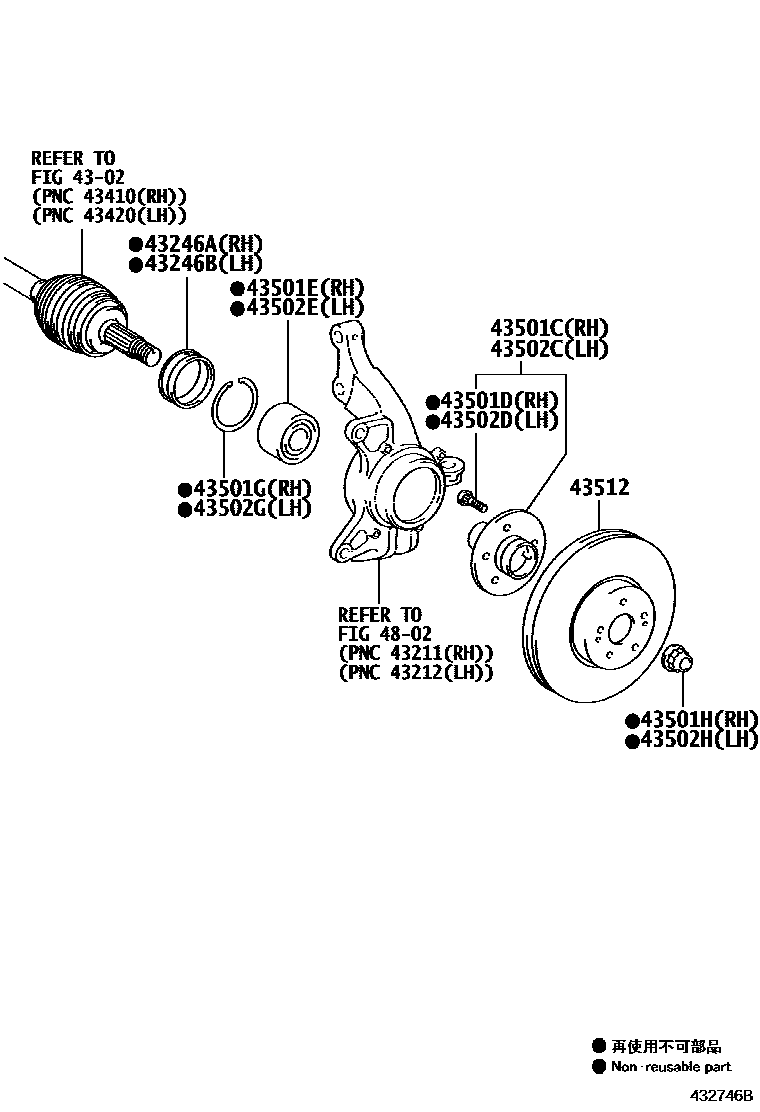

Toyota AVALON — FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-73010iAVX40,GSX40201210-201510

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-73010iAVX40,GSX40201210-201510

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-AA021iAVX40,GSX40201210-201510

sub43502-28100

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAVX40,GSX40201210-201510

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36193iAVX40,GSX40201210-201510

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iAVX40,GSX40201210-201510

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238iAVX40,GSX40201210-201510

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-AA021iAVX40,GSX40201210-201510

sub43502-28100

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAVX40,GSX40201210-201510

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36193iAVX40,GSX40201210-201510

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iAVX40,GSX40201210-201510

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238iAVX40,GSX40201210-201510

43512DISC, FRONT

main43512-06150×2iAVX40,GSX40201210-201510

4802

15 parts on this diagram · 1 diagram in section
