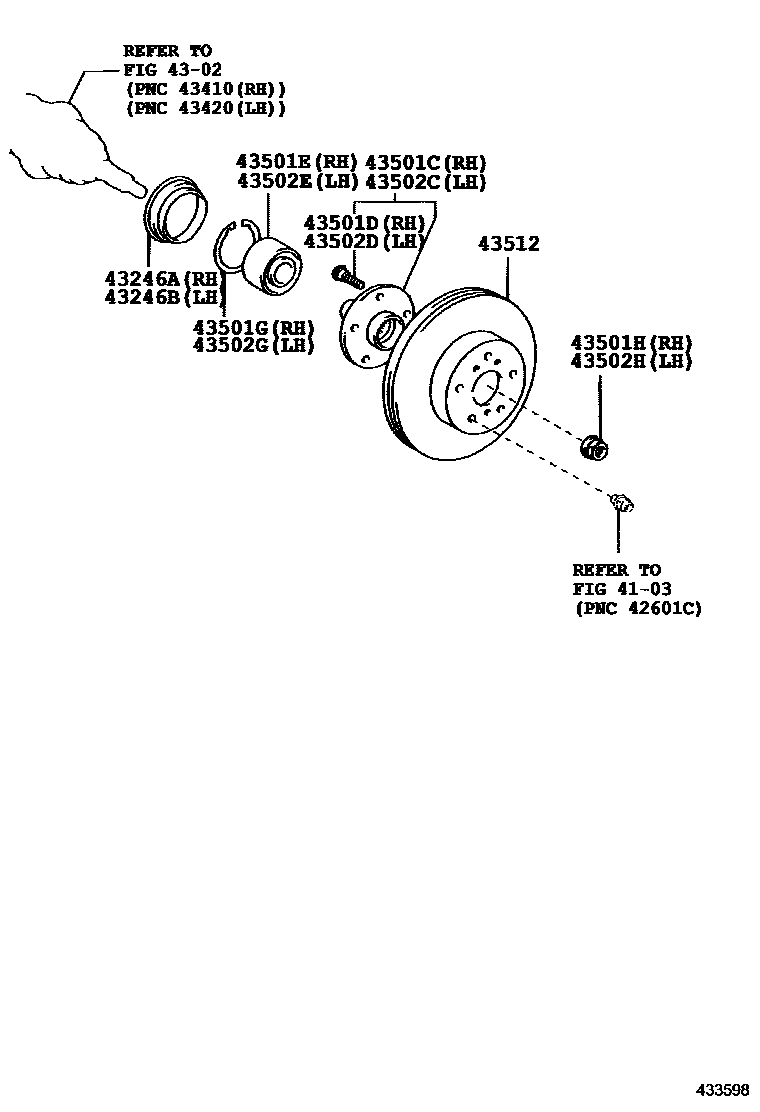

Toyota AVALON — FRONT AXLE HUB

4103

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020iGSX30200707-201003

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020iGSX30201003

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28100iGSX30200501-200707

(J)

main43502-AA020iGSX30200501-200608

(L)

main43502-AA021iGSX30..XL200707

(L)

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iGSX30200501-200707

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36193iGSX30200501-200707

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iGSX30200501-200707

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238iGSX30201003

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28100iGSX30..XL200707

(J)

main43502-AA020iGSX30200501-200608

(L)

main43502-AA021iGSX30..XL200707

(L)

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iGSX30200501-200707

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36193iGSX30200707-201003

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iGSX30..LIMD,XLS200707-201003

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238iGSX30..XL200707

43512DISC, FRONT

main43512-06090×2iGSX30200707-201003

main43512-06150×2iGSX30201108-201210

main43512-08030×2iGSX30200501-200606

main43512-08040×2iGSX30200606-200707

15 parts on this diagram · 1 diagram in section
