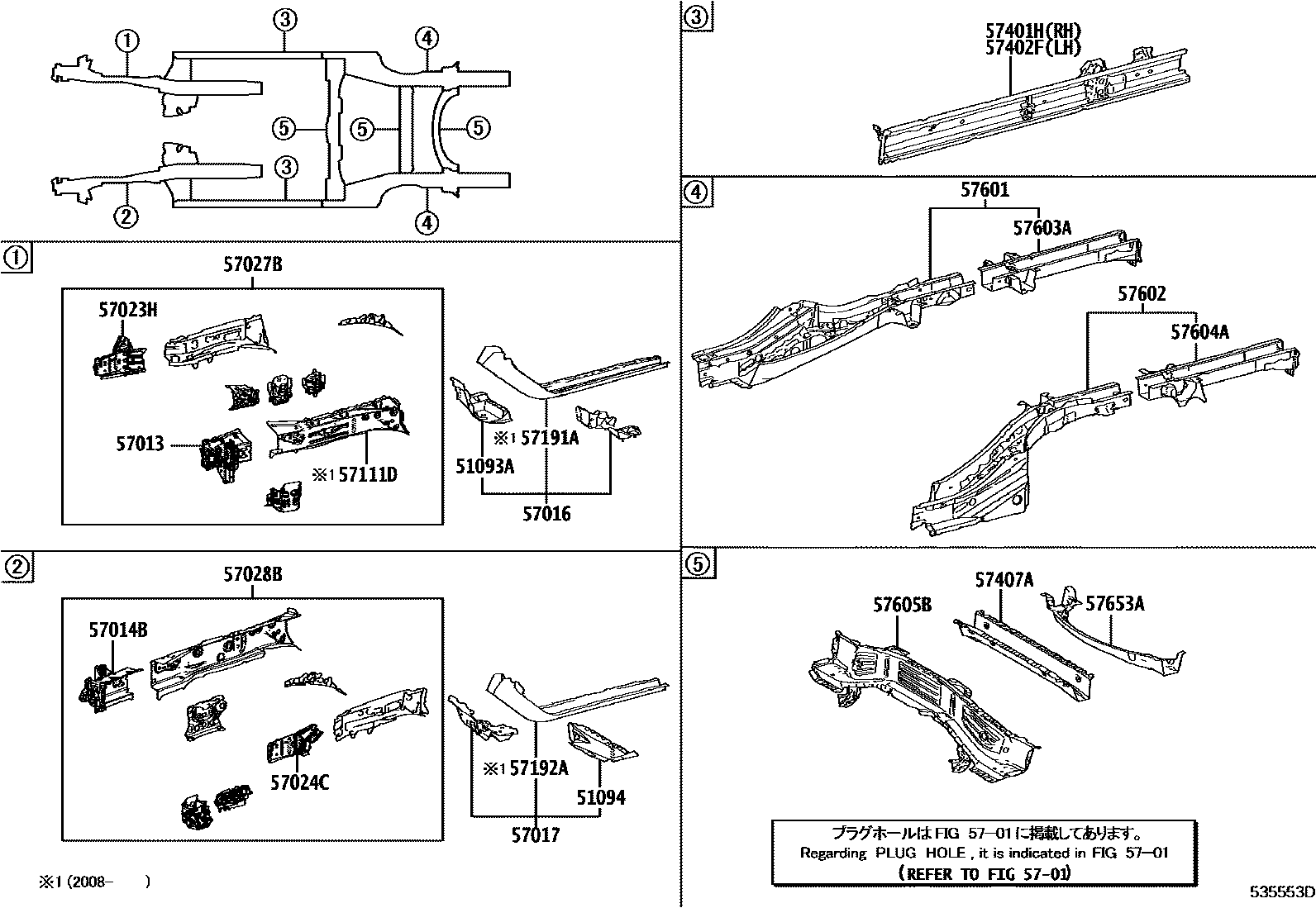

Toyota AVALON — FLOOR SIDE MEMBER
51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH
51094HOOK SUB-ASSY, TRANSPORT, FRONT LH
5701HOLE PLUG
57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57111DMEMBER, FRONT SIDE, INNER RH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57653AMEMBER, REAR FLOOR CROSS, NO.2
23 parts on this diagram · 2 diagrams in section
FLOOR SIDE MEMBER for Toyota AVALON
This section contains 24 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota AVALON. Key components include: HOOK SUB-ASSY, TRANSPORT, FRONT RH, HOOK SUB-ASSY, TRANSPORT, FRONT LH, HOLE PLUG, BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH, BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH.
