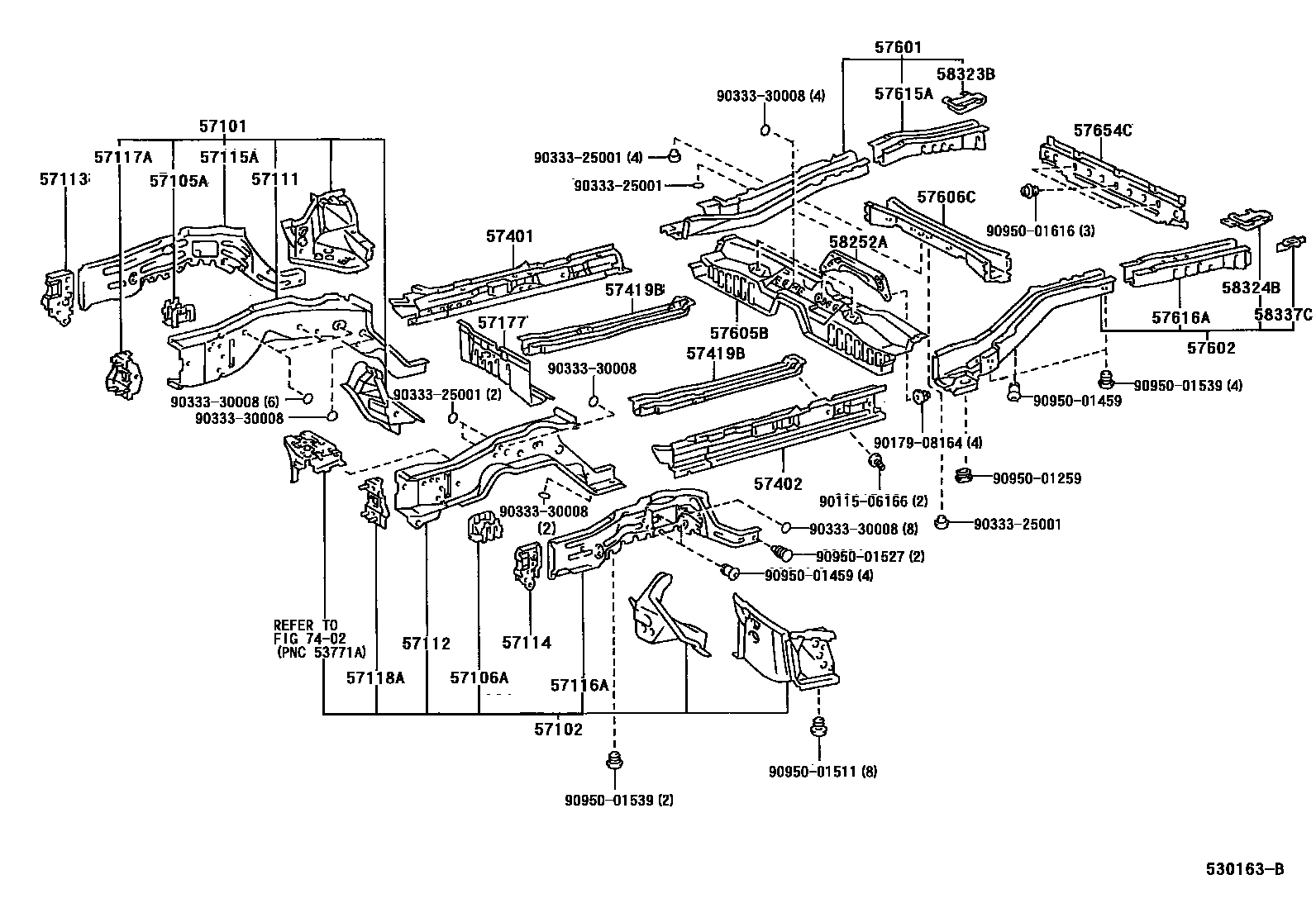

Toyota AVALON — FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
(J)
57114EXTENSION, FRONT SIDE MEMBER, LH
(L)
(J)
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
TAIWAN SPEC OR KOREA SPEC OR W(7 SPEAKER); W(7 SPEAKER)
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57654CMEMBER, REAR FLOOR CROSS, NO.3
58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH
58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH
58337CREINFORCEMENT, REAR FLOOR PAN, NO.1 LH
7402BATTERY CARRIER
9011506166
main90115-06166
9017908164
main90179-08164
9033325001
main90333-25001
9033330008
main90333-30008
9095001259
main90950-01259
9095001459
main90950-01459
9095001511
main90950-01511
9095001527
main90950-01527
9095001539
main90950-01539
9095001616
main90950-01616
38 parts on this diagram · 2 diagrams in section
FLOOR SIDE MEMBER for Toyota AVALON
This section contains 41 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota AVALON. Key components include: MEMBER SUB-ASSY, FRONT SIDE, RH, MEMBER SUB-ASSY, FRONT SIDE, LH, CROSSMENBER SUB-ASSY, FLOOR, NO.3, PLATE SUB-ASSY, FRONT SIDE MEMBER, RH, PLATE SUB-ASSY, FRONT SIDE MEMBER, LH.
