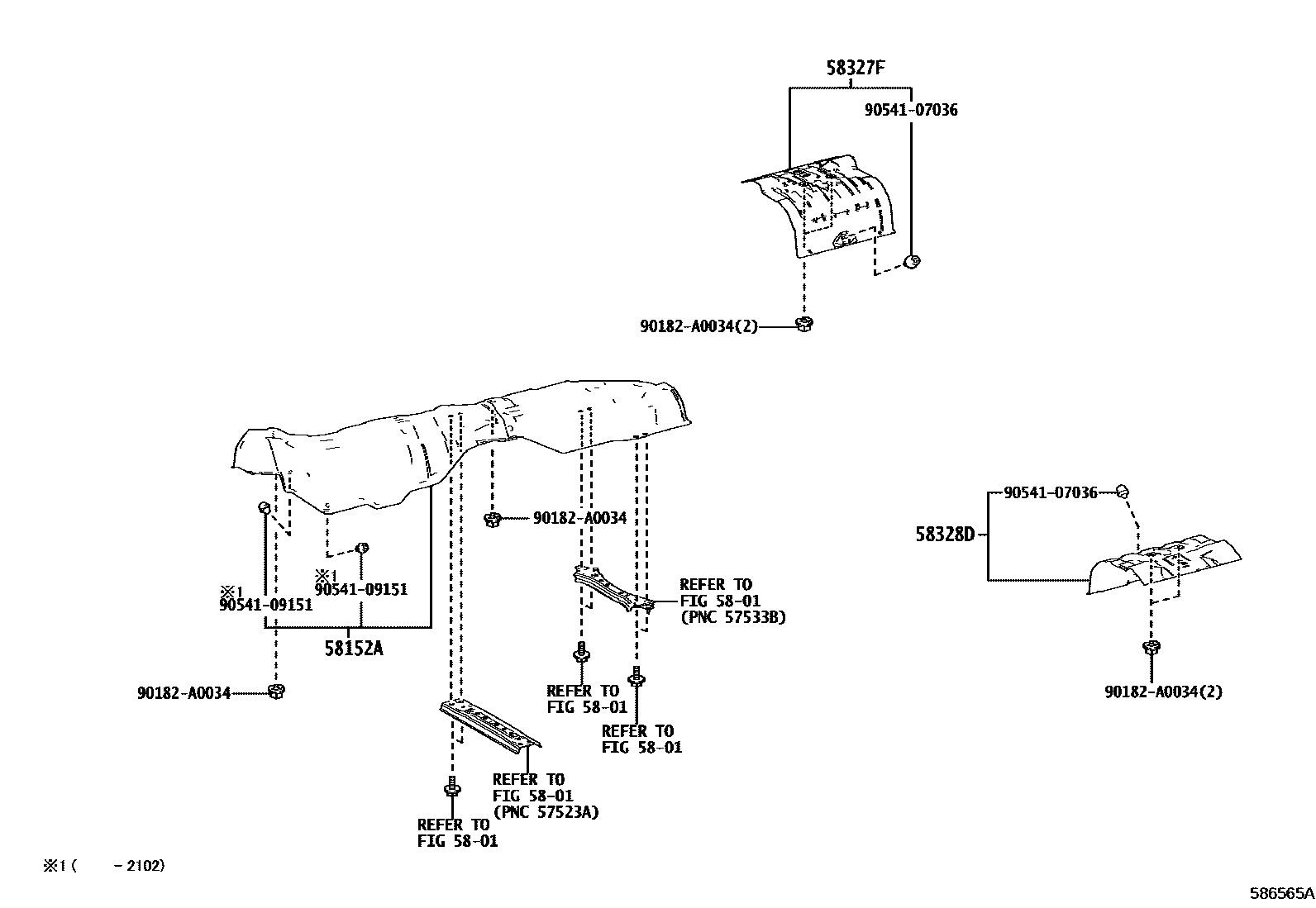

Toyota AVALON — FLOOR INSULATOR
5801FLOOR PAN & LOWER BACK PANEL
58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58327FINSULATOR, MAIN MUFFLER HEAT, RH
58328DINSULATOR, MAIN MUFFLER HEAT, LH
90182A0034
main90182-A0034
9054107036
main90541-07036
9054109151
main90541-09151
7 parts on this diagram · 3 diagrams in section
FLOOR INSULATOR for Toyota AVALON
This section contains 9 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota AVALON. Key components include: FLOOR PAN & LOWER BACK PANEL, INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER, INSULATOR, CENTER FLOOR HEAT, NO.2, INSULATOR, MAIN MUFFLER HEAT, RH.
