Toyota AVALON — EXHAUST GAS RECIRCULATION SYSTEM

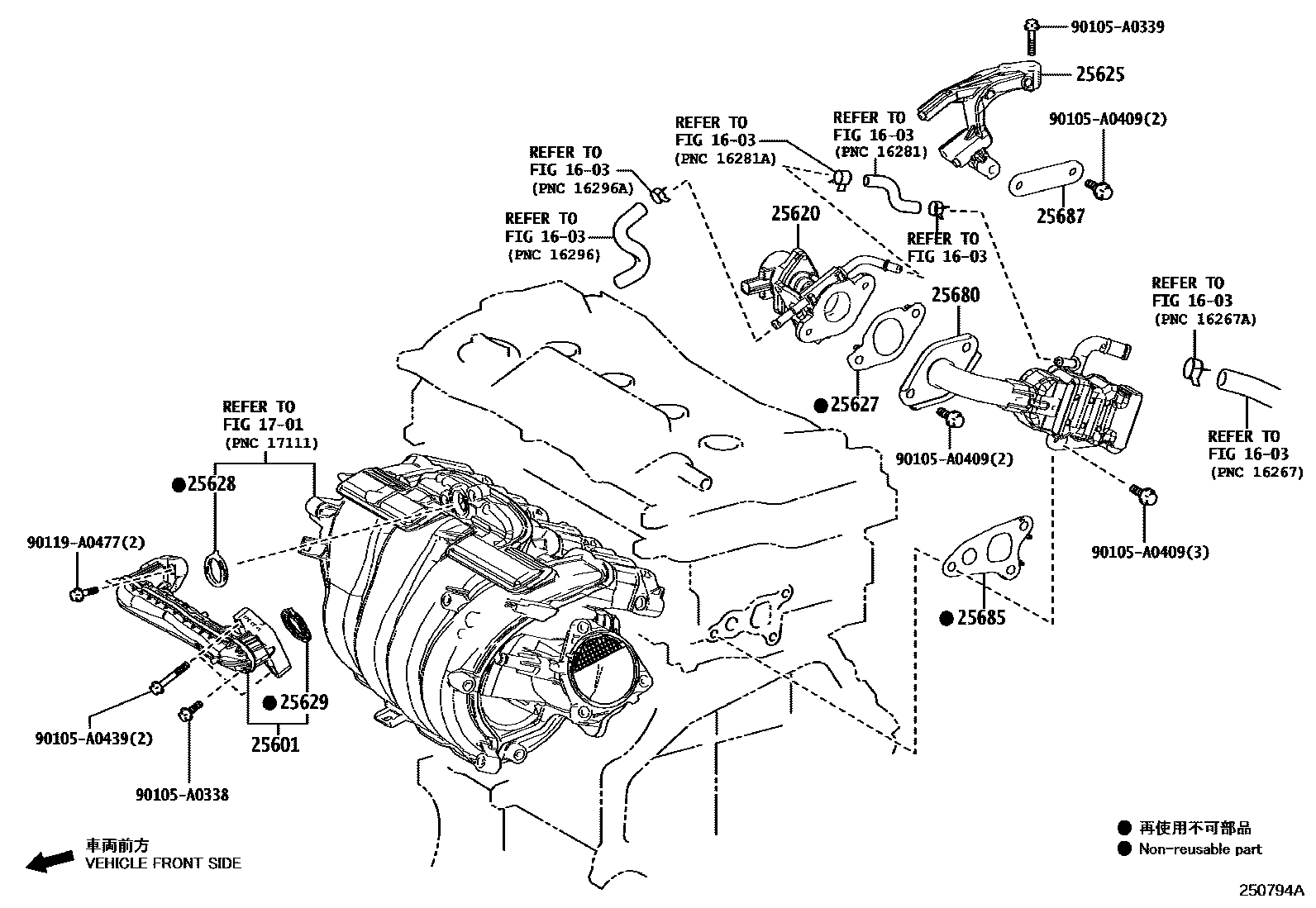

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-F0010i202008-202108

main25601-F0020i202108

25620VALVE ASSY, EGR

main25620-25040i201805-201901

main25620-F0020i201901-202008

(L)

main25620-F2010i202108

25625BRACKET, EGR VALVE

main25625-25030i202008-202108

(J)

main25625-F0010i201805-202004

main25625-F0020i202008-202108

(L)

25627GASKET, EGR VALVE

main25627-F0010i202008-202108

main25627-F2010i202108

25628GASKET, EGR INLET

main25628-25010i201805-202008

25629GASKET, EGR VALVE ADAPTER

main25629-25010i201805-202008

25680COOLER ASSY, EGR

main25680-F0010i202008-202108

main25680-F0020i201805-202008

main25680-F0030i202108

25685GASKET, EGR COOLER, NO.1

main25685-25011i201805-202008

25687BRACKET, EGR COOLER, NO.1

main25687-25010i202008-202108

90105A0338

main90105-A0338

90105A0339

main90105-A0339

90105A0409

main90105-A0409

90105A0439

main90105-A0439

90119A0477

main90119-A0477

16 parts on this diagram · 3 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota AVALON

This section contains 20 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota AVALON. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, BRACKET, EGR VALVE.
