Toyota AVALON — EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

25611APIPE, EGR, NO.1

main25611-36011i201211-201510

*107

25612PIPE, EGR, NO.2

main25612-36010i201211-201510

*107

25620VALVE ASSY, EGR

main25620-36030i201211-201404

*107

main25620-36060i201404-201510

*107,*288

25620CHOSE, WATER BY-PASS, NO.1

main16282-36021i201211-201401

*107

main16282-36022i201401-201510

*107,*288

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main90466-21001×2i201211-201510

*107

25627GASKET, EGR VALVE

main25627-36010i201211-201510

*107

25628GASKET, EGR INLET

main25628-36010i201211-201510

*107

25629AGASKET, EGR PIPE, NO.2

main25629-36010×2i201211-201510

*107

25634GASKET, EGR PIPE

main25634-36010i201211-201510

*107

25635BRACKET, EGR PIPE, NO.1

main25635-36010i201211-201510

*107

25680COOLER ASSY, EGR

main25680-36010i201211-201401

*107

main25680-36011i201401-201402

*107,*288

main25680-36012i201403-201510

*107,*288

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9010906385

main90109-06385

9012608050

main90126-08050

9012608052

main90126-08052

9017908119

main90179-08119

9017908228

main90179-08228

9155180625

main91551-80625

9155180816

main91551-80816

9155180820

main91551-80820

9155380816

main91553-80816

9167180820

main91671-80820

9415180800

main94151-80800

24 parts on this diagram · 1 diagram in section

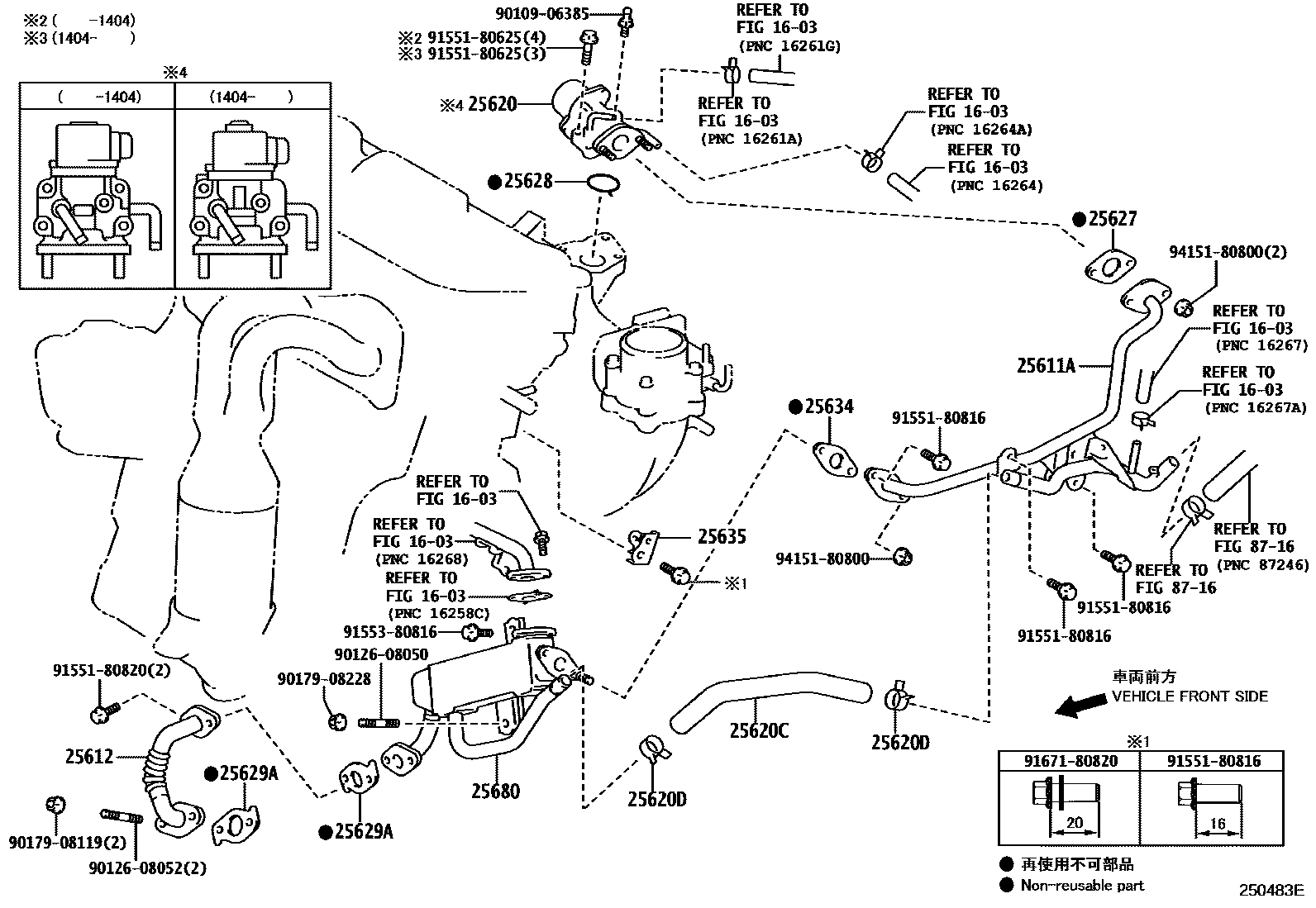

EXHAUST GAS RECIRCULATION SYSTEM for Toyota AVALON
