Toyota AVALON — EXHAUST GAS RECIRCULATION SYSTEM

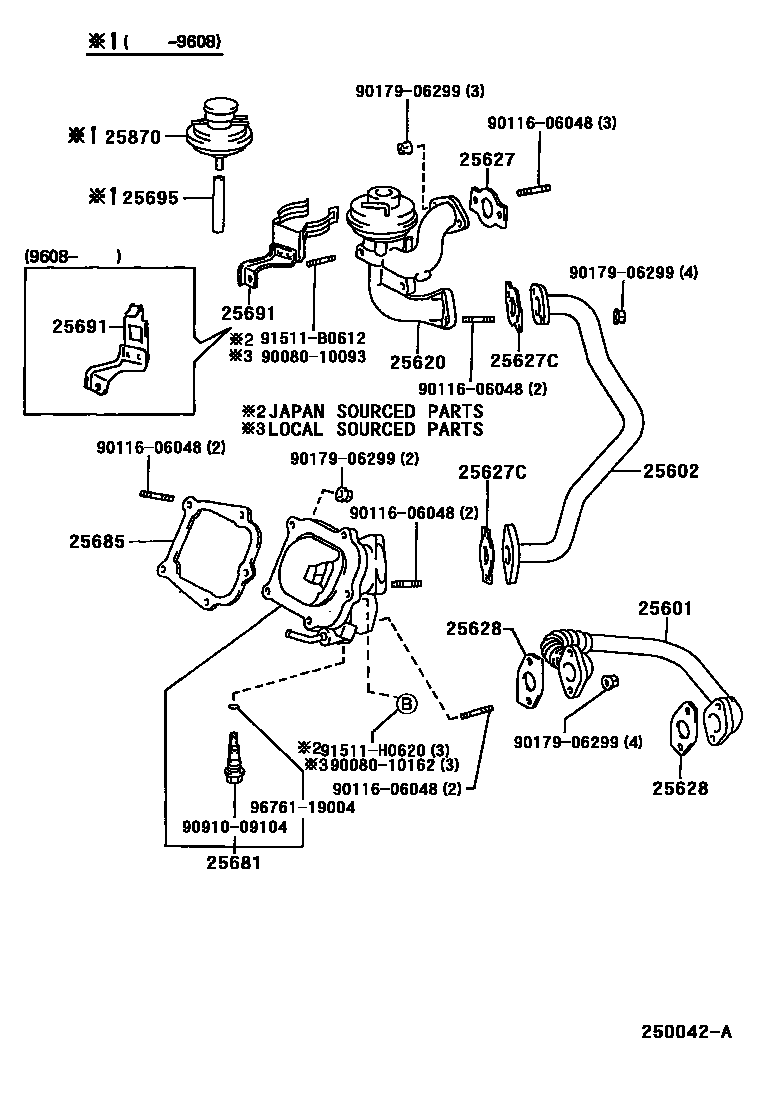

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25611-0A010i199409-199511

main25611-0A011i199511

main25611-0A020i199709

CALIFORNIA SPEC

25602PIPE SUB-ASSY, EGR, NO.2

main25612-0A010i199409

25620VALVE ASSY, EGR

main25620-20010i199409-199608

main25620-20020i199608

25627GASKET, EGR VALVE

main25627-0A010i199409

25627CGASKET(FOR EGR PIPE NO.2)

main25627-0A010×2i199409

25628GASKET, EGR INLET

main25628-0A010×2i199409

25681COOLER, EGR, NO.1

main25681-20010i199409

25685GASKET, EGR COOLER, NO.1

main25685-0A010i199409

25691BRACKET, EGR VACUUM MODULATOR

main25691-20010i199409-199508

main25691-20020i199508-199608

main25691-20030i199608

25695HOSE, EGR VACUUM MODULATOR

main25695-20010i199409-199608

25870VALVE ASSY, EGR VACUUM MODULATOR

main25870-62020i199409-199608

9008010093

main90080-10093

9008010162

main90080-10162

9011606048

main90116-06048

9017906299

main90179-06299

9091009104

main90910-09104

91511B0612

main91511-B0612

91511H0620

main91511-H0620

9676119004

main96761-19004

19 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota AVALON

This section contains 19 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota AVALON. Key components include: PIPE SUB-ASSY, EGR, NO.1, PIPE SUB-ASSY, EGR, NO.2, VALVE ASSY, EGR, GASKET, EGR VALVE, GASKET(FOR EGR PIPE NO.2).
