Toyota AVALON — ENGINE OIL PUMP

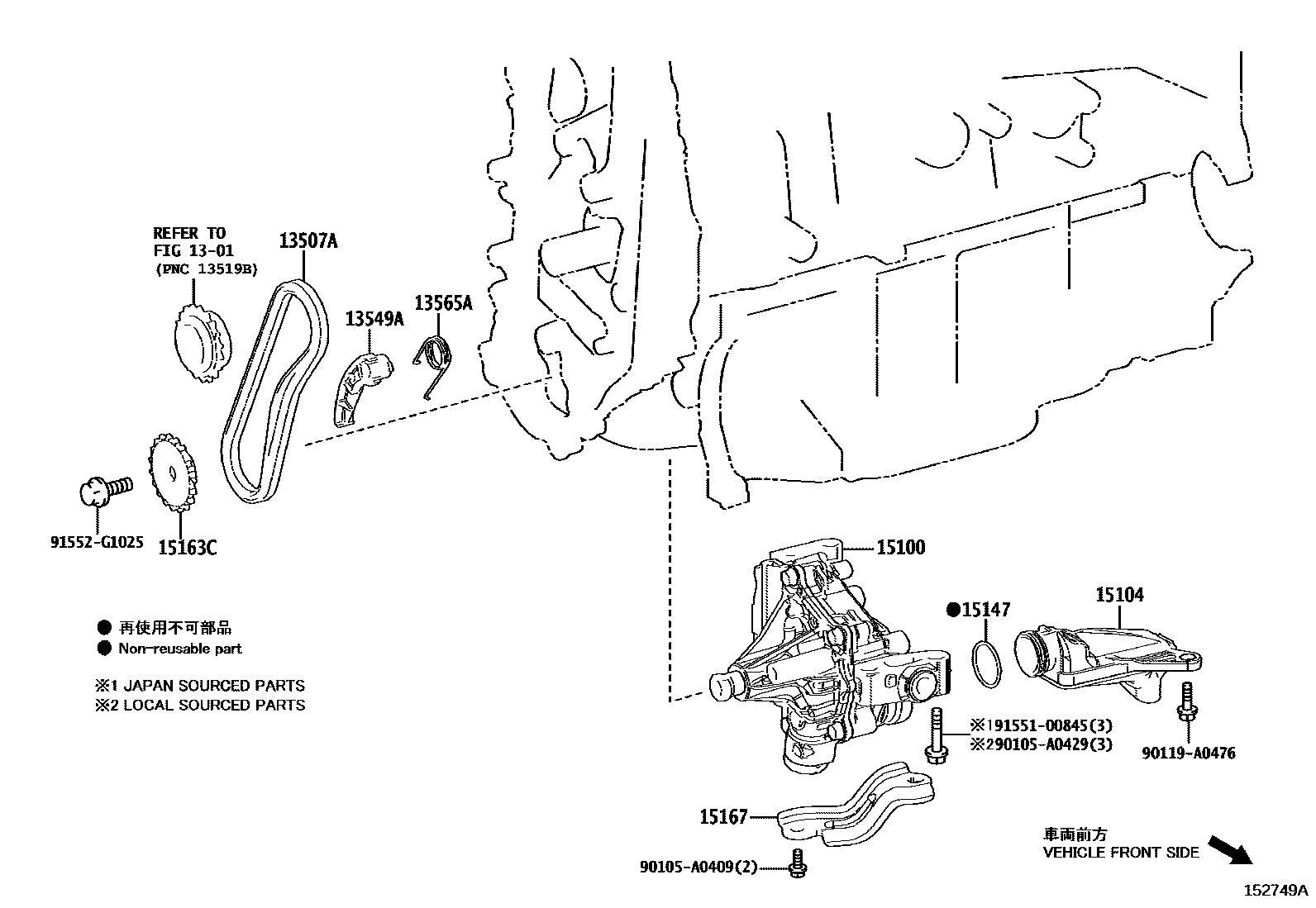

Parts diagram

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-F0010i202008-202107

13549APLATE, CHAIN TENSIONER

main13549-F0010i201805-202008

13565ASPRING, CHAIN DAMPER

main13565-F0010i201805-202008

15100PUMP ASSY, OIL

main15100-F0011i201805-202008

15104STRAINER SUB-ASSY, OIL

main15104-0P010i201804-202008

main15104-F0010i201805-202008

15147GASKET, OIL STRAINER

main15147-0P030i202008-202108

main15147-25010i201805-202008

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-F0010i201805-202008

15167BRACKET, OIL PUMP

main15167-25011i201805-202008

90105A0409

main90105-A0409

90105A0429

main90105-A0429

90119A0476

main90119-A0476

9155100845

main91551-00845

91552G1025

main91552-G1025

14 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota AVALON

This section contains 21 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota AVALON. Key components include: CRANKSHAFT & PISTON, CHAIN SUB-ASSY, OIL PUMP DRIVE, PLATE, CHAIN TENSIONER, SPRING, CHAIN DAMPER, PUMP ASSY, OIL.
