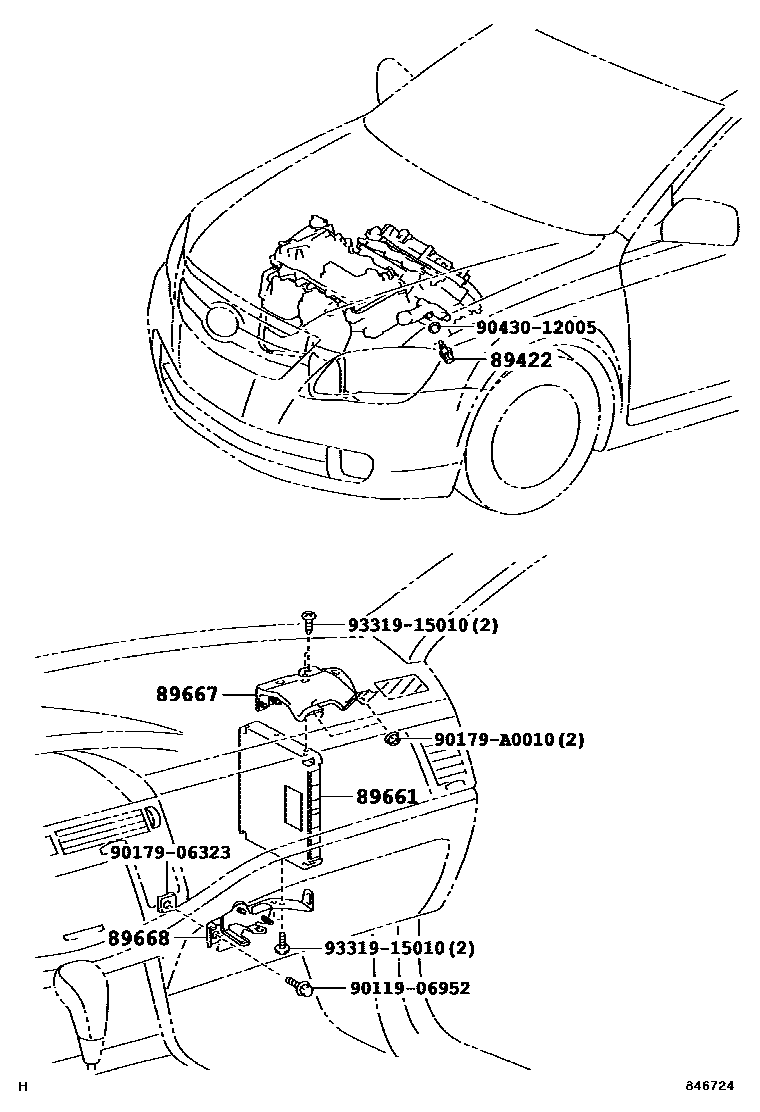

Toyota AVALON — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010iGSX30200510-200612

MARK 89422-06010

main89422-33030iGSX30200501-200510

89661COMPUTER, ENGINE CONTROL

main89661-07410iGSX30200501-200505

main89661-07411iGSX30200505-200508

sub89661-07412

main89661-07450iGSX30200508-200604

main89661-07451iGSX30200605-200608

main89661-07470iGSX30200608-200705

main89661-07471iGSX30200706-200707

sub89661-07472

main89661-07480iGSX30200707-200709

main89661-07481iGSX30200710-200908

sub89661-07482

main89661-07510iGSX30200908-201001

main89661-07511iGSX30201002

sub89661-07512

main89661-07570iGSX30201012-201109

main89661-07571iGSX30201110-201111

main89661-07610iGSX30201111

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-06100iGSX30200707-201003

main89667-07070iGSX30200501-200707

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06100iGSX30200707-201003

main89668-07060iGSX30200501-200707

9011906952

main90119-06952

9017906323

main90179-06323

90179A0010

main90179-A0010

9043012005

main90430-12005

9331915010

main93319-15010

9 parts on this diagram · 2 diagrams in section
