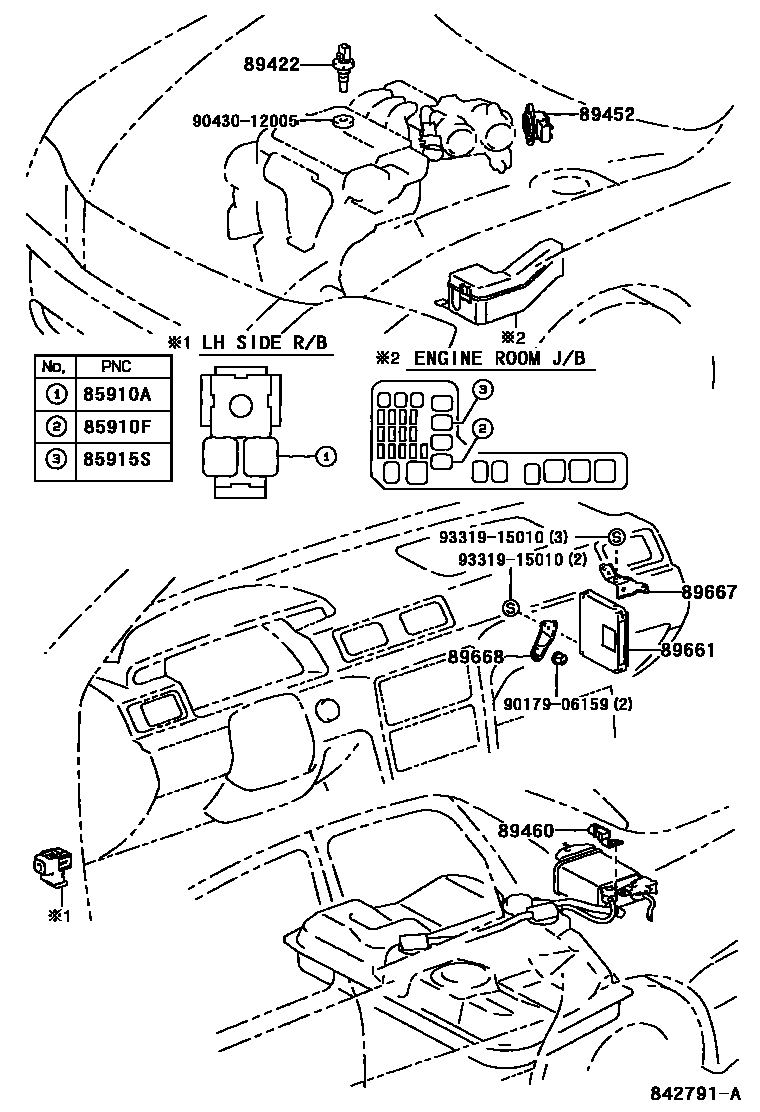

Toyota AVALON — ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90084-98031iMCX20200206-200501

PART NUMBER LABEL=90084-98031

main90987-02012iMCX20199908-200206

PART NUMBER LABEL=90987-02012

85910FRELAY, COMPUTER (FOR EFI)

main90084-98031iMCX20200206-200501

PART NUMBER LABEL=90084-98031

main90987-02012iMCX20199908-200206

PART NUMBER LABEL=90987-02012

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90084-98031iMCX20199908-200206

PART NUMBER LABEL=90084-98031

main90987-02012iMCX20199908-200206

PART NUMBER LABEL=90987-02012

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iMCX20199908-200206

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-06020iMCX20199908-200206

main89452-33030iMCX20200405-200501

89460SENSOR ASSY, VAPOR PRESSURE

main89460-07030iMCX20199908-200206

89661COMPUTER, ENGINE CONTROL

main89661-07260iMCX20199908-200002

main89661-07261iMCX20200002-200008

sub89661-07262

main89661-07270iMCX20..4FC..XLS..USA199908-200002

TAIWAN SPEC

main89661-07271iMCX20..4FC..XLS..USA200002-200008

TAIWAN SPEC

sub89661-07272

main89661-07310iMCX20200008-200011

main89661-07311iMCX20200011-200107

sub89661-07312

main89661-07320iMCX20..4FC..XLS..USA200008-200011

TAIWAN SPEC

main89661-07321iMCX20..4FC..XLS..USA200011-200107

TAIWAN SPEC

main89661-07340iMCX20200107-200206

sub89661-07341

main89661-07350iMCX20..4FC..XLS..USA200107-200206

TAIWAN SPEC

main89661-07370iMCX20200206-200207

main89661-07371iMCX20200207-200304

main89661-07372iMCX20200304-200308

sub89661-07500

main89661-07373iMCX20200308-200405

main89661-07374iMCX20200405-200501

sub89661-07375

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-07040iMCX20199908-200206

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-07040iMCX20199908-200206

9017906159

main90179-06159

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
