Toyota AVALON — ELECTRONIC FUEL INJECTION SYSTEM

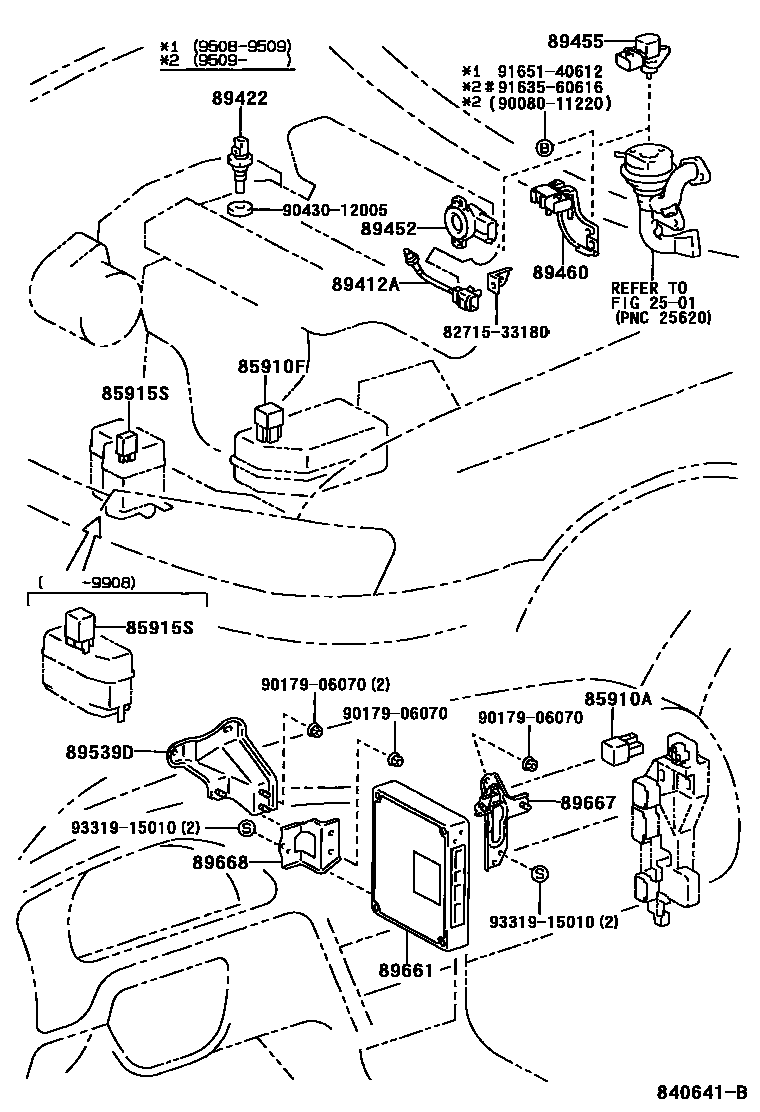

Parts diagram
2501
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
main90084-98009i199409-199502
main90987-02009i199502-199908
DENSO
85910FRELAY, COMPUTER (FOR EFI)
main90084-98009i199502-199908
BOSCH
main90987-02009i199502-199908
DENSO
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
main90084-98031i199808-199908
main90987-02006i199709-199808
89412ASENSOR, E.G.R GAS TEMPERATURE
main89412-33050i199409
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-35010i199409
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
main89452-06020i199608
main89452-22090i199409-199608
89455SENSOR, EGR VALVE POSITION
main89455-33020i199608
89460SENSOR ASSY, VAPOR PRESSURE
main89460-06050i199808
main89460-07020i199608-199808
main89460-41010i199508-199608
89539DBRACKET, COMPUTER
main89539-33050i199409
89661COMPUTER, ENGINE CONTROL
main89661-07010i199409-199508
PART NUMBER LABEL=89661-07010
main89661-07020i199409-199508
PART NUMBER LABEL=89661-07020
main89661-07030i199409-199508
PART NUMBER LABEL=89661-07030
main89661-07050i199508-199608
PART NUMBER LABEL=89661-07050
main89661-07060i199508-199608
PART NUMBER LABEL=89661-07060
main89661-07080i199608-199701
PART NUMBER LABEL=89661-07080
main89661-07081i199701-199709
PART NUMBER LABEL=89661-07081
main89661-07090i199608-199701
PART NUMBER LABEL=89661-07090
main89661-07091i199701-199709
PART NUMBER LABEL=89661-07091
main89661-07100i199608-199701
PART NUMBER LABEL=89661-07100
main89661-07101i199701-199709
PART NUMBER LABEL=89661-07101
main89661-07130i199709-199711
PART NUMBER LABEL=89661-07130
sub89661-07131
main89661-07132i199711-199802
PART NUMBER LABEL=89661-07132
main89661-07133i199802-199808
PART NUMBER LABEL=89661-07133
main89661-07140i199709-199711
PART NUMBER LABEL=89661-07140
sub89661-07141
main89661-07142i199711-199802
PART NUMBER LABEL=89661-07142
main89661-07143i199802-199808
PART NUMBER LABEL=89661-07143
main89661-07150i199709-199802
PART NUMBER LABEL=89661-07150
main89661-07151i199802-199808
PART NUMBER LABEL=89661-07151
main89661-07160i199709-199802
PART NUMBER LABEL=89661-07160,TOYOTA
main89661-07161i199802-199808
PART NUMBER LABEL=89661-07161,TOYOTA
main89661-07170i199709-199802
PART NUMBER LABEL=89661-07170
main89661-07171i199802-199808
PART NUMBER LABEL=89661-07171
main89661-07180i199709-199802
PART NUMBER LABEL=89661-07180
main89661-07181i199802-199808
PART NUMBER LABEL=89661-07181
main89661-07210i199709-199802
PART NUMBER LABEL=89661-07210,DELCO
main89661-07211i199802-199808
PART NUMBER LABEL=89661-07211,DELCO
main89661-07220i199808-199811
PART NUMBER LABEL=89661-07220
main89661-07221i199811-199904
PART NUMBER LABEL=89661-07221
main89661-07222i199904-199908
PART NUMBER LABEL=89661-07222
main89661-07230i199808-199811
PART NUMBER LABEL=89661-07230
main89661-07231i199811-199904
PART NUMBER LABEL=89661-07231
main89661-07232i199904-199908
PART NUMBER LABEL=89661-07232
main89661-07240i199808-199811
PART NUMBER LABEL=89661-07240
main89661-07241i199811-199904
PART NUMBER LABEL=89661-07241
main89661-07242i199904-199908
PART NUMBER LABEL=89661-07242
main89661-07250i199808-199811
PART NUMBER LABEL=89661-07250
main89661-07251i199811-199908
PART NUMBER LABEL=89661-07251
89667BRACKET, ENGINE CONTROL COMPUTER
main89667-07010i199409-199608
main89667-07020i199808
TOYOTA
main89667-07030i199709-199808
DELCO
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-07010i199409-199608
main89668-07020i199608-199808
TOYOTA
main89668-07030i199709-199808
DELCO
8271533180BRACKET,WIRING HARNESS CLAMP
main82715-33180
9008011220
main90080-11220
9017906070
main90179-06070
9043012005
main90430-12005
9163560616
main91635-60616
9165140612
main91651-40612
9331915010
main93319-15010

20 parts on this diagram · 1 diagram in section
