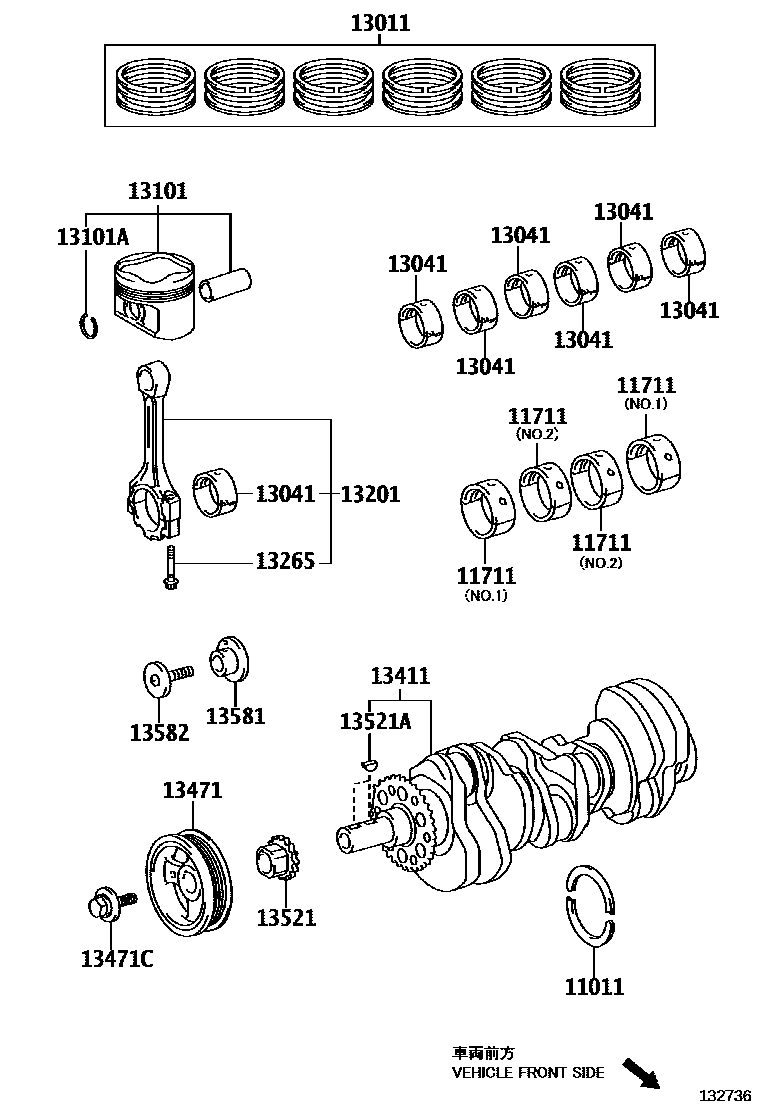

Toyota AVALON — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(L)
11711BEARING, CRANKSHAFT
MARK1,NO.2,(L):REFER R/M
MARK2,NO.2,(L):REFER R/M
MARK3,NO.2,(L):REFER R/M
MARK4,NO.2,(L):REFER R/M
MARK5,NO.2,(L):REFER R/M
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
MARK1,NO.1,(L):REFER R/M
MARK2,NO.1,(L):REFER R/M
MARK3,NO.1,(L):REFER R/M
MARK4,NO.1,(L):REFER R/M
MARK5,NO.1,(L):REFER R/M
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
MARK5,NO.1,REFER R/M
13011RING SET, PISTON
STD
STD
STD,(J)
13041BEARING, CONNECTING ROD
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK1,REFER R/M
MARK2,REFER R/M
MARK3,REFER R/M
MARK4,REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,(L)
STD
STD,(L)
STD,(J)
13101ARING, HOLE SNAP(FOR PISTON PIN)
(J)
(L)
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
sub13265-28020
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
(J)
(L)
13582SHAFT, IDLE GEAR, NO.2
15 parts on this diagram · 1 diagram in section
