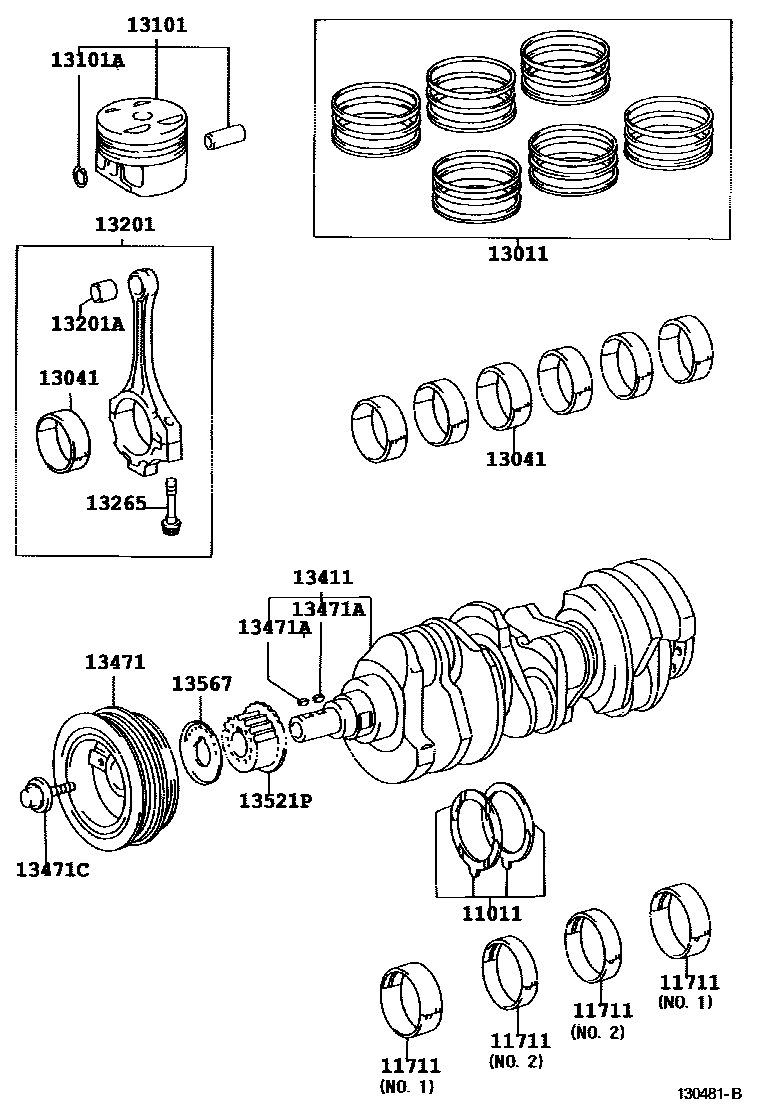

Toyota AVALON — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(L)
STD,(J)
11711BEARING, CRANKSHAFT
REFER TO REPAIR MANUAL,MARK 1,MARK 1,NO.2,(L)
REFER TO REPAIR MANUAL,MARK 2,MARK 2,NO.2,(L)
REFER TO REPAIR MANUAL,MARK 3,(L),NO.2
REFER TO REPAIR MANUAL,MARK 4,MARK 4,NO.2,(L)
REFER TO REPAIR MANUAL,MARK 5,MARK 5,NO.2,(L)
REFER TO REPAIR MANUAL,MARK 6,(L),NO.2
REFER TO REPAIR MANUAL,MARK 7,(L),NO.2
REFER TO REPAIR MANUAL,MARK 1,(L),NO.2
REFER TO REPAIR MANUAL,MARK 2,(L),NO.2
REFER TO REPAIR MANUAL,MARK 3,(L),NO.2
REFER TO REPAIR MANUAL,MARK 4,(L),NO.2
REFER TO REPAIR MANUAL,MARK 5,(L),NO.2
REFER TO REPAIR MANUAL,MARK 6,(L),NO.2
REFER TO REPAIR MANUAL,MARK 7,(L),NO.2
REFER TO REPAIR MANUAL,MARK 1,(J),NO.2
REFER TO REPAIR MANUAL,MARK 2,MARK 2,NO.2,(J)
REFER TO REPAIR MANUAL,MARK 3,(J),NO.2
REFER TO REPAIR MANUAL,MARK 4,MARK 4,NO.2,(J)
REFER TO REPAIR MANUAL,MARK 5,(J),NO.2
REFER TO REPAIR MANUAL,MARK 6,(J),NO.2
REFER TO REPAIR MANUAL,MARK 7,MARK 7,NO.2,(J)
REFER TO REPAIR MANUAL,MARK1,(J),NO.2
REFER TO REPAIR MANUAL,MARK2,(J),NO.2
REFER TO REPAIR MANUAL,MARK3,(J),NO.2
REFER TO REPAIR MANUAL,MARK4,(J),NO.2
REFER TO REPAIR MANUAL,MARK5,(J),NO.2
REFER TO REPAIR MANUAL,MARK6,(J),NO.2
REFER TO REPAIR MANUAL,MARK7,(J),NO.2
REFER TO REPAIR MANUAL,MARK 3,MARK 3,NO.1,(L)
REFER TO REPAIR MANUAL,MARK 4,(L),NO.1
REFER TO REPAIR MANUAL,MARK 5,MARK 5,NO.1,(L)
REFER TO REPAIR MANUAL,MARK 6,(L),NO.1
REFER TO REPAIR MANUAL,MARK 7,MARK 7,NO.1,(L)
REFER TO REPAIR MANUAL,MARK 1,(L),NO.1
REFER TO REPAIR MANUAL,MARK 2,(L),NO.1
REFER TO REPAIR MANUAL,MARK 3,(L),NO.1
REFER TO REPAIR MANUAL,MARK 4,(L),NO.1
REFER TO REPAIR MANUAL,MARK 5,(L),NO.1
REFER TO REPAIR MANUAL,MARK 6,(L),NO.1
REFER TO REPAIR MANUAL,MARK 7,(L),NO.1
REFER TO REPAIR MANUAL,MARK 1,(J),NO.1
REFER TO REPAIR MANUAL,MARK 2,(J),NO.1
REFER TO REPAIR MANUAL,MARK 3,(J),NO.1
REFER TO REPAIR MANUAL,MARK 4,(J),NO.1
REFER TO REPAIR MANUAL,MARK 5,MARK 5,NO.1,(J)
REFER TO REPAIR MANUAL,MARK 6,MARK 6,NO.1,(J)
REFER TO REPAIR MANUAL,MARK 7,MARK 7,NO.1,(J)
REFER TO REPAIR MANUAL,MARK1,(J),NO.1
REFER TO REPAIR MANUAL,MARK2,(J),NO.1
REFER TO REPAIR MANUAL,MARK3,(J),NO.1
REFER TO REPAIR MANUAL,MARK4,(J),NO.1
REFER TO REPAIR MANUAL,MARK5,(J),NO.1
REFER TO REPAIR MANUAL,MARK6,(J),NO.1
REFER TO REPAIR MANUAL,MARK7,(J),NO.1
13011RING SET, PISTON
STD,(L)
STD,(L)
STD,(J)
STD,(J)
13041BEARING, CONNECTING ROD
REFER TO REPAIR MANUAL,MARK 1,(L)
REFER TO REPAIR MANUAL,MARK 2,(L)
REFER TO REPAIR MANUAL,MARK 3,(L)
REFER TO REPAIR MANUAL,MARK 4,(L)
REFER TO REPAIR MANUAL,MARK 1,(J)
REFER TO REPAIR MANUAL,MARK 2,(J)
REFER TO REPAIR MANUAL,MARK 3,(J)
REFER TO REPAIR MANUAL,MARK 4,(J)
REFER TO REPAIR MANUAL,MARK1,(J)
REFER TO REPAIR MANUAL,MARK2,(J)
REFER TO REPAIR MANUAL,MARK3,(J)
REFER TO REPAIR MANUAL,MARK4,(J)
13101PISTON SUB-ASSY, W/PIN
STD,(L),LH
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(L)
(L)
(J)
(J)
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13411CRANKSHAFT
(L)
(J)
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
(L)
(J)
13567GUIDE, TIMING BELT, NO.2
15 parts on this diagram · 1 diagram in section
