Toyota AVALON — COWL PANEL & WINDSHIELD GLASS

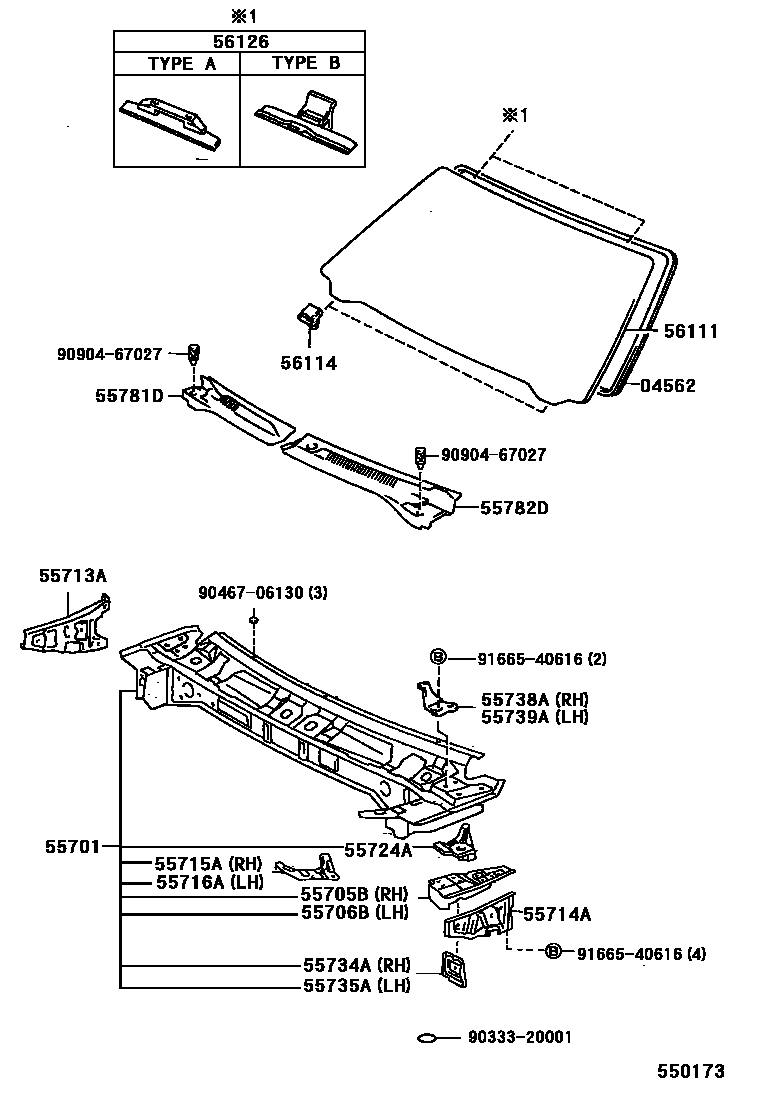

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main04562-12010i199409

55701PANEL SUB-ASSY, COWL

main55700-07010i199409

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-07010i199409

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-07010i199409

55713APANEL, COWL TOP SIDE, RH

main55713-07010i199409

55714APANEL, COWL TOP SIDE, LH

main55714-07010i199409

55715ABRACE, COWL TOP TO APRON, RH

main55715-33010i199409

55716ABRACE, COWL TOP TO APRON, LH

main55716-33010i199409

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-07010i199409

55734APLATE, WATER GUARD, RH

main55734-06010i199409

(L)

main55734-33010i199409

(J)

55735APLATE, WATER GUARD, LH

main55735-06010i199409

(L)

main55735-33010i199409

(J)

55738ASTOPPER, HOOD, RH

main55738-07010i199409

55739ASTOPPER, HOOD, LH

main55739-07010i199409

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-41010i199409

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-41010i199409

56111GLASS, WINDSHIELD

main56101-AC010i199409-199608

*TL,T=4.8,BLUE

main56101-AC020i199409-199508

*TL,T=4.8,BRONZE

main56101-AC040i199608-199709

*TL,T=4.8,GREEN

main56101-AC080i199709

*TL,T=4.8,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-06010×2i199409

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-22030i199409

TYPE A:REFER TO ILLUSTRATION

main56126-30010×2i199409-199709

TYPE B:REFER TO ILLUSTRATION

9033320001

main90333-20001

9046706130

main90467-06130

9090467027

main90904-67027

9166540616

main91665-40616

22 parts on this diagram · 1 diagram in section
