Toyota AVALON — CLEARANCE & BACK SONAR

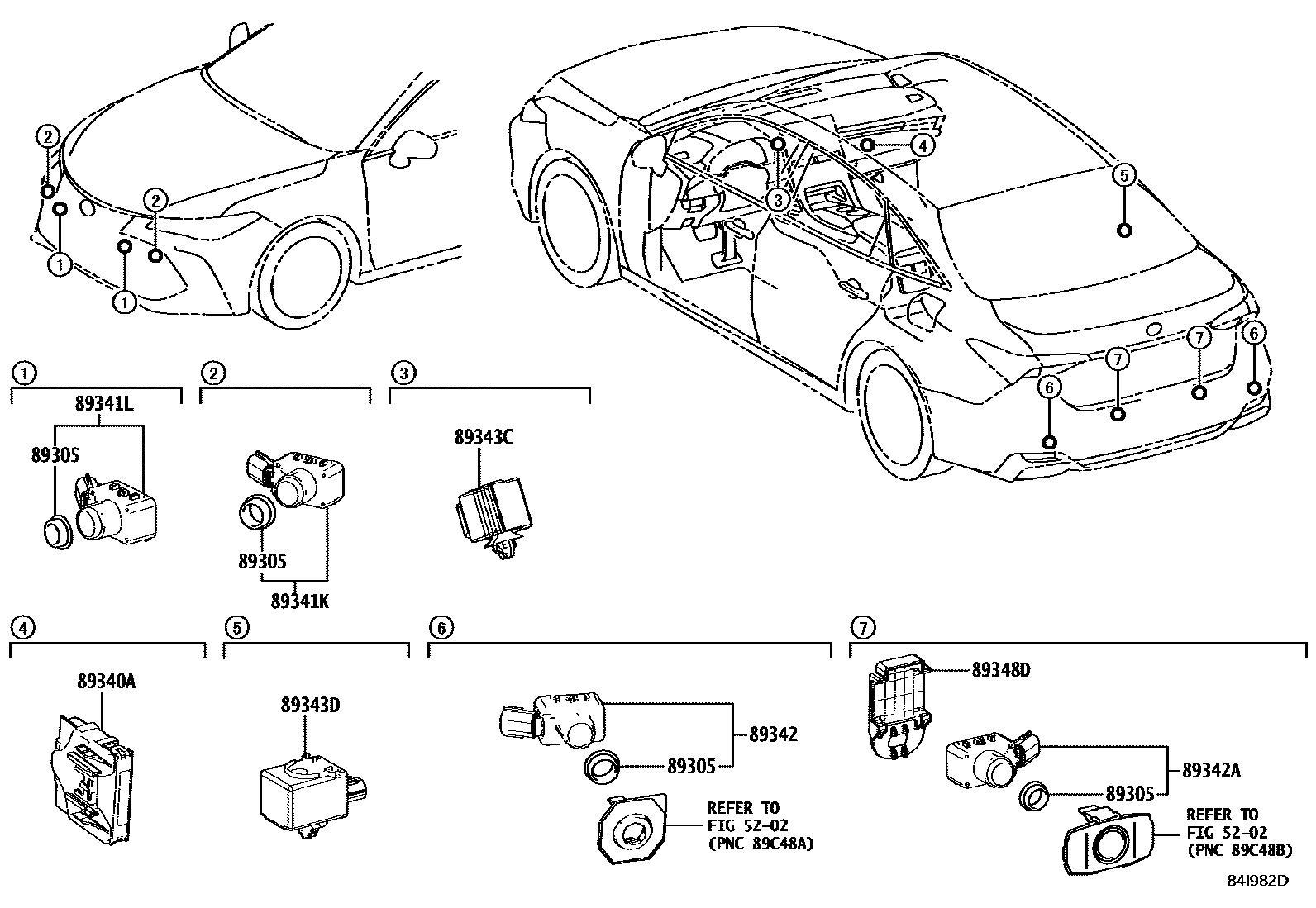

Parts diagram
5202REAR BUMPER & BUMPER STAY
→ Go to FIG 52-02
89305CUSHION SET, ULTRASONIC SENSOR
main89305-47010i201908-202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-07011i201804-201908
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA)
main89340-07012i202008-202108
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main89340-07013i202108
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main89340-07020i201805-202008
KOREA SPEC
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-06070-B8×2i202008-202107
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DK. GRAY,089 ,1J9 ,1K4,1K6 ,218 ,3T3 ,3U5 ,4X9 ,8X8
main89341-06070-C6×2i201908-202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,4X7 ,8W6
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-06070-C3×2i201804-201908
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),DUMMY-MAT BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,4X7 ,4X9 ,8W6
main89341-06070-C6×2i201804-201908
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,4X7 ,8W6
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-06070-A1×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM WHITE PEARL MC.,089; KOREA SPEC,PLATINUM WHITE PEARL MC.,089
main89341-06070-B1×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SILVER ME.,1J9; KOREA SPEC,SILVER ME.,1J9
main89341-06070-B2×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SLATE GRAY ME.,1K4; KOREA SPEC,SLATE GRAY ME.,1K4
main89341-06070-C0×2i201804-201908
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),ATTITUDE BLACK MC.,218
main89341-06070-D0×2i201908-202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),RED MC.,3T3
main89341-06070-D3×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),EMOTIONAL RED 2,3U5; KOREA SPEC,EMOTIONAL RED 2,3U5
main89341-06070-E0×2i201805-202008
KOREA SPEC,GRAPHITE ME.,4X7
main89341-06070-E1×2i201805-202008
KOREA SPEC,BLACKISH BROWN MC.,4X9
main89341-06070-J2×2i201908-202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DK.BLUE M.M.,8W6
main89341-06070-J6×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DK. BLUE MC.,8X8; KOREA SPEC,DK. BLUE MC.,8X8
main89341-06070-P3×2i202108
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),ASH GRAY ME.,1K6; KOREA SPEC,ASH GRAY ME.,1K6
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-06070-A1×2i201908-202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM WHITE PEARL MC.,089 ,1J9 ,1K4 ,218 ,3T3 ,4X7 ,8W6
main89341-06070-B1×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SILVER ME.,1J9; KOREA SPEC,SILVER ME.,1J9
main89341-06070-B2×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SLATE GRAY ME.,1K4; KOREA SPEC,SLATE GRAY ME.,1K4
main89341-06070-C0×2i201908-202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),ATTITUDE BLACK MC.,218
main89341-06070-D0×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),RED MC.,3T3; KOREA SPEC,RED MC.,3T3
main89341-06070-D3×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),EMOTIONAL RED 2,3U5; KOREA SPEC,EMOTIONAL RED 2,3U5
main89341-06070-E0×2i201908-202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE ME.,4X7
main89341-06070-E1×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACKISH BROWN MC.,4X9; KOREA SPEC,BLACKISH BROWN MC.,4X9
main89341-06070-J2×2i201804-201908
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),DK.BLUE M.M.,8W6
main89341-06070-J6×2i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DK. BLUE MC.,8X8; KOREA SPEC,DK. BLUE MC.,8X8
main89341-06070-P3×2i202108
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),ASH GRAY ME.,1K6; KOREA SPEC,ASH GRAY ME.,1K6
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-48010i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); KOREA SPEC
89343DBUZZER, CLEARANCE WARNING, NO.2
main89343-12020i202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); KOREA SPEC
89348DCLIP, ULTRASONIC SENSOR
main89348-06100×2i201908-202008
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)

10 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota AVALON

This section contains 10 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota AVALON. Key components include: REAR BUMPER & BUMPER STAY, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, FRONT CORNER, SENSOR, ULTRASONIC, FRONT CENTER.
