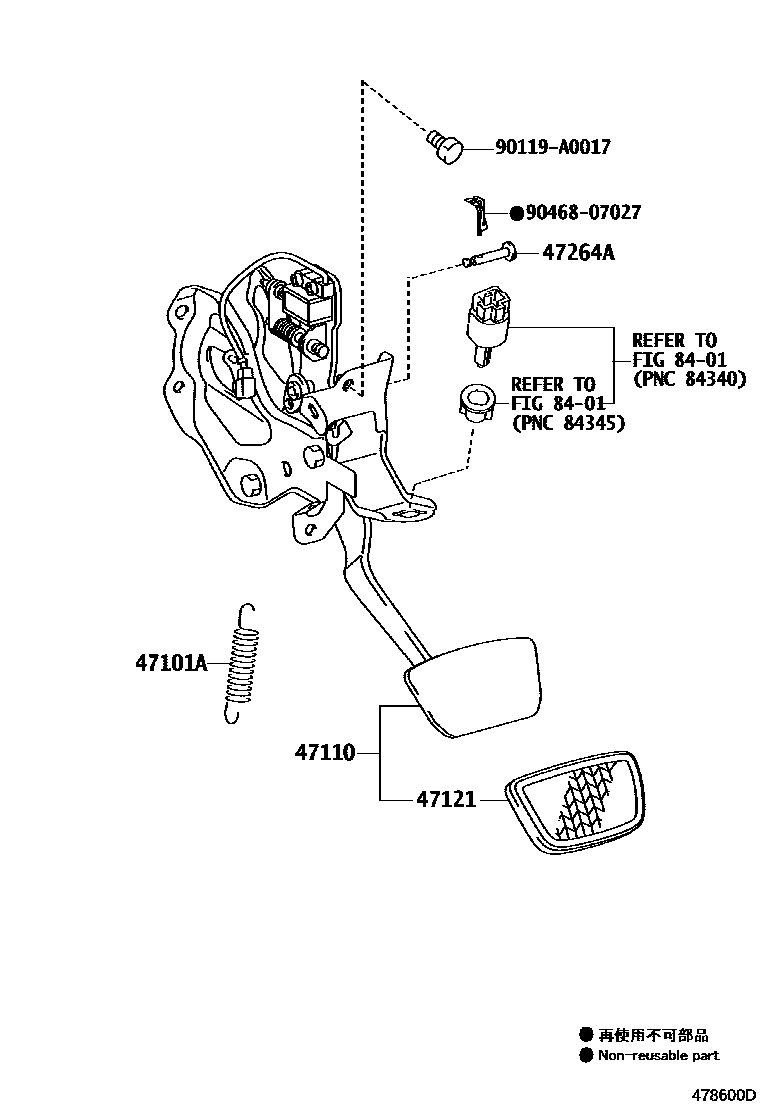

Toyota AVALON — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAVX40,GSX40201210-201510

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06270iGSX40201210-201612

sub47110-06271

main47110-06271iGSX40201701

main47110-06281iAVX40201211-201510

47121PAD, BRAKE PEDAL

main47121-0E010iAVX40,GSX40201210-201510

47264APIN(FOR PUSH ROD)

main90240-08081iAVX40201211-201510

main90249-06180iGSX40201210-201510

8401

90119A0017

main90119-A0017

9046807027

main90468-07027

7 parts on this diagram · 2 diagrams in section
