Toyota AVALON — ARMREST & VISOR

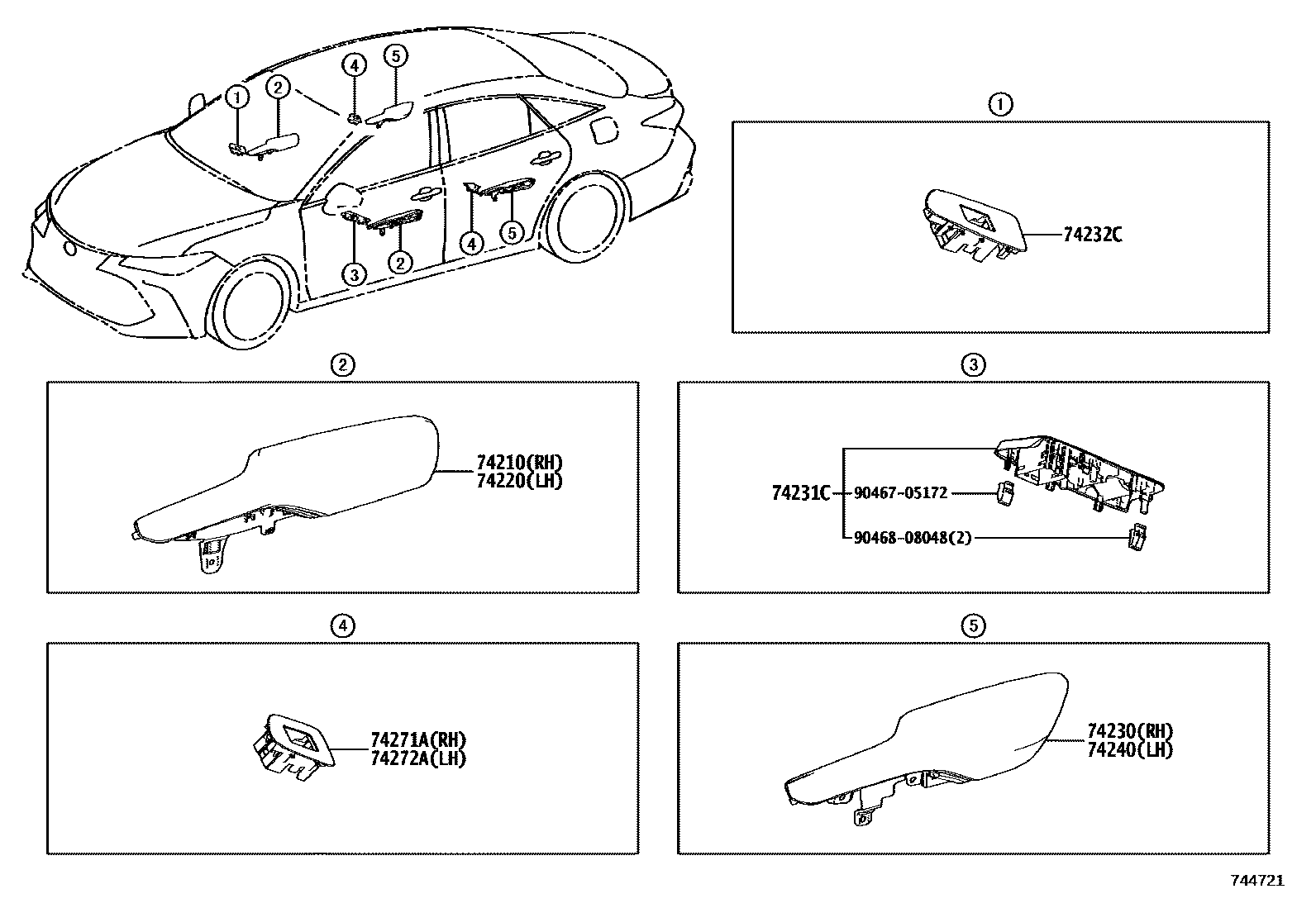

Parts diagram

74210ARMREST ASSY, FRONT, RH

main74210-07030-B2i201804-201910

GRAY+LT.GRAY,TRIM1#

main74210-07030-C0i201804-201908

BLACK+BLACK,TRIM2#

main74210-07030-C4i201908-201911

BLACK/RED,TRIM21

main74210-07030-E0i201804-201911

BEIGE+IVORY,TRIM4#

main74210-07030-E3i201804-201910

BROWN+AMBER,TRIM43

main74210-07031-B2i202008-202107

GRAY,TRIM1#,##

main74210-07031-C0i202001-202008

BLACK,TRIM20,##

main74210-07031-C4i202008-202107

BLACK/RED,TRIM21,##

main74210-07031-E0i202008-202107

NEUTRAL BEIGE,TRIM4#,##

main74210-07031-E3i202008-202107

BROWN,TRIM4#,##

74220ARMREST ASSY, FRONT, LH

main74220-07030-B2i201804-201910

GRAY+LT.GRAY,TRIM1#

main74220-07030-C0i201908-201911

BLACK+BLACK,TRIM2#

main74220-07030-C4i201908-201911

BLACK/RED,TRIM21

main74220-07030-E0i201804-201910

BEIGE+IVORY,TRIM40

main74220-07030-E3i201804-201910

BROWN+AMBER,TRIM43

main74220-07031-B2i202008-202107

GRAY,TRIM1#,##

main74220-07031-C0i202008-202107

BLACK,TRIM20,##

main74220-07031-C4i202008-202107

BLACK/RED,TRIM21,##

main74220-07031-E0i202002-202008

NEUTRAL BEIGE,TRIM4#,##

main74220-07031-E3i201911-202002

BROWN,TRIM4#,##

74230ARMREST ASSY, REAR, RH

main74250-07010-B2i201804-201911

GRAY+LT.GRAY,TRIM1#

main74250-07010-C0i201908-201911

BLACK+BLACK,TRIM2#

main74250-07010-C4i201908-201911

BLACK/RED,TRIM21

main74250-07010-E0i201804-201911

BEIGE+IVORY,TRIM4#

main74250-07010-E3i201804-201910

BROWN+AMBER,TRIM43

main74250-07011-B2i201912-202008

GRAY,TRIM1#,##

main74250-07011-C0i202001-202008

BLACK,TRIM20,##

main74250-07011-C4i202001-202008

BLACK/RED,TRIM21,##

main74250-07011-E0i202002-202008

NEUTRAL BEIGE,TRIM4#,##

main74250-07011-E3i202002-202008

BROWN,TRIM43,##

74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE

main74232-07050-B0i201804-202008

GRAY,TRIM1#

main74232-07050-C0i202008

BLACK,TRIM2#

main74232-07050-E0i202008

BROWN,TRIM4#

main74232-07050-E1i201804-202008

NEUTRAL BEIGE,TRIM4#

main74232-07060-B0i202008

KOREA SPEC,GRAY,TRIM1#

main74232-07060-C0i202008

KOREA SPEC,BLACK,TRIM2#

main74232-07060-E1i202008

KOREA SPEC,NEUTRAL BEIGE,TRIM4#

74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE

main74231-07050-B0i201804-202008

GRAY,TRIM1#

main74231-07050-C0i201804-202008

BLACK,TRIM10,2#

main74231-07050-E0i201804-202008

BROWN,TRIM43

main74231-07050-E1i202008-202107

NEUTRAL BEIGE,TRIM4#

main74231-07060-B0i202008

KOREA SPEC,GRAY,TRIM1#

main74231-07060-C0i201805-202008

KOREA SPEC,BLACK,TRIM2#

main74231-07060-E1i201805-202008

KOREA SPEC,NEUTRAL BEIGE,TRIM4#

74240ARMREST ASSY, REAR, LH

main74260-07010-B2i201908-201911

GRAY+LT.GRAY,TRIM1#

main74260-07010-C0i201908-201911

BLACK+BLACK,TRIM2#

main74260-07010-C4i201908-201911

BLACK/RED,TRIM21

main74260-07010-E0i201804-201911

BEIGE+IVORY,TRIM4#

main74260-07010-E3i201804-201910

BROWN+AMBER,TRIM43

main74260-07011-B2i201912-202008

GRAY,TRIM1#,##

main74260-07011-C0i202001-202008

BLACK,TRIM20,##

main74260-07011-C4i202008-202107

BLACK/RED,TRIM21,##

main74260-07011-E0i202008

NEUTRAL BEIGE,TRIM4#,##

main74260-07011-E3i202002-202008

BROWN,TRIM43,##

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-07050-B0i201804-202008

GRAY,TRIM1#

main74271-07050-C0i202008-202107

BLACK,TRIM2#

main74271-07050-E0i202008

BROWN,TRIM4#

main74271-07050-E1i201804-202008

NEUTRAL BEIGE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-07050-B0i201804-202008

GRAY,TRIM1#

main74272-07050-C0i201804-202008

BLACK,TRIM10,2#

main74272-07050-E0i202008-202107

BROWN,TRIM4#

main74272-07050-E1i201804-202008

NEUTRAL BEIGE,TRIM4#

9046705172

main90467-05172

9046808048

main90468-08048

10 parts on this diagram · 2 diagrams in section
