Toyota AVALON — ARMREST & VISOR

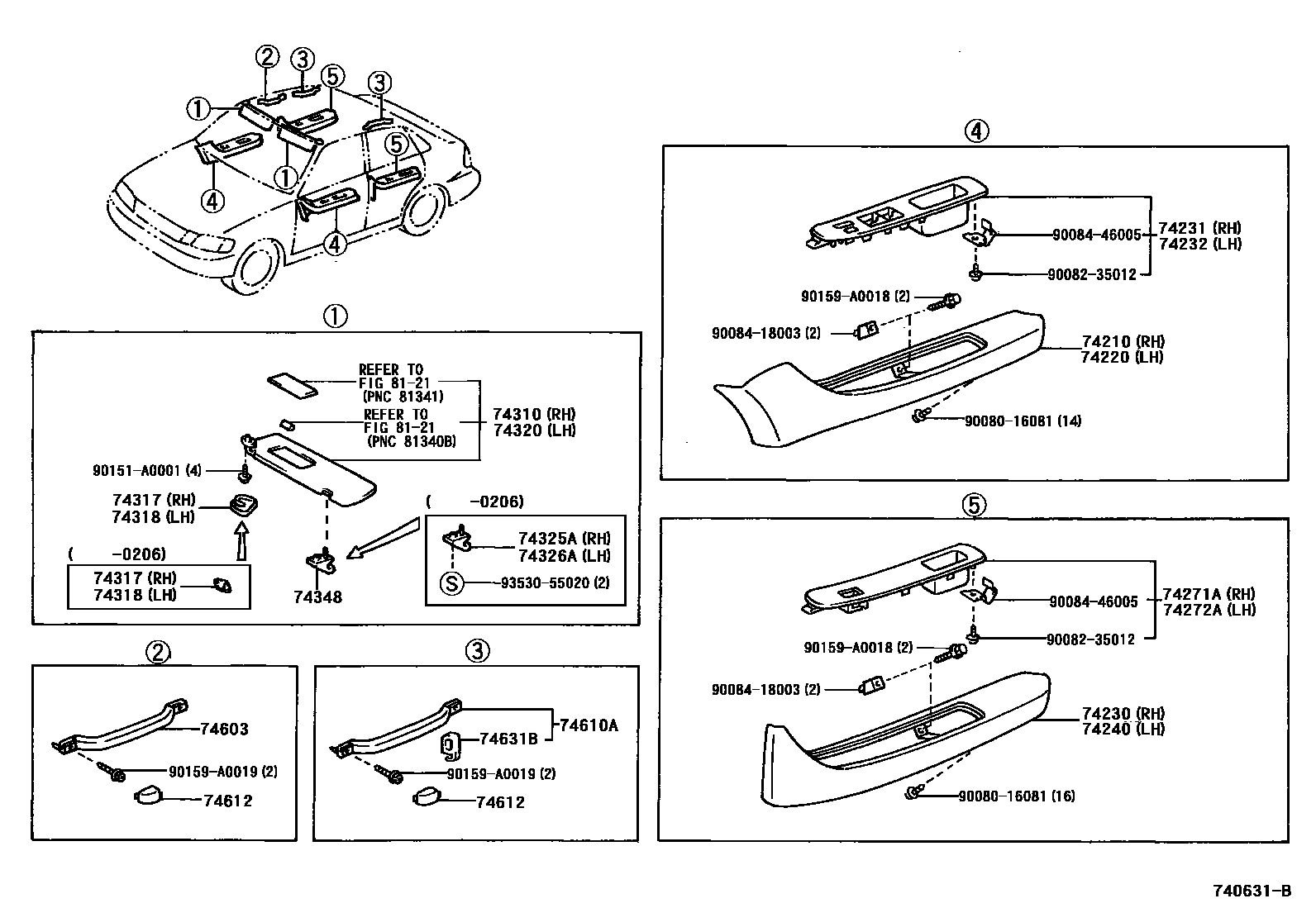

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-AC040-A0i199908-200206
IVORY,TRIM0#
main74210-AC040-B0i199908-200206
STONE,TRIM1#
main74210-AC040-E0i199908-200206
FAWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74220-AC040-A0i200206-200501
IVORY,TRIM0#
main74220-AC040-B0i199908-200206
STONE,TRIM1#
main74220-AC040-E0i200206-200501
FAWN,TRIM4#
74230ARMREST ASSY, REAR, RH
main74250-AC020-A0i200206-200501
IVORY,TRIM0#
main74250-AC020-B0i199908-200206
STONE,TRIM1#
main74250-AC020-E0i200206-200501
FAWN,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-AC050-A0i200206-200501
IVORY,TRIM0#
main74231-AC050-B0i199908-200206
STONE,TRIM1#
main74231-AC050-E0i199908-200206
FAWN,TRIM4#
main74231-AC060i200206-200501
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-AC050-A0i200206-200501
IVORY,TRIM0#
main74232-AC050-B0i200206-200501
STONE,TRIM1#
main74232-AC050-E0i200206-200501
FAWN,TRIM4#
main74232-AC060i199908-200206
74240ARMREST ASSY, REAR, LH
main74260-AC020-A0i199908-200206
IVORY,TRIM0#
main74260-AC020-B0i200206-200501
STONE,TRIM1#
main74260-AC020-E0i199908-200206
FAWN,TRIM4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-AC020-A0i199908-200206
IVORY,TRIM0#
main74271-AC020-B0i200206-200501
STONE,TRIM1#
main74271-AC020-E0i199908-200206
FAWN,TRIM4#
main74271-AC030i199908-200206
main74271-AC040i200004-200206
COLD SPEC
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-AC020-A0i200206-200501
IVORY,TRIM0#
main74272-AC020-B0i199908-200206
STONE,TRIM1#
main74272-AC020-E0i199908-200206
FAWN,TRIM4#
main74272-AC030i199908-200206
main74272-AC040i200004-200206
COLD SPEC
74310VISOR ASSY, RH
main74310-AC180-A0i199908-200009
IVORY,TRIM0#
main74310-AC180-B0i199908-200009
STONE,TRIM1#
main74310-AC180-E0i199908-200009
FAWN,TRIM4#
main74310-AC181-A0i200009-200206
IVORY,TRIM0#
main74310-AC181-B0i200009-200206
STONE,TRIM1#
main74310-AC181-E0i200009-200206
FAWN,TRIM4#
main74310-AC190-A0i199908-200009
W(MOON ROOF),IVORY,TRIM0#
main74310-AC190-B0i199908-200009
W(MOON ROOF),STONE,TRIM1#
main74310-AC190-E0i199908-200009
W(MOON ROOF),FAWN,TRIM4#
main74310-AC191-A0i200009-200206
W(MOON ROOF),IVORY,TRIM0#
main74310-AC191-B0i200009-200206
W(MOON ROOF),STONE,TRIM1#
main74310-AC191-E0i200009-200206
W(MOON ROOF),FAWN,TRIM4#
main74310-AC260-A0i200206-200210
IVORY,TRIM0#
main74310-AC260-B0i200206-200210
STONE,TRIM1#
main74310-AC260-E0i200206-200210
FAWN,TRIM4#
main74310-AC261-A0i200210-200501
IVORY,TRIM0#
main74310-AC261-B0i200210-200501
STONE,TRIM1#
main74310-AC261-E0i200210-200501
FAWN,TRIM4#
74317COVER, VISOR BRACKET, RH
main74317-AC010-A1i200206-200501
IVORY,TRIM0#
main74317-AC010-B5i200206-200501
STONE,TRIM1#
main74317-AC010-E2i200206-200501
FAWN,TRIM4#
main74317-AC020-A0i199908-200206
IVORY,TRIM0#
main74317-AC020-B0i199908-200206
STONE,TRIM1#
main74317-AC020-E0i199908-200206
FAWN,TRIM4#
74318COVER, VISOR BRACKET, LH
main74317-AC010-A1i200206-200501
IVORY,TRIM0#
main74317-AC010-B5i200206-200501
STONE,TRIM1#
main74317-AC010-E2i200206-200501
FAWN,TRIM4#
main74317-AC020-A0i199908-200206
IVORY,TRIM0#
main74317-AC020-B0i199908-200206
STONE,TRIM1#
main74317-AC020-E0i199908-200206
FAWN,TRIM4#
74320VISOR ASSY, LH
main74320-AC110-A0i199908-200009
IVORY,TRIM0#
main74320-AC110-B0i199908-200009
STONE,TRIM1#
main74320-AC110-E0i199908-200009
FAWN,TRIM4#
main74320-AC111-A0i200009-200206
IVORY,TRIM0#
main74320-AC111-B0i200009-200206
STONE,TRIM1#
main74320-AC111-E0i200009-200206
FAWN,TRIM4#
main74320-AC180-A0i199908-200009
W(MOON ROOF),IVORY,TRIM0#
main74320-AC180-B0i199908-200009
W(MOON ROOF),STONE,TRIM1#
main74320-AC180-E0i199908-200009
W(MOON ROOF),FAWN,TRIM4#
main74320-AC181-A0i200009-200206
W(MOON ROOF),IVORY,TRIM0#
main74320-AC181-B0i200009-200206
W(MOON ROOF),STONE,TRIM1#
main74320-AC181-E0i200009-200206
W(MOON ROOF),FAWN,TRIM4#
main74320-AC190-A0i199908-200009
W(GARAGE DOOR OPENER),IVORY,TRIM0#
main74320-AC190-B0i199908-200009
W(GARAGE DOOR OPENER),STONE,TRIM1#
main74320-AC190-E0i199908-200009
W(GARAGE DOOR OPENER),FAWN,TRIM4#
main74320-AC191-A0i200009-200206
W(GARAGE DOOR OPENER),IVORY,TRIM0#
main74320-AC191-B0i200009-200206
W(GARAGE DOOR OPENER),STONE,TRIM1#
main74320-AC191-E0i200009-200206
W(GARAGE DOOR OPENER),FAWN,TRIM4#
main74320-AC200-A0i199908-200009
W(GARAGE DOOR OPENER & MOON ROOF),IVORY,TRIM0#
main74320-AC200-B0i199908-200009
W(GARAGE DOOR OPENER & MOON ROOF),STONE,TRIM1#
main74320-AC200-E0i199908-200009
W(GARAGE DOOR OPENER & MOON ROOF),FAWN,TRIM4#
main74320-AC201-A0i200009-200206
W(GARAGE OPENER & MOON ROOF),IVORY,TRIM0#
main74320-AC201-B0i200009-200206
W(GARAGE OPENER & MOON ROOF),STONE,TRIM1#
main74320-AC201-E0i200009-200206
W(GARAGE OPENER & MOON ROOF),FAWN,TRIM4#
main74320-AC250-A0i200206-200210
IVORY,TRIM0#
main74320-AC250-B0i200206-200210
STONE,TRIM1#
main74320-AC250-E0i200206-200210
FAWN,TRIM4#
main74320-AC251-A0i200210-200501
IVORY,TRIM0#
main74320-AC251-B0i200210-200501
STONE,TRIM1#
main74320-AC251-E0i200210-200501
FAWN,TRIM4#
main74320-AC260-A0i200206-200210
W(GARAGE DOOR OPENER),IVORY,TRIM0#
main74320-AC260-B0i200206-200210
W(GARAGE DOOR OPENER),STONE,TRIM1#
main74320-AC260-E0i200206-200210
W(GARAGE DOOR OPENER),FAWN,TRIM4#
main74320-AC261-A0i200210-200501
W(GARAGE DOOR OPENER),IVORY,TRIM0#
main74320-AC261-B0i200210-200501
W(GARAGE DOOR OPENER),STONE,TRIM1#
main74320-AC261-E0i200210-200501
W(GARAGE DOOR OPENER),FAWN,TRIM4#
74325ASUPPORT, FRONT VISOR, NO.1
main74325-AC010-A0i199908-200206
IVORY,TRIM0#
main74325-AC010-B0i199908-200206
STONE,TRIM1#
main74325-AC010-E0i199908-200206
FAWN,TRIM4#
74326ASUPPORT, FRONT VISOR, NO.2
main74326-AC010-A0i199908-200206
IVORY,TRIM0#
main74326-AC010-B0i199908-200206
STONE,TRIM1#
main74326-AC010-E0i199908-200206
FAWN,TRIM4#
74348HOLDER, VISOR
main74348-12040-A0×2i200206-200501
IVORY,TRIM0#
main74348-12040-B3×2i200206-200501
STONE,TRIM1#
main74348-12040-E0×2i200206-200501
FAWN,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-AC050-A0i199908-200206
IVORY,TRIM0#
main74610-AC050-B0×2i200206-200501
STONE,TRIM1#
main74610-AC050-E0×2i200206-200501
FAWN,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74610-AC040-A0×2i199908-200206
IVORY,TRIM0#
main74610-AC040-B0×2i200206-200501
STONE,TRIM1#
main74610-AC040-E0×2i200206-200501
FAWN,TRIM4#
74612COVER, ASSIST GRIP
main74612-AC010-A0×8i200206-200501
IVORY,TRIM0#
main74612-AC010-B0×8i199908-200206
STONE,TRIM1#
main74612-AC010-E0×8i199908-200206
FAWN,TRIM4#
74631BHOOK, COAT
main74631-AA010-A1×2i199908-200206
IVORY,TRIM0#
main74631-AA010-B2×2i199908-200206
STONE,TRIM1#
main74631-AA010-E0×2i199908-200206
FAWN,TRIM4#
8121
9008016081
main90080-16081
9008235012
main90082-35012
9008418003
main90084-18003
9008446005
main90084-46005
90151A0001
main90151-A0001
90159A0018
main90159-A0018
90159A0019
main90159-A0019
9353055020
main93530-55020

28 parts on this diagram · 1 diagram in section
