Toyota AVALON — ANTENNA

86011MFILTER, NOISE

main90084-98029i199908-200206

86101CORD SUB-ASSY, ANTENNA

main86101-AC130i199908-200107

main86101-AC131i200107-200206

main86101-AC132i200206

main86101-AC160i199908-200107

DIVERSITY ANTENNA

main86101-AC161i200107-200206

DIVERSITY ANTENNA

main86101-AC162i200206

DIVERSITY ANTENNA

86203VWIRE SUB ASSY, RADIO

main86203-AC010i199908-200206

86860CANTENNA ASSY, NAVIGATION

main86860-41021i200206

9008011152

main90080-11152

9011906067

main90119-06067

9011906390

main90119-06390

90178A0014

main90178-A0014

8 parts on this diagram · 1 diagram in section

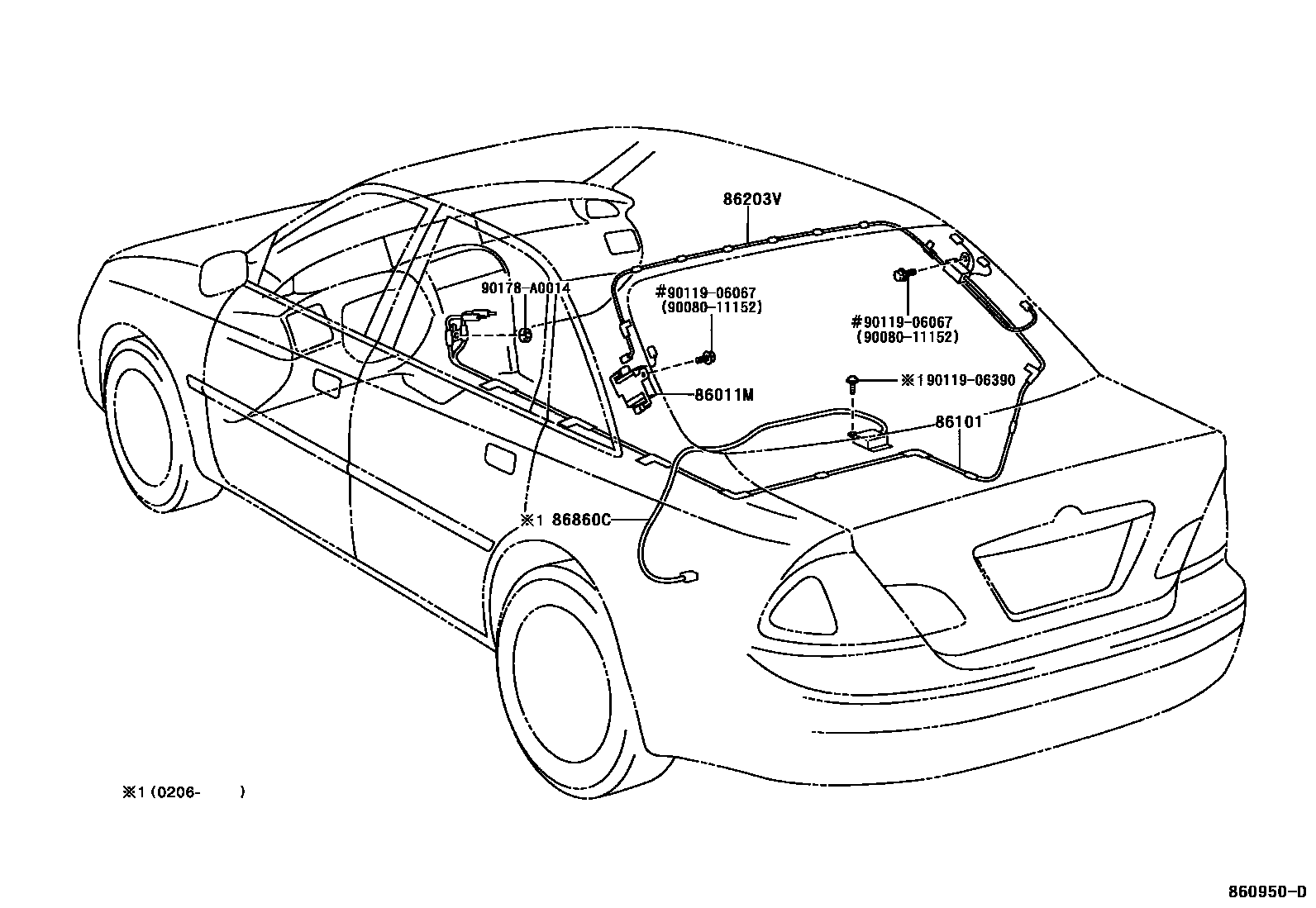

ANTENNA for Toyota AVALON

This section contains 8 genuine Toyota parts for the ANTENNA system of the Toyota AVALON. Key components include: FILTER, NOISE, CORD SUB-ASSY, ANTENNA, WIRE SUB ASSY, RADIO, ANTENNA ASSY, NAVIGATION.
