Toyota AVALON — ALTERNATOR

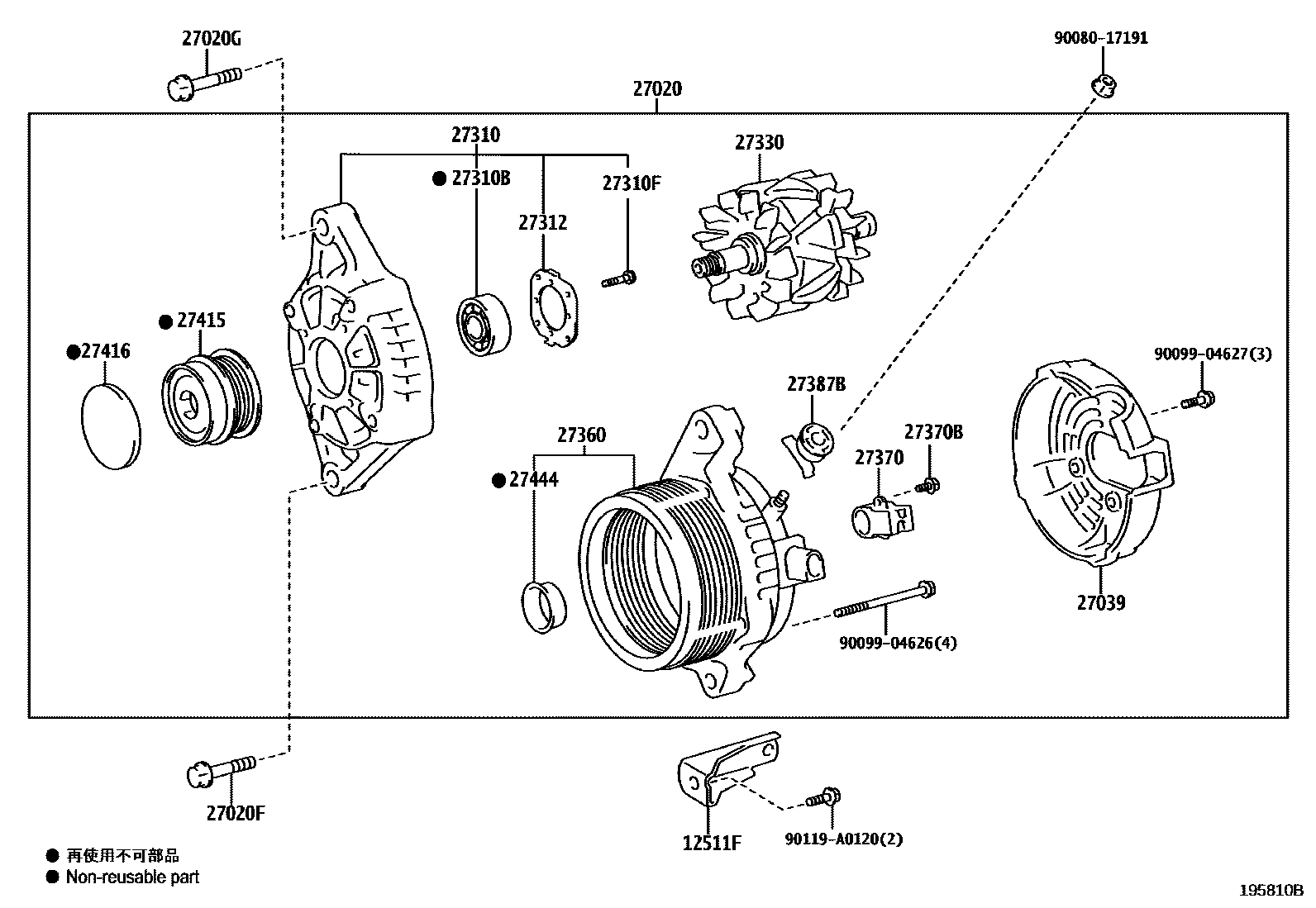

Parts diagram

12511FBRACKET, ALTERNATOR, NO.1

main12511-0P070201804-202107

27020ALTERNATOR ASSY

main27060-0P410201804-202107

main27060-0P440201804-202008

main27060-F0010202008-202107

main27060-F0040202008-202107

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-A0107201804-202107

27020GBOLT, NO.2(FOR ALTERNATOR)

main90105-A0324201804-202107

main91552-81095201804-202107

27039COVER, ALTERNATOR REAR END

main27039-0C170201804-202107

main27039-37220201804-201812

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P460201804-202107

main27310-0P500201812-202008

main27310-31600201804-201812

main27310-F0010202008-202107

main27310-F2020202008-202107

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033201804-202107

main90099-10223201804-201812

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90068-00022201812-202107

main90099-00268201804-202107

27312PLATE, RETAINER

main27312-72100201804-202107

27330ROTOR ASSY, ALTERNATOR

main27330-0C170201804-202107

main27330-0P400201812-202107

main27330-37220201804-201812

27360COIL ASSY, ALTERNATOR

main27360-0P350202005-202107

main27360-0P460201804-202005

main27360-0P490202005-202008

main27360-0P500201812-202005

main27360-31600201804-201812

main27360-F0010202008-202107

main27360-F2020202008-202107

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0V160201804-202107

main27370-31220201804-201812

27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)

main90068-00023201804-202107

main90099-00197201804-201812

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130201804-202107

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P020201804-202107

main27415-F0010202008-202107

27416CAP, ALTERNATOR PULLEY

main27416-0W050201804-202107

27444PACKING, ALTERNATOR BEARING COVER

main27444-0C170201804-202107

main27444-21190201804-201812

9008017191

main90080-17191

9009904626

main90099-04626

9009904627

main90099-04627

90119A0120

main90119-A0120

21 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota AVALON

This section contains 25 genuine Toyota parts for the ALTERNATOR system of the Toyota AVALON. Key components include: BRACKET, ALTERNATOR, NO.1, ALTERNATOR ASSY, BOLT, NO.1(FOR ALTERNATOR), BOLT, NO.2(FOR ALTERNATOR), COVER, ALTERNATOR REAR END.
