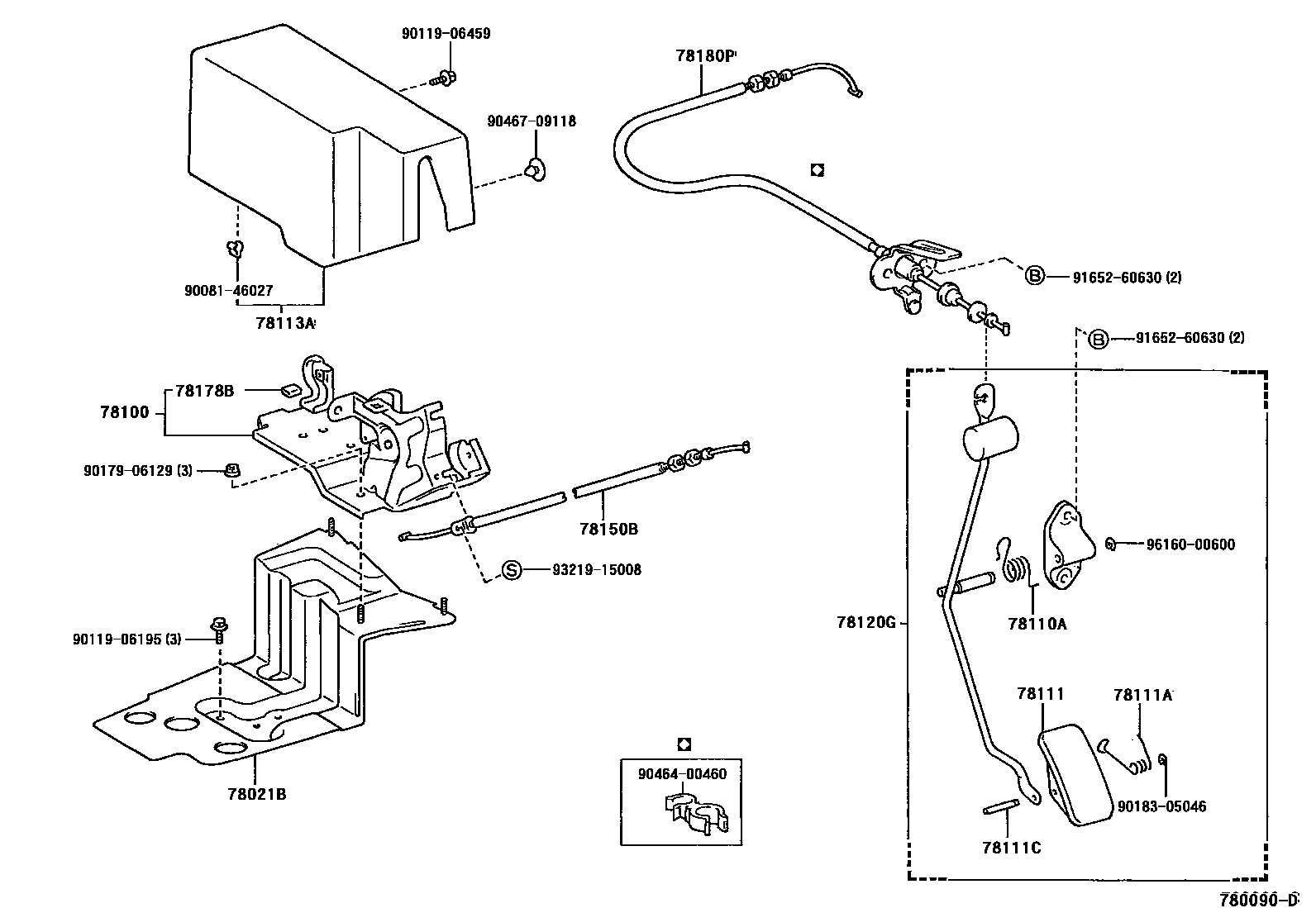

Toyota AVALON — ACCELERATOR LINK

78021BBRACKET SUB-ASSY, ACCEL CONTROL BELLCRANK

main78021-33010iMCX10199409-199608

78100LINK ASSY, ACCELERATOR

main78100-33010iMCX10199409-199608

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03004iMCX10199409

78111PEDAL, ACCELERATOR

main78111-32010iMCX10199409-199709

main78111-33030iMCX10199709

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iMCX10199409

78111CPIN (FOR ACCELERATOR PEDAL)

main90241-05022iMCX10199709

main90249-05001iMCX10199409-199709

78113ACOVER, AUTO DRIVE ACCELERATOR LINK

main78113-06010iMCX10199409-199709

78120GROD ASSY, ACCELERATOR PEDAL

main78120-41010iMCX10199409

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-06010iMCX10199612

(L)

main78150-33050iMCX10199409-199608

main78150-33080iMCX10199608

(J)

78178BDAMPER, ACCEL CONTROL NO.4 ROD BRACKET

main78178-14010iMCX10199409-199608

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-06030iMCX10199409-199608

main78180-06130iMCX10199608

9008146027

main90081-46027

9011906195

main90119-06195

9011906459

main90119-06459

9017906129

main90179-06129

9018305046

main90183-05046

9046400460

main90464-00460

9046709118

main90467-09118

9165260630

main91652-60630

9321915008

main93219-15008

9616000600

main96160-00600

21 parts on this diagram · 1 diagram in section
