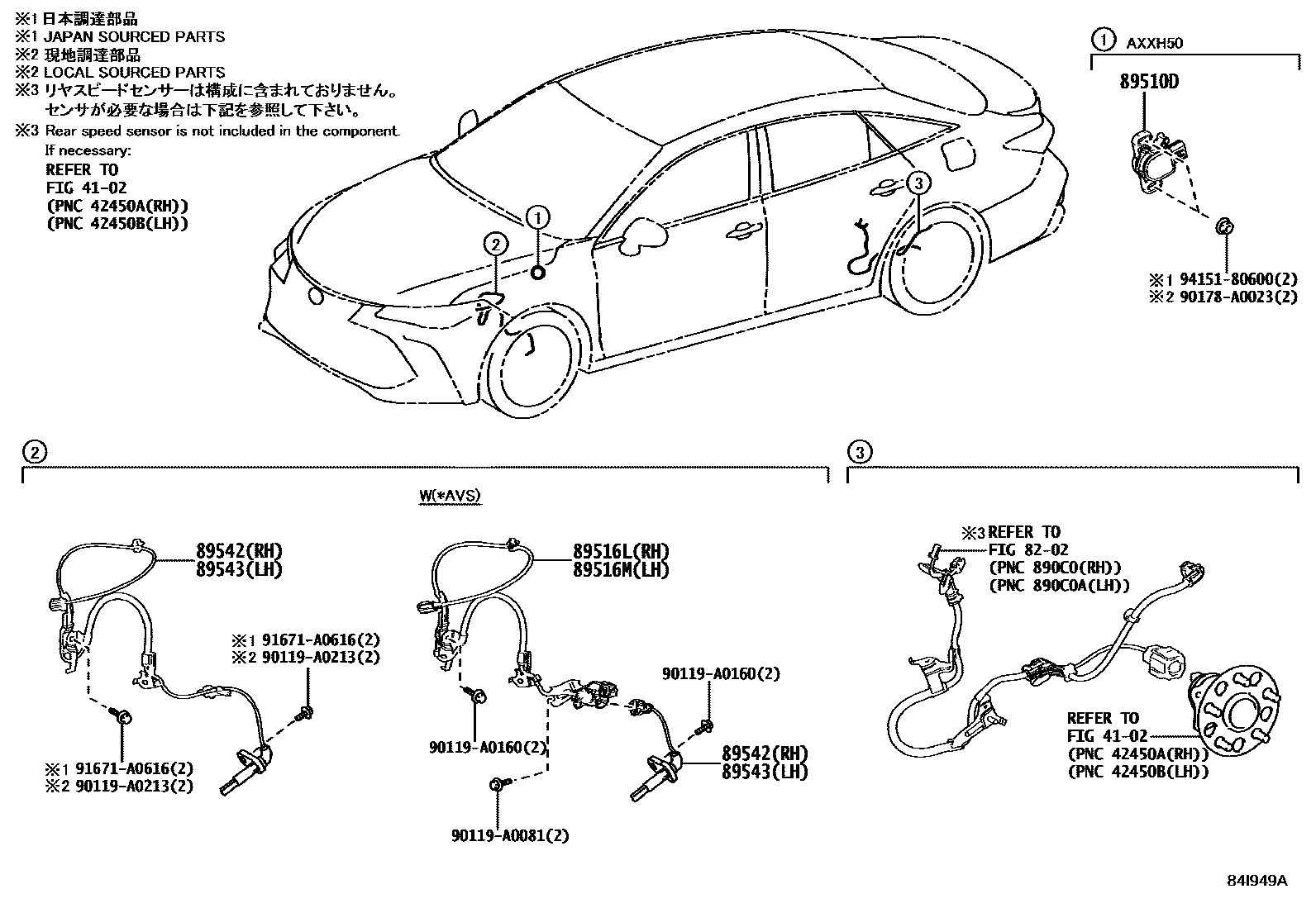

Toyota AVALON — ABS & VSC

0001 1 0002 1

4102

8202

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47040iAXXH50201805-202008

89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH

main89516-33111iGSX50..TOU201804-202008

89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH

main89516-33121iGSX50..TOU202008

89542SENSOR, SPEED, FRONT RH

main89542-06081iAXXH50,GSX50..LIMD,XLE,XSE201804-202008

main89542-06131iGSX50..TOU201804-201806

main89542-06132iGSX50..TOU202008

DENSO

main89542-33151iGSX50..TOU201807-202008

AISIN

89543SENSOR, SPEED, FRONT LH

main89543-06081iAXXA55;GSX50..XSE202008-202107

main89543-06131iGSX50..TOU201804-201806

main89543-06132iGSX50..TOU202008

DENSO

main89543-33141iGSX50..TOU202008

AISIN

90119A0081

main90119-A0081

90119A0160

main90119-A0160

90119A0213

main90119-A0213

90178A0023

main90178-A0023

91671A0616

main91671-A0616

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
