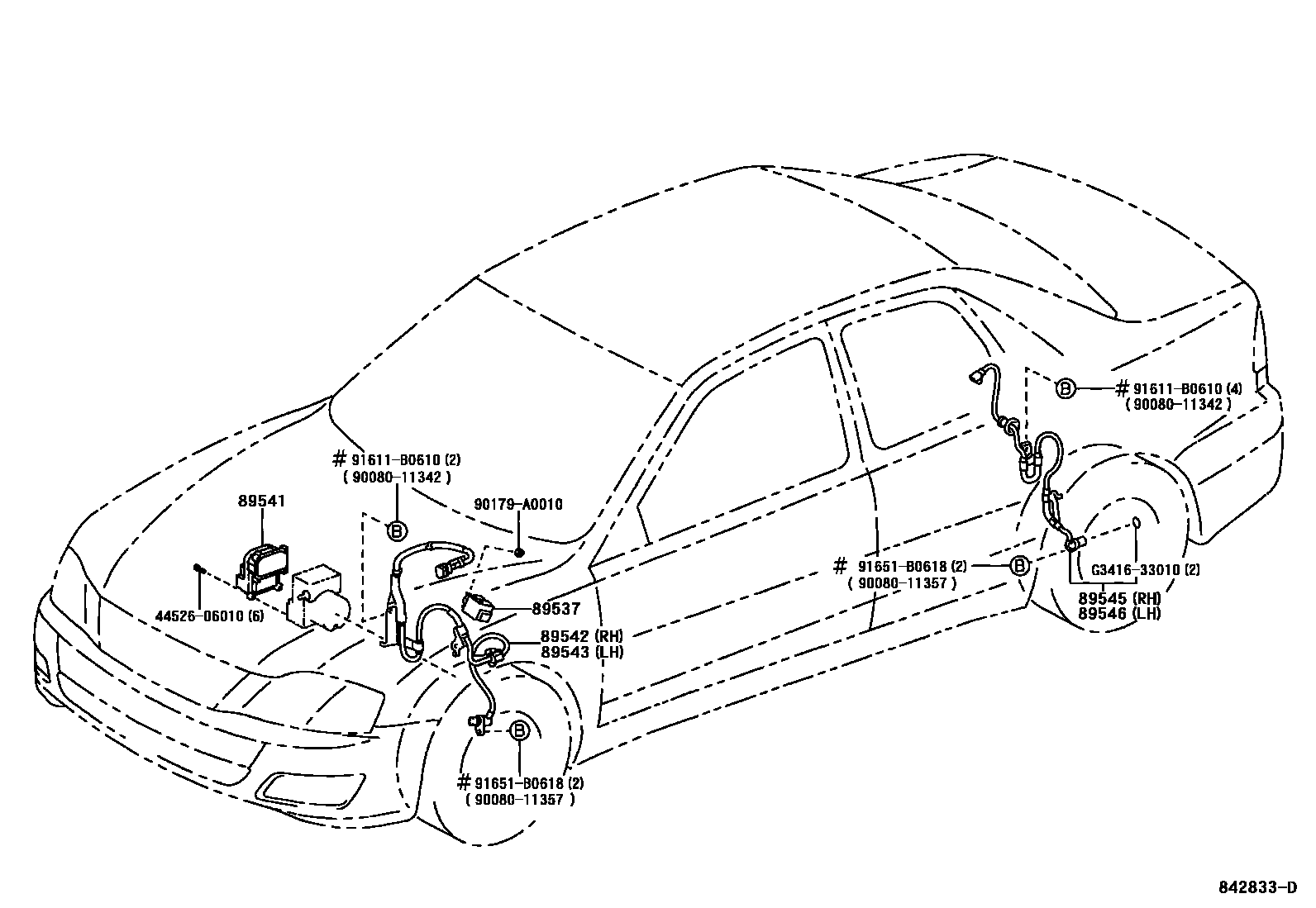

Toyota AVALON — ABS & VSC

0001 1 0002 1W(VSC)

89537RELAY, ACTIVE LAMP

main89537-41020iMCX20199908-200206

89541COMPUTER, SKID CONTROL

main89541-07020iMCX20200206-200501

main89541-07030iMCX20199908-200206

W(VSC)

main89541-07040iMCX20200206-200501

W(VSC)

89542SENSOR, SPEED, FRONT RH

main89542-07010iMCX20199908-200206

89543SENSOR, SPEED, FRONT LH

main89543-07010iMCX20199908-200206

89545SENSOR, SPEED, REAR RH

main89545-33020iMCX20200206-200501

89546SENSOR, SPEED, REAR LH

main89546-33020iMCX20200206-200501

4452606010SEAT, G VALVE

main44526-06010

9008011342

main90080-11342

9008011357

main90080-11357

90179A0010

main90179-A0010

91611B0610

main91611-B0610

91651B0618

main91651-B0618

G341633010

mainG3416-33010

13 parts on this diagram · 2 diagrams in section
