Toyota AVALON — STANDARD TOOL

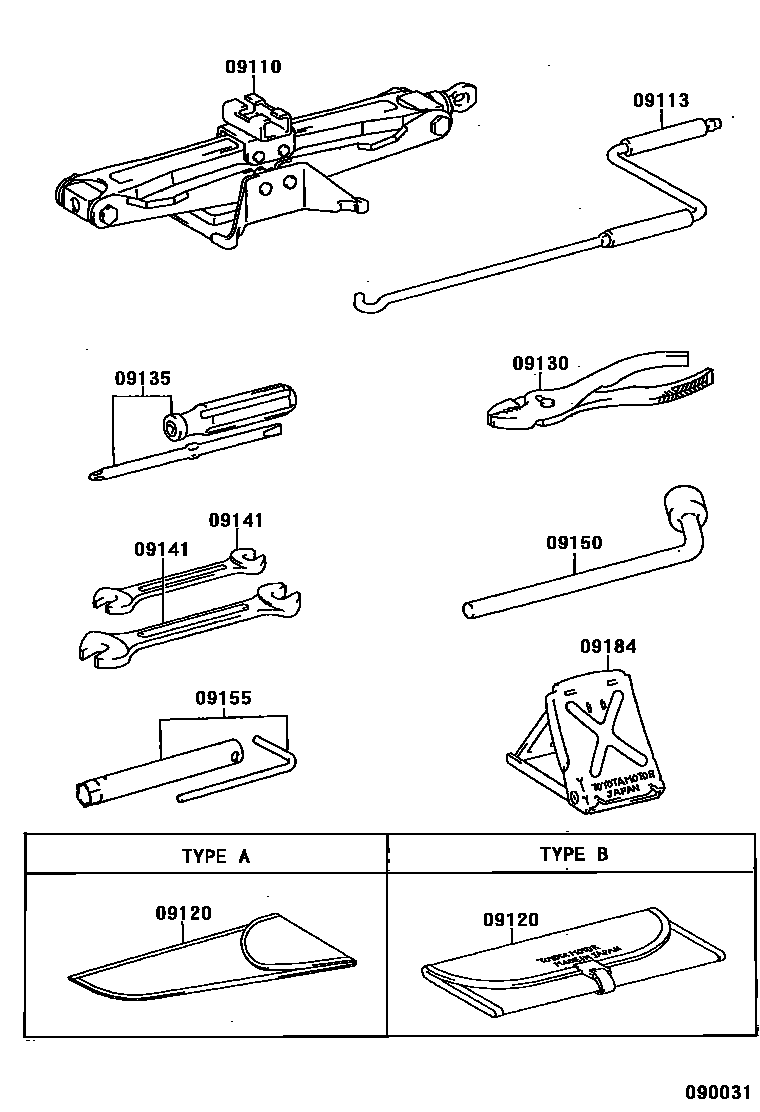

Parts diagram

09110JACK ASSY

main09111-06010i199503

09113HANDLE, JACK

main09113-06010i199503-199608

main09113-06020i199608

09120BAG, TOOL

main09120-01020i199503

main09120-16030i199503

09130PLIERS

main99913-11500i199503

09135DRIVER, SCREW

main99915-10700i199503

09141SPANNER

main99914-10810i199503

main99914-11214i199503

09150WRENCH, HUB NUT BOX

main09150-02020i199503

09155WRENCH, SPARK PLUG

main09155-74020i199509-199709

09184STOPPER, WHEEL

main09184-00010i199503

9 parts on this diagram · 1 diagram in section
