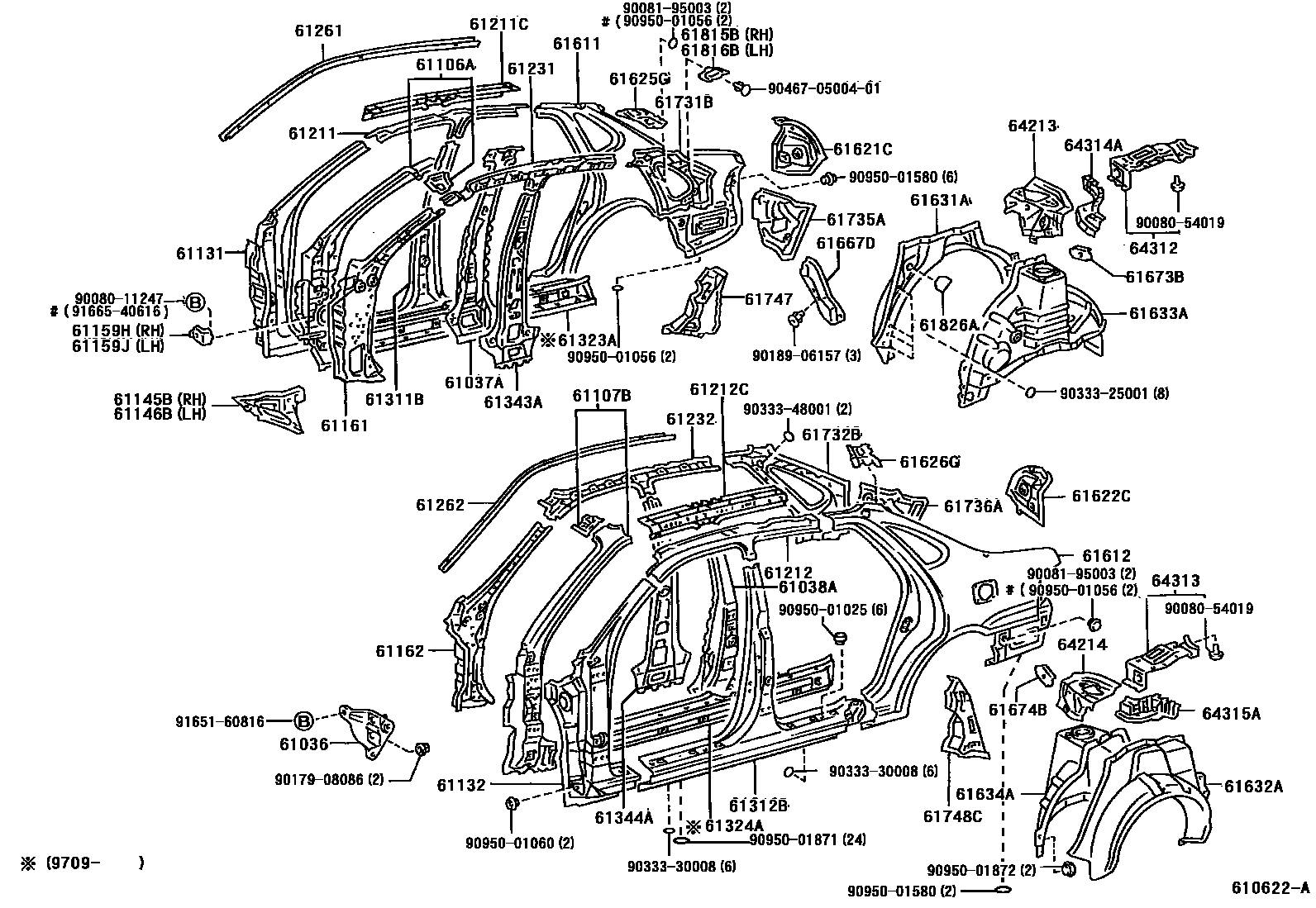

Toyota AVALON — SIDE MEMBER
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61159HBRACKET, COWL SIDE PANEL TO FENDER APRON, RH
61159JBRACKET, COWL SIDE PANEL TO FENDER APRON, LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61211CRAIL, ROOF SIDE, RH
61212CRAIL, ROOF SIDE, LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61611PANEL, QUARTER, RH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61667DSEAL, QUARTER PANEL
61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61826APLATE, NOISE CONTROL, NO.3
64213EXTENSION, PACKAGE TRAY STRAINER, RH
64214EXTENSION, PACKAGE TRAY STRAINER, LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
9008011247
main90080-11247
9008054019
main90080-54019
9008195003
main90081-95003
9017908086
main90179-08086
9018906157
main90189-06157
9033325001
main90333-25001
9033330008
main90333-30008
9033348001
main90333-48001
904670500401
main90467-0500401
9095001025
main90950-01025
9095001056
main90950-01056
9095001060
main90950-01060
9095001580
main90950-01580
9095001871
main90950-01871
9095001872
main90950-01872
9165160816
main91651-60816
9166540616
main91665-40616
72 parts on this diagram · 1 diagram in section
SIDE MEMBER for Toyota AVALON
This section contains 72 genuine Toyota parts for the SIDE MEMBER system of the Toyota AVALON. Key components include: BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH, REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH, REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH.
