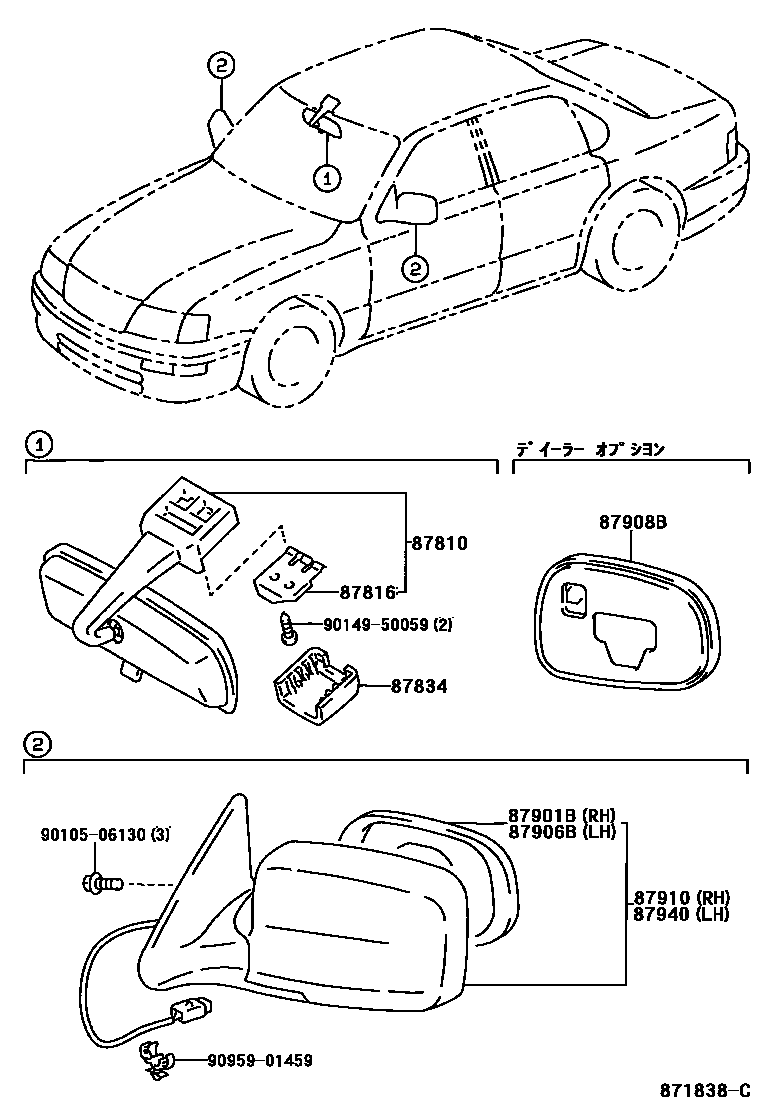

Toyota AVALON — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
QUARTZ,TRIM4#
LI, ADOBE,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
ADOBE,TRIM4#
QUARTZ,TRIM4#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87908BMIRROR SUB-ASSY, RH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SU.WHITE PM,051
DK.TEAL GREEN MC.,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
SU.WHITE PM,28Y
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L3
87940MIRROR ASSY, OUTER REAR VIEW, LH
SU.WHITE PM,051
DK.TEAL GREEN MC.,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
SU.WHITE PM,28Y
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L3
9010506130
main90105-06130
9014950059
main90149-50059
9095901459
main90959-01459
11 parts on this diagram · 1 diagram in section
