Toyota AVALON — MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
ADOBE,TRIM4#
QUARTZ,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM4#
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
6256712010COVER, QUARTER TRIM, REAR LOWER RH
main62567-12010
62567AA010COVER, QUARTER TRIM, REAR LOWER RH
main62567-AA010
6792306010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-06010
6792332010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-32010
67923AC010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-AC010
9008011247
main90080-11247
9015950138
main90159-50138
9166540616
main91665-40616

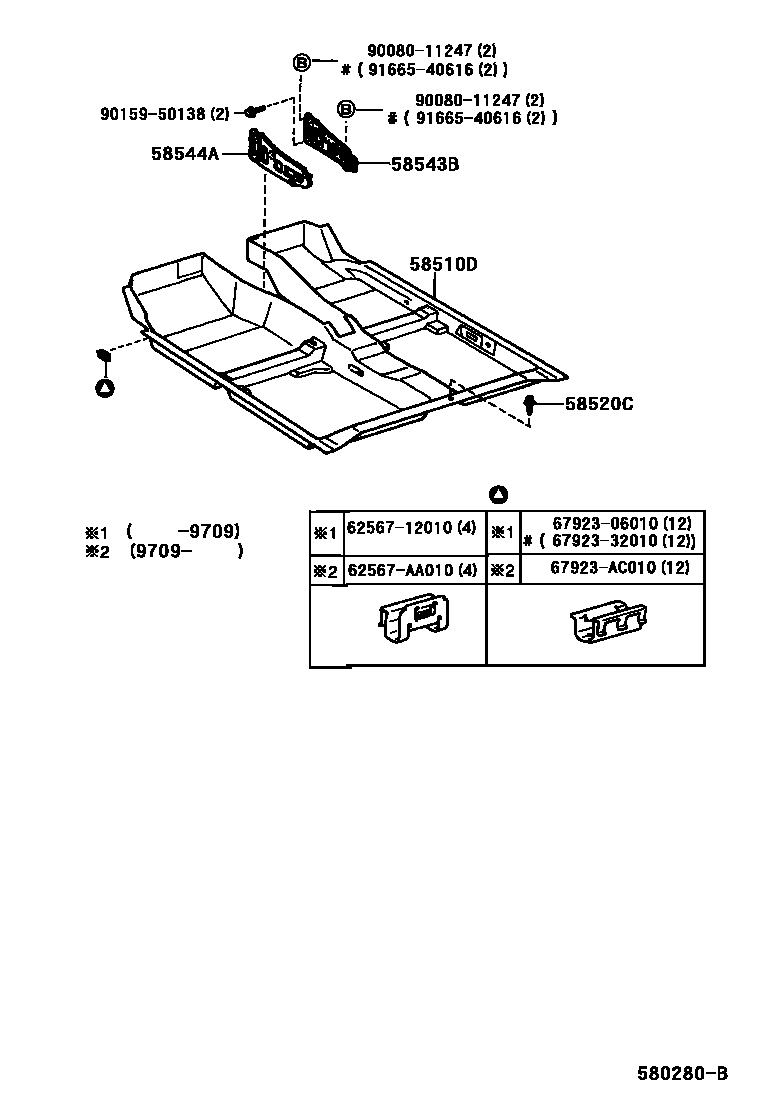

12 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota AVALON
This section contains 12 genuine Toyota parts for the MAT & CARPET system of the Toyota AVALON. Key components include: CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), BRACKET, FLOOR CARPET, RH, BRACKET, FLOOR CARPET, LH, COVER, QUARTER TRIM, REAR LOWER RH.
