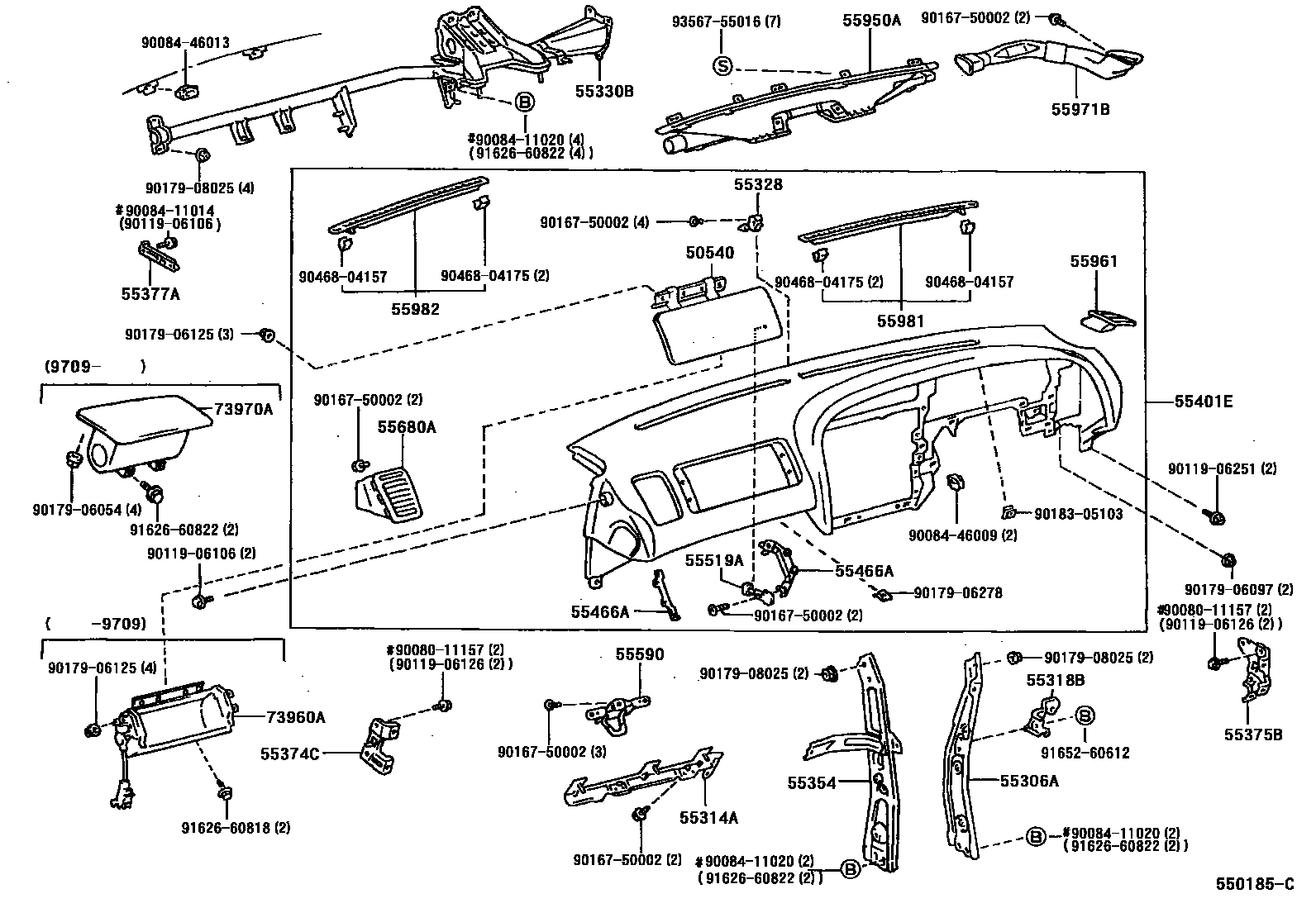

Toyota AVALON — INSTRUMENT PANEL & GLOVE COMPARTMENT
50540DO0R ASSY, AIRBAG PASSENGER
3.0G,DK. ADOBE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55314APANEL, INSTRUMENT, LOWER CENTER
55318BEXTENSION, INSTRUMENT PANEL
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55354BRACE, INSTRUMENT PANEL TO FLOOR
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
3.0G,DK. ADOBE,TRIM4#
ROSE STONE,TRIM4#
DK. ADOBE,TRIM4#
55466ARETAINER, INSTRUMENT PANEL SAFETY PAD
55519ASUPPORT, AIRBAG PASSENGER DOOR
3.0G
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680AREGISTER ASSY, INSTRUMENT PANEL, NO.4
ADOBE,TRIM4#
ROSE STONE,TRIM4#
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
DK. ADOBE,TRIM4#
ROSE STONE,TRIM4#
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
3.0G
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
ROSE STONE,TRIM4#
9008011157
main90080-11157
9008411014
main90084-11014
9008411020
main90084-11020
9008446009
main90084-46009
9008446013
main90084-46013
9011906106
main90119-06106
9011906126
main90119-06126
9011906251
main90119-06251
9016750002
main90167-50002
9017906054
main90179-06054
9017906097
main90179-06097
9017906125
main90179-06125
9017906278
main90179-06278
9017908025
main90179-08025
9018305103
main90183-05103
9046804157
main90468-04157
9046804175
main90468-04175
9162660818
main91626-60818
9162660822
main91626-60822
9165260612
main91652-60612
9356755016
main93567-55016
44 parts on this diagram · 2 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota AVALON
This section contains 77 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota AVALON. Key components include: DO0R ASSY, AIRBAG PASSENGER, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL, INSTRUMENT, LOWER CENTER, EXTENSION, INSTRUMENT PANEL, PIN, INSTRUMENT PANEL, NO.1.
