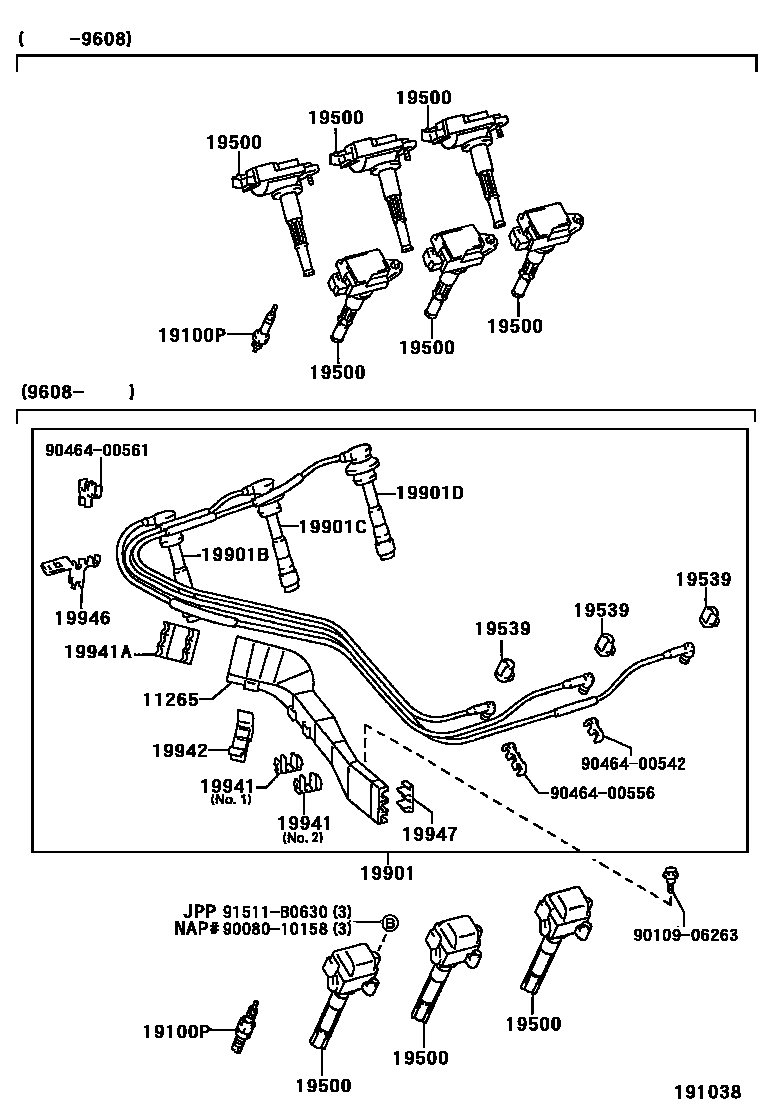

Toyota AVALON — IGNITION COIL & SPARK PLUG / GLOW PLUG
11265COVER, COIL & RESISTIVE CORD, UPR
19100PPLUG, SPARK
19500COIL ASSY, IGNITION
19539HOLDER, RESISTIVE CODE, NO.4
19901CORD SET, COIL & SPARK, W/RESISTIVE
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19941CLAMP, RESISTIVE CORD, NO.1
19941ACLAMP(FOR RESISTIVE CORD)
19942CLAMP, RESISTIVE CORD, NO.2
19946CLAMP, RESISTIVE CORD, NO.3
19947CLAMP, RESISTIVE CORD, NO.4
9008010158
main90080-10158
9010906263
main90109-06263
9046400542
main90464-00542
9046400556
main90464-00556
9046400561
main90464-00561
91511B0630
main91511-B0630
19 parts on this diagram · 1 diagram in section
IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota AVALON
This section contains 19 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota AVALON. Key components include: COVER, COIL & RESISTIVE CORD, UPR, PLUG, SPARK, COIL ASSY, IGNITION, HOLDER, RESISTIVE CODE, NO.4, CORD SET, COIL & SPARK, W/RESISTIVE.
