Toyota AVALON — HEADLAMP

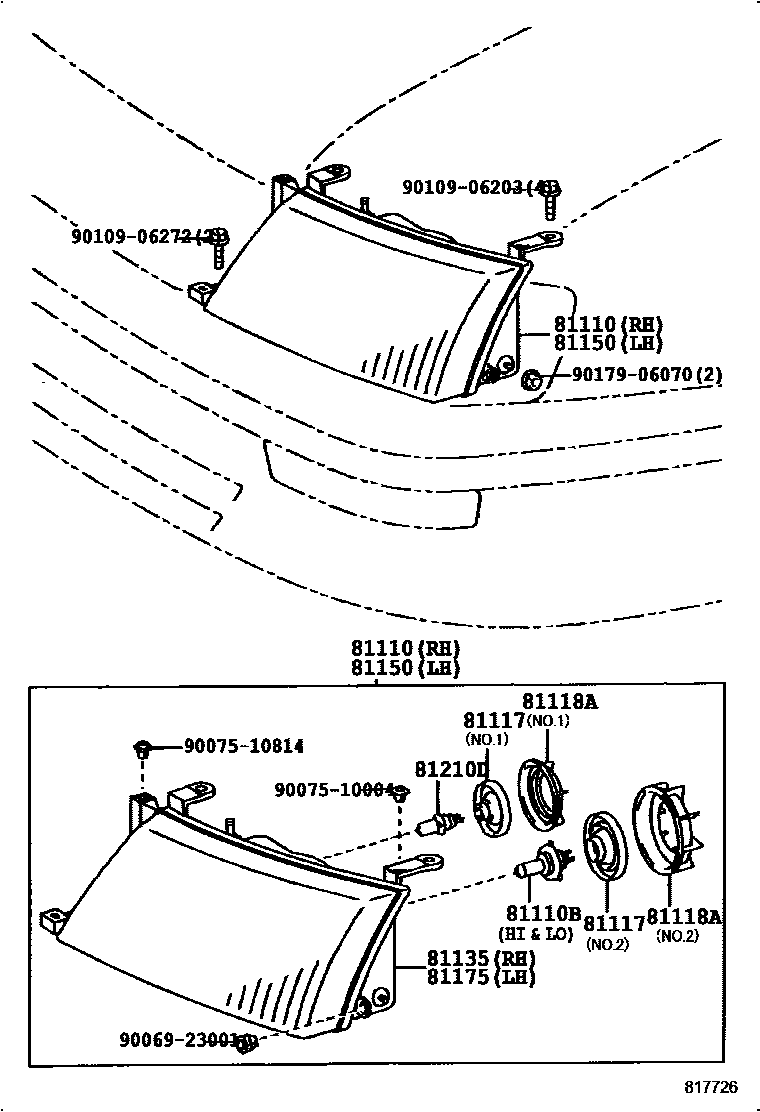

Parts diagram

81110HEADLAMP ASSY, RH

main81110-07020i199503-199709

main81110-AC020i199709

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2i199709

main90981-22003×2i199503-199709

81117PACKING, HEADLAMP HOUSING

main81117-07010×2i199503-199709

main81117-07020×2i199503-199709

81118ABRACKET, HEADLAMP, RH

main81118-07010×2i199503-199709

main81118-07020×2i199503-199709

81135UNIT ASSY, HEADLAMP, RH

main81130-07020i199503-199709

main81130-AC020i199709

81150HEADLAMP ASSY, LH

main81150-07020i199503-199709

main81150-AC020i199709

81175UNIT ASSY, HEADLAMP, LH

main81170-07020i199503-199709

main81170-AC020i199709

81210DBULB, FOG LAMP

main90981-13041×2i199503-199709

9006923001

main90069-23001

9007510004

main90075-10004

9007510814

main90075-10814

9010906203

main90109-06203

9010906272

main90109-06272

9017906070

main90179-06070

14 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota AVALON

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota AVALON. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), PACKING, HEADLAMP HOUSING, BRACKET, HEADLAMP, RH.
