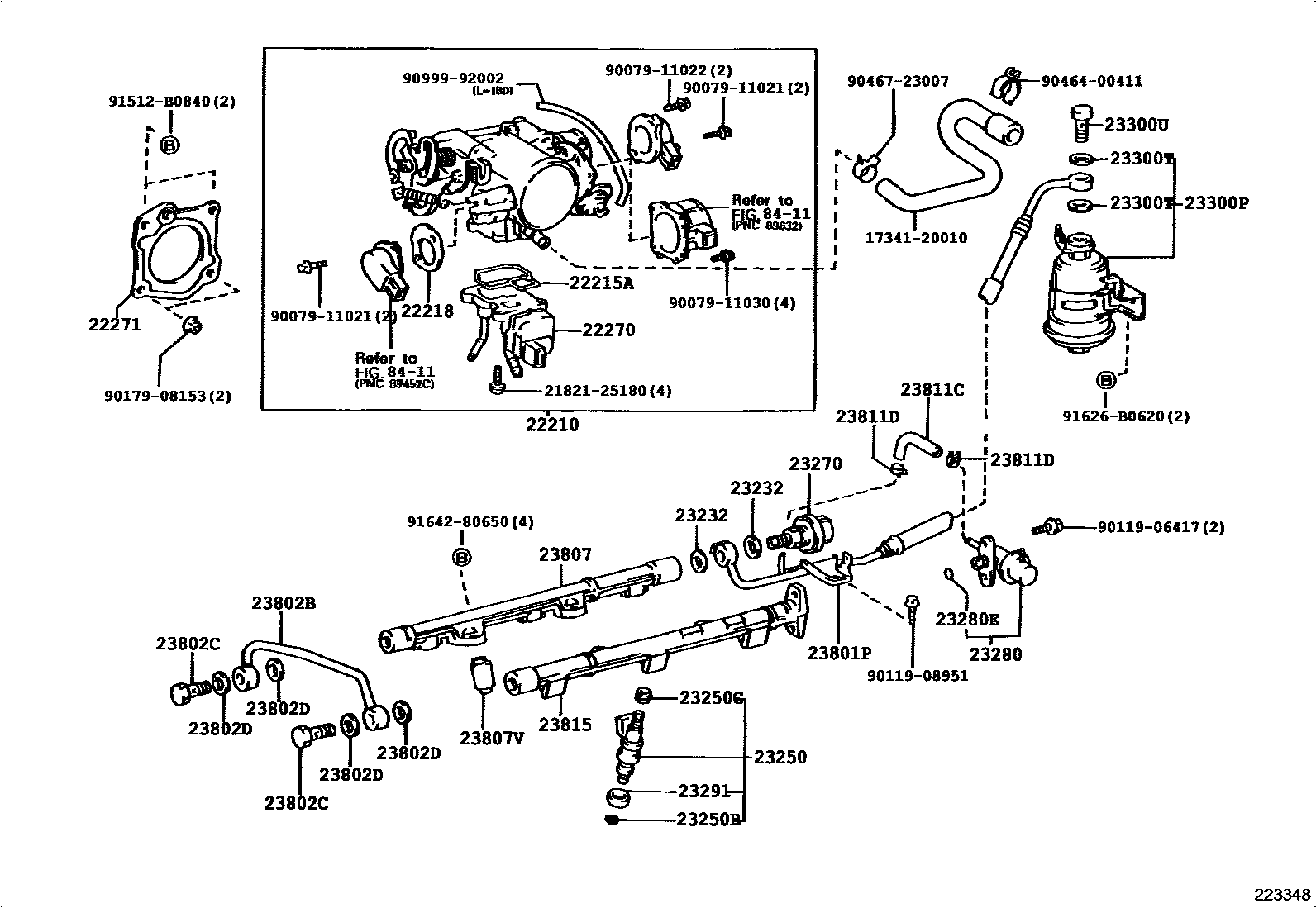

Toyota AVALON — FUEL INJECTION SYSTEM
22215AGASKET, IDLE SPEED CONTROL VALVE
22218COVER(FOR THROTTLE BODY)
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
23811DCLIP, HOSE(FOR FUEL HOSE)
23815PIPE, FUEL DELIVERY, NO.2
8411TRACTION CONTROL
1734120010HOSE, NO.1(FOR AIR INJECTION SYSTEM)
main17341-20010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911021
main90079-11021
9007911022
main90079-11022
9007911030
main90079-11030
9011906417
main90119-06417
9011908951
main90119-08951
9017908153
main90179-08153
9046400411
main90464-00411
9046723007
main90467-23007
9099992002
main90999-92002
91512B0840
main91512-B0840
91626B0620
main91626-B0620
9164280650
main91642-80650
40 parts on this diagram · 6 diagrams in section
FUEL INJECTION SYSTEM for Toyota AVALON
This section contains 79 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota AVALON. Key components include: BODY ASSY, THROTTLE, GASKET, IDLE SPEED CONTROL VALVE, COVER(FOR THROTTLE BODY), VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY), GASKET, THROTTLE BODY.
