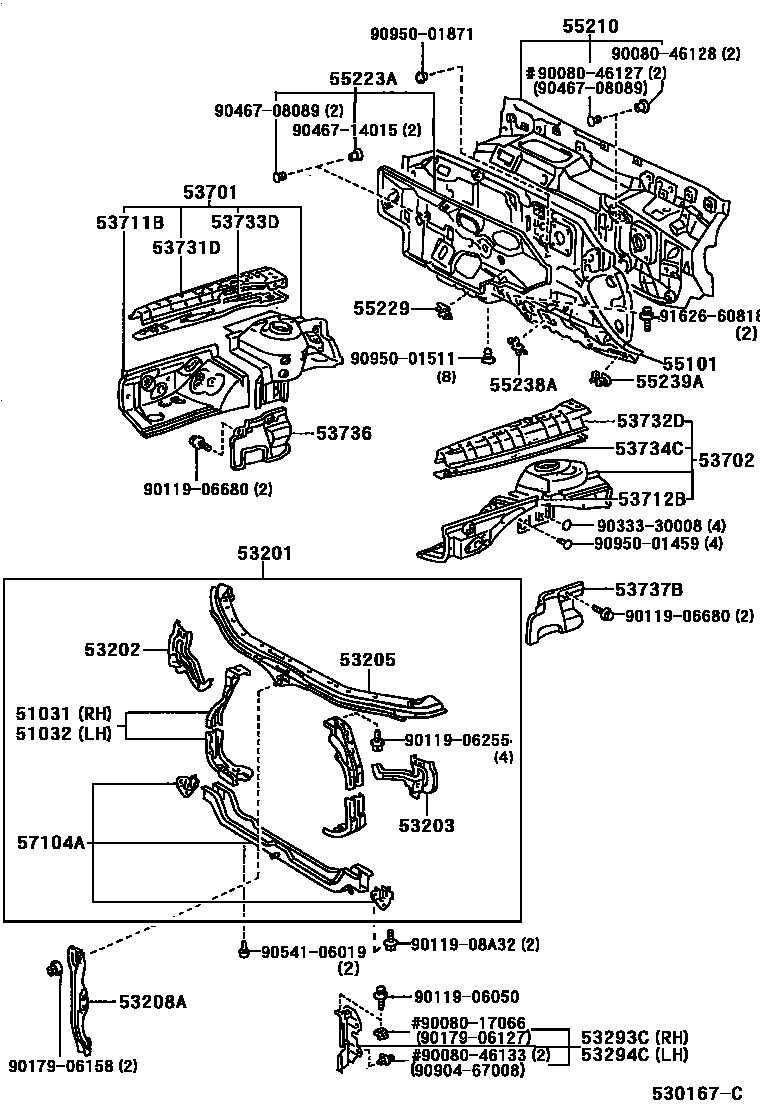

Toyota AVALON — FRONT FENDER APRON & DASH PANEL

51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH

main51031-07010iMCX10199503

51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH

main51032-07010iMCX10199503

53201SUPPORT SUB-ASSY, RADIATOR

main53201-07900iMCX10199503-199709

main53201-07901iMCX10199709

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-07010iMCX10199503

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-07010iMCX10199503

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-07010iMCX10199503-199709

main53205-07020iMCX10199709

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-07010iMCX10199503-200002

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-06010iMCX10199503-199702

main53293-AA010iMCX10199702

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-06010iMCX10199503-199702

main53294-AA010iMCX10199702

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-06030iMCX10199503-199608

sub53701-06050

sub82817-06020

main53701-06040iMCX10199608-199809

main53701-06041iMCX10199809-199812

main53701-06042iMCX10199812

sub53701-06043

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-06010iMCX10199503-199608

main53702-06040iMCX10199608-199809

main53702-06041iMCX10199809

sub53702-06042

53711BAPRON, FRONT FENDER, FRONT RH

main53711-06040iMCX10199608-199812

main53711-06041iMCX10199812

main53711-06900iMCX10199503-199608

sub82817-06020

53712BAPRON, FRONT FENDER, FRONT LH

main53712-06010iMCX10199503

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-06011iMCX10199503

sub53731-06050

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-06011iMCX10199503

sub53732-06040

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06900iMCX10199608

main53733-33900iMCX10199503-199608

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06900iMCX10199709

main53734-33900iMCX10199503-199608

53736SEAL, FRONT FENDER APRON, RH

main53736-06010iMCX10199503-199604

main53736-06020iMCX10199604-199803

main53736-08010iMCX10199803

53737BSEAL, FRONT FENDER APRON, LH

main53737-06010iMCX10199503-199803

main53737-08010iMCX10199803

55101PANEL SUB-ASSY, DASH

main55101-07040iMCX10199503-199709

main55101-07050iMCX10199709

55210INSULATOR ASSY, DASH PANEL

main55210-AC020iMCX10199503

55223AINSULATOR, DASH PANEL, OUTER

main55223-33020iMCX10199503

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-33010iMCX10199503

55238APLATE, DASH PANEL INSULATOR, NO.2

main55238-33010×3iMCX10199503

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-33010×2iMCX10199503

sub55239-33020

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-33010iMCX10199503-199709

main57104-33020iMCX10199709

9008017066

main90080-17066

9008046127

main90080-46127

9008046128

main90080-46128

9008046133

main90080-46133

9011906050

main90119-06050

9011906255

main90119-06255

9011906680

main90119-06680

9011908A32

main90119-08A32

9017906127

main90179-06127

9017906158

main90179-06158

9033330008

main90333-30008

9046708089

main90467-08089

9046714015

main90467-14015

9054106019

main90541-06019

9090467008

main90904-67008

9095001459

main90950-01459

9095001511

main90950-01511

9095001871

main90950-01871

9162660818

main91626-60818

45 parts on this diagram · 1 diagram in section
