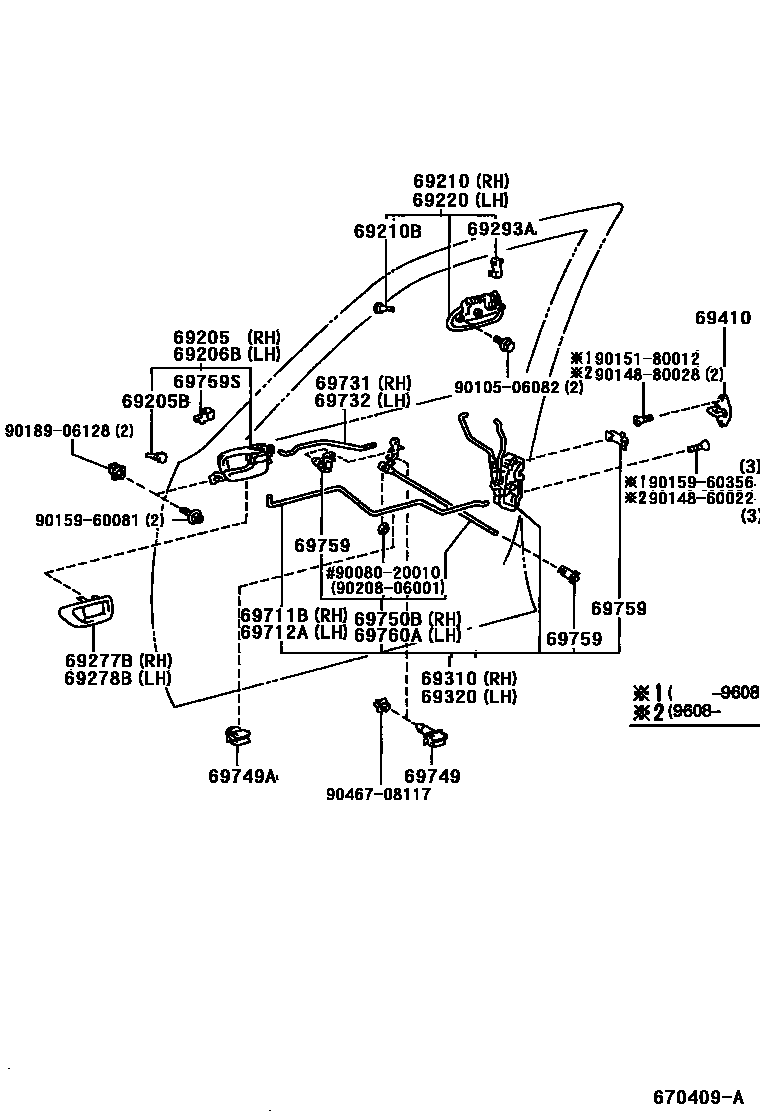

Toyota AVALON — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SU.WHITE PM,28Y
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L3
SU.WHITE PM,051
DK.TEAL GREEN MC.,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SU.WHITE PM,28Y
DK.GREEN M.M.,6P2
DK.TEAL GREEN MC,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
sub69711-AC011
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
sub69712-AC011
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
9008020010
main90080-20010
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015180012
main90151-80012
9015960081
main90159-60081
9015960356
main90159-60356
9018906128
main90189-06128
9020806001
main90208-06001
9046708117
main90467-08117
32 parts on this diagram · 1 diagram in section
