Toyota AVALON — FRONT AXLE HUB

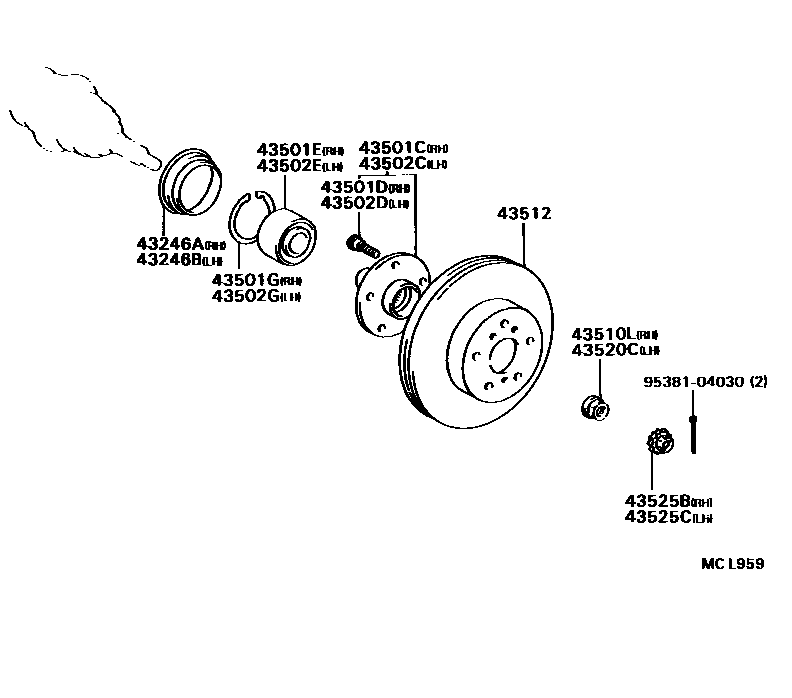

Parts diagram

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-AC020i199503

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-AC020i199503

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-06020i199503

main43502-33010i199503

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049i199503

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36021i199503-199608

main90080-36021i199608

main90080-36078i199503-199608

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001i199503

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-06020i199503

main43502-33010i199503

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049i199503

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36021i199503-199608

main90080-36021i199608

main90080-36078i199503-199608

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001i199503

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001i199808

main90179-22020i199503-199808

43512DISC, FRONT

main43512-06020i199503-199709

main43512-06030i199709

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001i199808

main90179-22020i199503-199808

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030i199503

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030i199503

9538104030

main95381-04030

16 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota AVALON

This section contains 16 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota AVALON. Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
