Toyota AVALON — ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89539DBRACKET, COMPUTER
89539FBRACKET, COMPUTER
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906005
main90119-06005
9017906070
main90179-06070
9043012005
main90430-12005
9331915010
main93319-15010

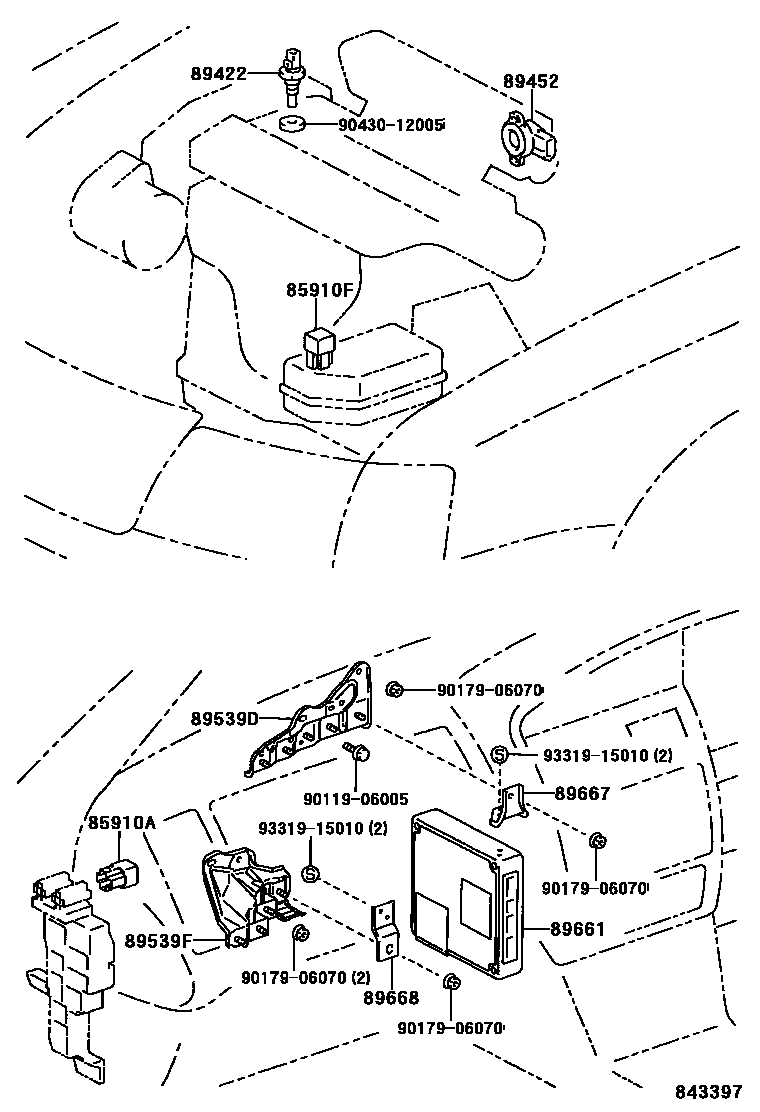

13 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota AVALON
This section contains 13 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota AVALON. Key components include: RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), SENSOR, WATER TEMPERATURE (FOR E.F.I.), SENSOR, THROTTLE POSITION (FOR E.F.I.), BRACKET, COMPUTER.
