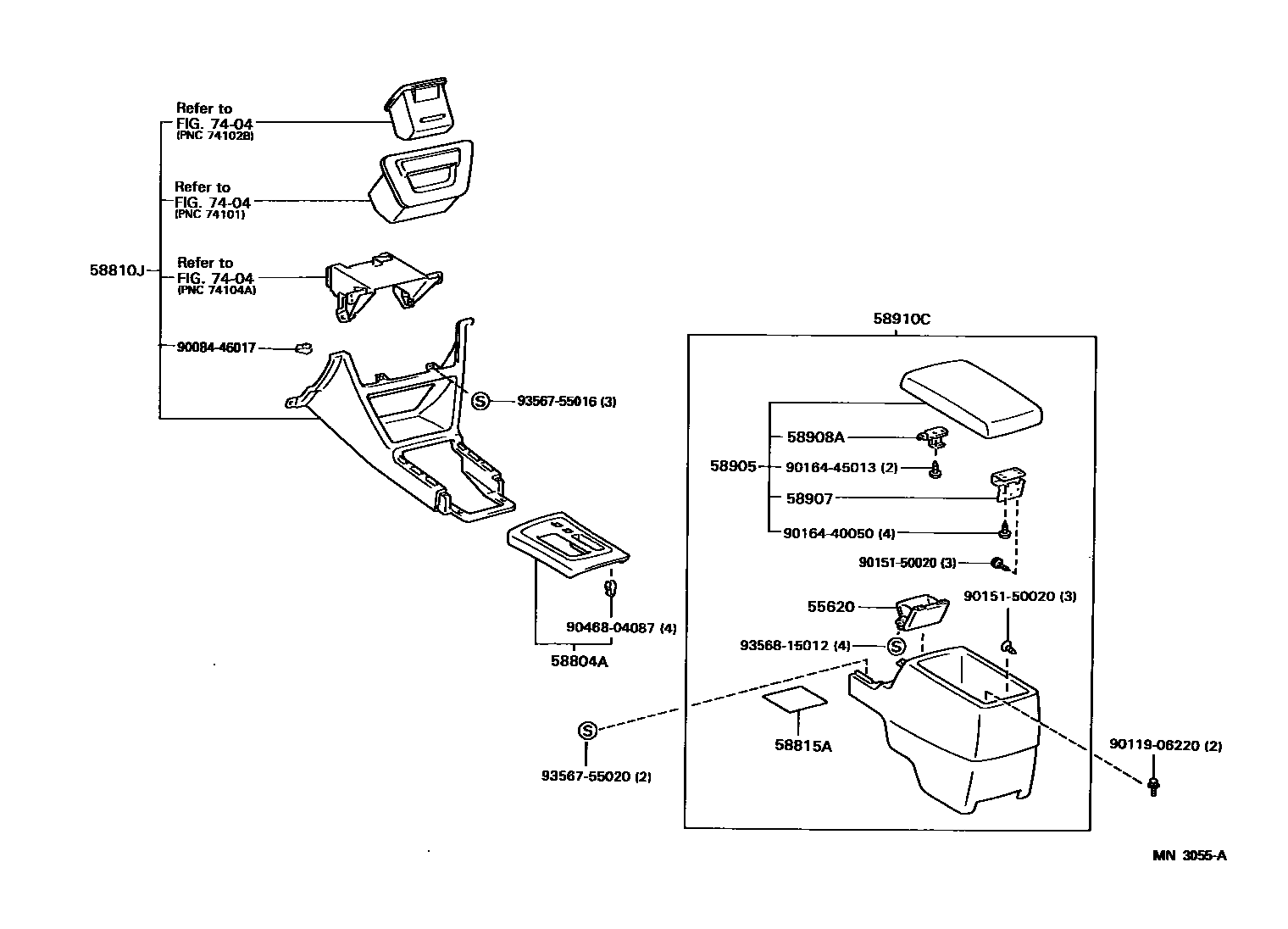

Toyota AVALON — CONSOLE BOX & BRACKET

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-AC010-E0iMCX10199709

QUARTZ,TRIM4#

main55620-AC010-E1iMCX10199503-199709

LT. ADOBE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-AC030iMCX10199503-199709

main58804-AC031iMCX10199709

58810JBOX ASSY, CONSOLE

main58810-AC020-E0iMCX10199709

QUARTZ,TRIM4#

main58810-AC020-E1iMCX10199503-199709

ADOBE,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-AC020iMCX10199503

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-AC020-E2iMCX10199503-199608

ADOBE,TRIM4#

main58905-AC030-E0iMCX10199503-199709

main58905-AC030-E1iMCX10199709

main58905-AC040-E1iMCX10199709

QUARTZ,TRIM4#

main58905-AC040-E2iMCX10199608-199709

ADOBE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-AC010iMCX10199503

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32020iMCX10199503

sub58908-12080

58910CBOX ASSY, CONSOLE, REAR

main58910-AC020-E2iMCX10199503-199608

ADOBE,TRIM4#

main58910-AC030-E2iMCX10199503-199709

main58910-AC030-E3iMCX10199709

main58910-AC040-E0iMCX10199608-199709

ADOBE,TRIM4#

main58910-AC040-E1iMCX10199709

QUARTZ,TRIM4#

7404

9008446017

main90084-46017

9011906220

main90119-06220

9015150020

main90151-50020

9016440050

main90164-40050

9016445013

main90164-45013

9046804087

main90468-04087

9356755016

main93567-55016

9356755020

main93567-55020

9356815012

main93568-15012

18 parts on this diagram · 1 diagram in section
