Toyota AVALON — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

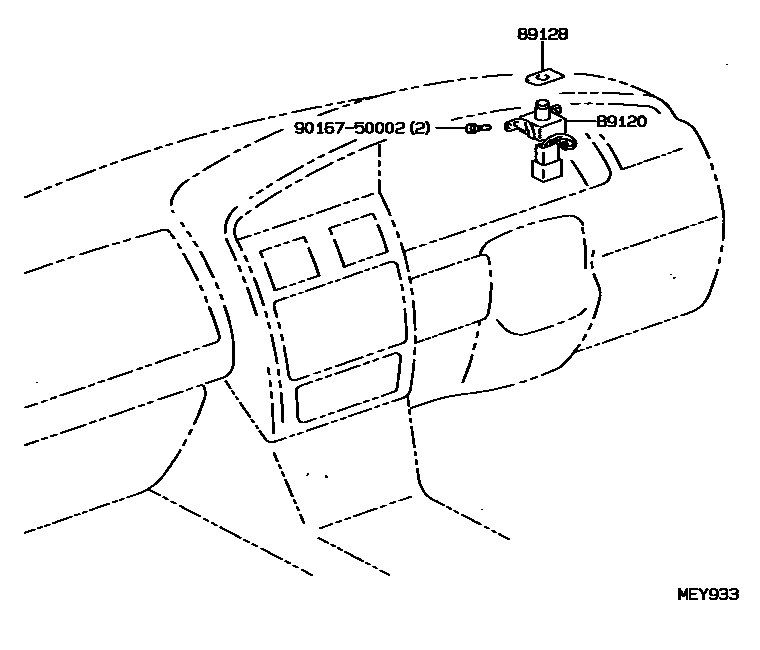

Parts diagram

89120SENSOR, AUTOMATIC LIGHT CONTROL

main89120-41020i199503

89128NUT, CONLIGHT SCANNER

main89128-41020-E0i199503-199709

DK. ADOBE,TRIM4#

main89128-41020-E1i199709

ROSE STONE,TRIM4#

9016750002

main90167-50002

3 parts on this diagram · 1 diagram in section
