Toyota AVALON — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-AC010-E1i199503-199709

ADOBE,TRIM4#

main74210-AC030-E0i199709

ROSE STONE,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-AC010-E1i199503-199709

ADOBE,TRIM4#

main74220-AC030-E0i199709

ROSE STONE,TRIM4#

74230ARMREST ASSY, REAR, RH

main74250-AC010-E1i199503-199709

ADOBE,TRIM4#

main74250-AC010-E2i199709

ROSE STONE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-AC020-E0i199503-199709

ADOBE,TRIM4#

main74231-AC030-E0i199709

ROSE STONE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-AC020-E0i199503-199709

ADOBE,TRIM4#

main74232-AC040-E0i199709

ROSE STONE,TRIM4#

74240ARMREST ASSY, REAR, LH

main74260-AC010-E1i199503-199709

ADOBE,TRIM4#

main74260-AC010-E2i199709

ROSE STONE,TRIM4#

74241PLUG, FRONT DOOR ARMREST, RH

main74241-AC010-E1i199503-199709

ADOBE,TRIM4#

main74241-AC010-E2i199709

ROSE STONE,TRIM4#

74242PLUG, FRONT DOOR ARMREST, LH

main74241-AC010-E1i199503-199709

ADOBE,TRIM4#

main74241-AC010-E2i199709

ROSE STONE,TRIM4#

74248PLUG, REAR DOOR ARMREST, RH

main74241-AC010-E1i199503-199709

ADOBE,TRIM4#

main74241-AC010-E2i199709

ROSE STONE,TRIM4#

74249PLUG, REAR DOOR ARMREST, LH

main74241-AC010-E1i199503-199709

ADOBE,TRIM4#

main74241-AC010-E2i199709

ROSE STONE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-AC010-E1i199503-199709

ADOBE,TRIM4#

main74271-AC010-E2i199709

ROSE STONE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-AC010-E1i199503-199709

ADOBE,TRIM4#

main74272-AC010-E2i199709

ROSE STONE,TRIM4#

74310VISOR ASSY, RH

main74310-AC030-E1i199503-199512

ADOBE,TRIM4#

main74310-AC040-E1i199503-199512

3.0G,ADOBE,TRIM4#

main74310-AC090-E0i199512-199704

ADOBE,TRIM4#

main74310-AC140-E0i199704-199709

ADOBE,TRIM4#

main74310-AC142-E2i199709-199712

QUARTZ,TRIM4#

main74310-AC143-E2i199712

QUARTZ,TRIM4#

main74310-AC152-E1i199709-199712

main74310-AC153-E1i199712

74317COVER, VISOR BRACKET, RH

main74317-AC010-E0i199709

QUARTZ,TRIM4#

main74317-AC010-E1i199503-199709

LT. ADOBE,TRIM4#

74318COVER, VISOR BRACKET, LH

main74317-AC010-E0i199709

QUARTZ,TRIM4#

main74317-AC010-E1i199503-199709

LT. ADOBE,TRIM4#

74320VISOR ASSY, LH

main74320-AC030-E1i199503-199704

ADOBE,TRIM4#

main74320-AC040-E1i199503-199512

3.0G,ADOBE,TRIM4#

main74320-AC090-E0i199512-199704

main74320-AC140-E0i199704-199709

ADOBE,TRIM4#

main74320-AC141-E2i199709-199712

QUARTZ,TRIM4#

main74320-AC142-E2i199712

QUARTZ,TRIM4#

main74320-AC151-E1i199709-199712

main74320-AC152-E1i199712

74348HOLDER, VISOR

main74348-AC010-E0i199709

QUARTZ,TRIM4#

main74348-AC010-E1i199503-199709

LT. ADOBE,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74610-22070-E0i199709

main74610-AC010-E0i199709

QUARTZ,TRIM4#

main74610-AC010-E1i199503-199709

LT. ADOBE,TRIM4#

74612COVER, ASSIST GRIP

main74612-22050-E0i199709

QUARTZ,TRIM4#

74617APLUG, ASSIST GRIP

main74617-AC010-E0i199709

QUARTZ,TRIM4#

main74617-AC010-E1i199503-199709

LT. ADOBE,TRIM4#

74620BGRIP ASSY, ASSIST, REAR

main74610-33060-E0i199709

main74610-AC020-E0i199709

QUARTZ,TRIM4#

main74610-AC020-E1i199503-199709

LT. ADOBE,TRIM4#

74631BHOOK, COAT

main74631-33020-B3i199709

BLUISH GRAY,TRIM4#

main74631-33020-E0i199709

QUARTZ,TRIM43

8121INTERIOR LAMP

→ Go to FIG 81-21

9008235012

main90082-35012

9008446005

main90084-46005

9015960503

main90159-60503

9016840025

main90168-40025

9353015016

main93530-15016

9353045020

main93530-45020

9354054008

main93540-54008

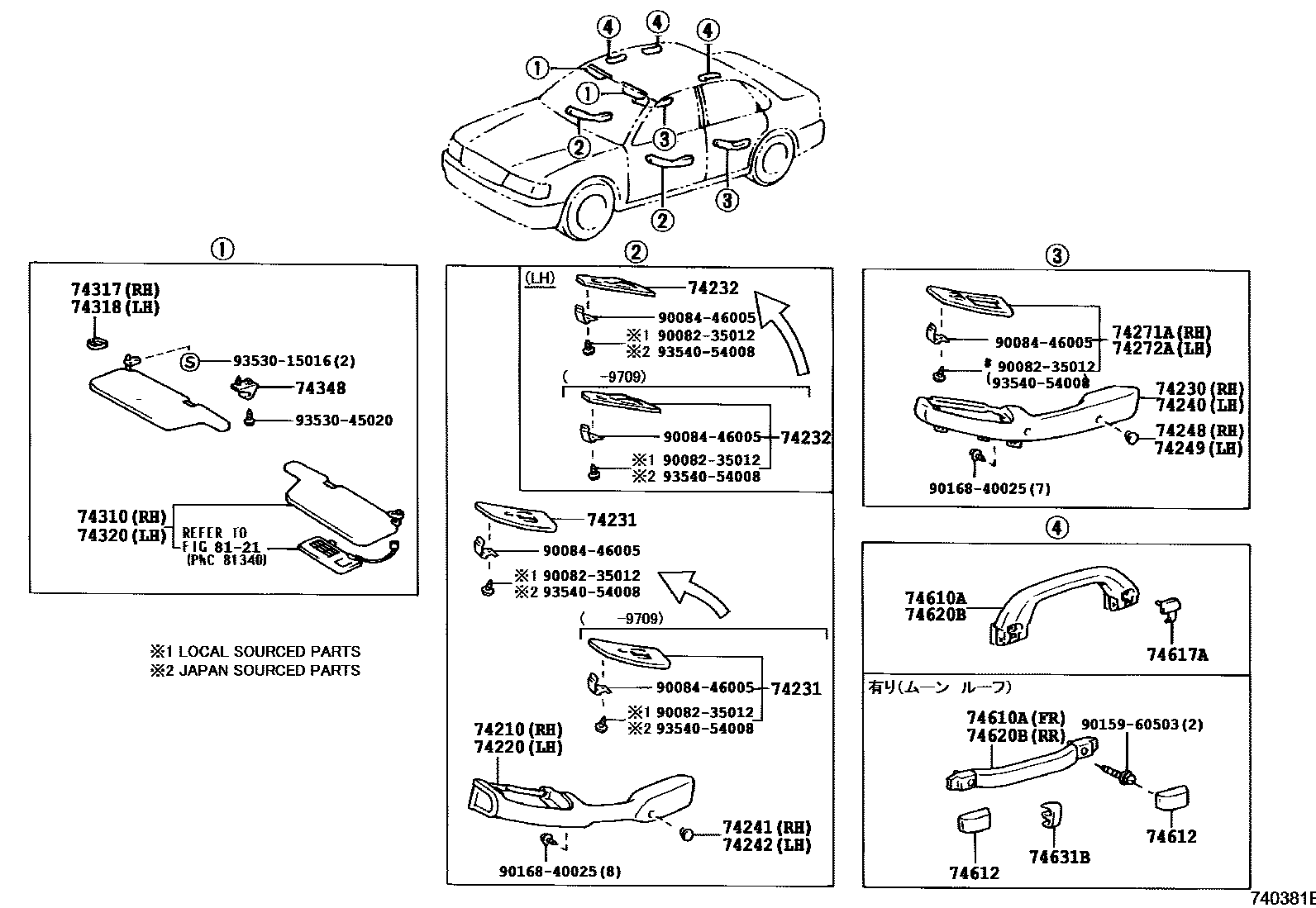

30 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota AVALON

This section contains 30 genuine Toyota parts for the ARMREST & VISOR system of the Toyota AVALON. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
