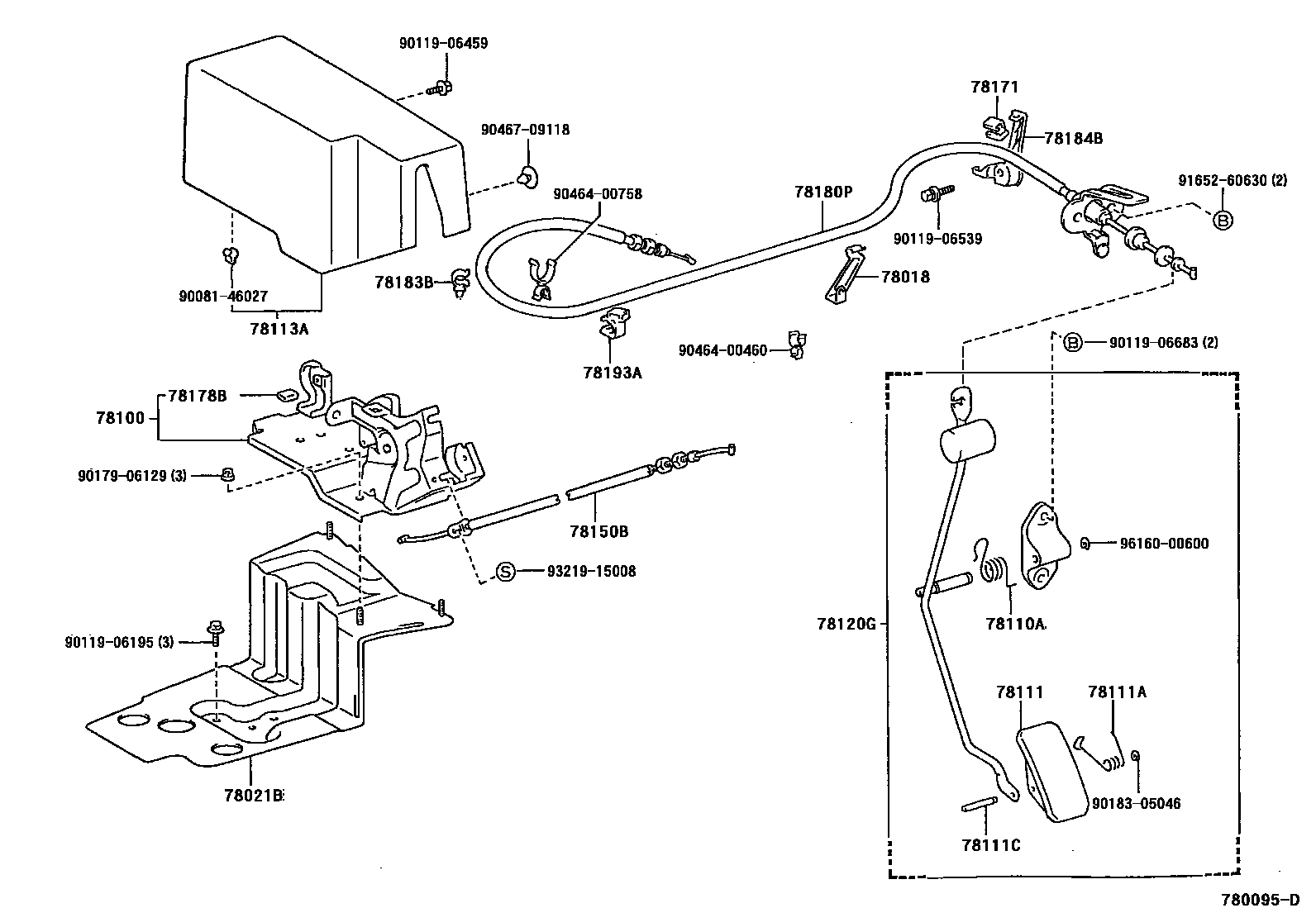

Toyota AVALON — ACCELERATOR LINK

78018BRACKET SUB-ASSY, ACCELERATOR FLEXIBLE WIRE CLAMP

main78018-41010iMCX10199503

78021BBRACKET SUB-ASSY, ACCEL CONTROL BELLCRANK

main78021-33010iMCX10199503-199608

78100LINK ASSY, ACCELERATOR

main78100-33010iMCX10199503-199608

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iMCX10199503

78111PEDAL, ACCELERATOR

main78111-12100iMCX10199503-199709

main78111-22020iMCX10199709

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18046iMCX10199503

78111CPIN (FOR ACCELERATOR PEDAL)

main90241-05022iMCX10199709

main90249-05001iMCX10199503-199709

78113ACOVER, AUTO DRIVE ACCELERATOR LINK

main78113-06010iMCX10199503-199709

78120GROD ASSY, ACCELERATOR PEDAL

main78120-41020iMCX10199503

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-06010iMCX10199612

main78150-33050iMCX10199503-199608

main78150-33080iMCX10199608

78171BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH

main78171-33010iMCX10199503

78178BDAMPER, ACCEL CONTROL NO.4 ROD BRACKET

main78178-14010iMCX10199503-199608

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-06060iMCX10199503-199608

3.0G

main78180-07010iMCX10199503

main78180-07030iMCX10199608-199709

3.0G

main78180-07050iMCX10199709

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-33011iMCX10199503-199608

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-41010iMCX10199503

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-33010iMCX10199503

9008146027

main90081-46027

9011906195

main90119-06195

9011906459

main90119-06459

9011906539

main90119-06539

9011906683

main90119-06683

9017906129

main90179-06129

9018305046

main90183-05046

9046400460

main90464-00460

9046400758

main90464-00758

9046709118

main90467-09118

9165260630

main91652-60630

9321915008

main93219-15008

9616000600

main96160-00600

29 parts on this diagram · 1 diagram in section
